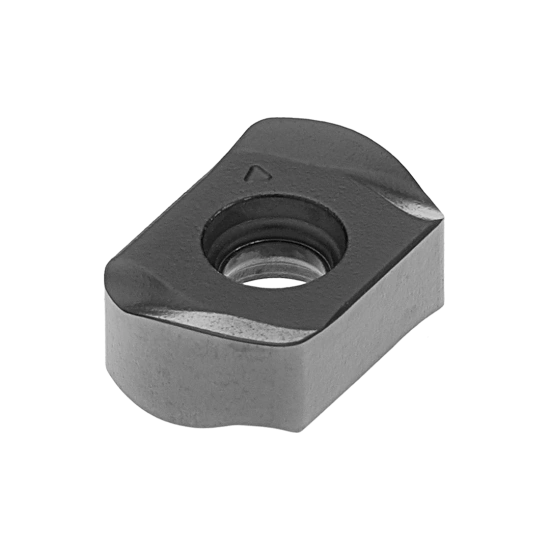

INSERT XNKU 06T310-MP PHS740
1112802T9 | PAST. XNKU 06T310-MP PHS740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
X

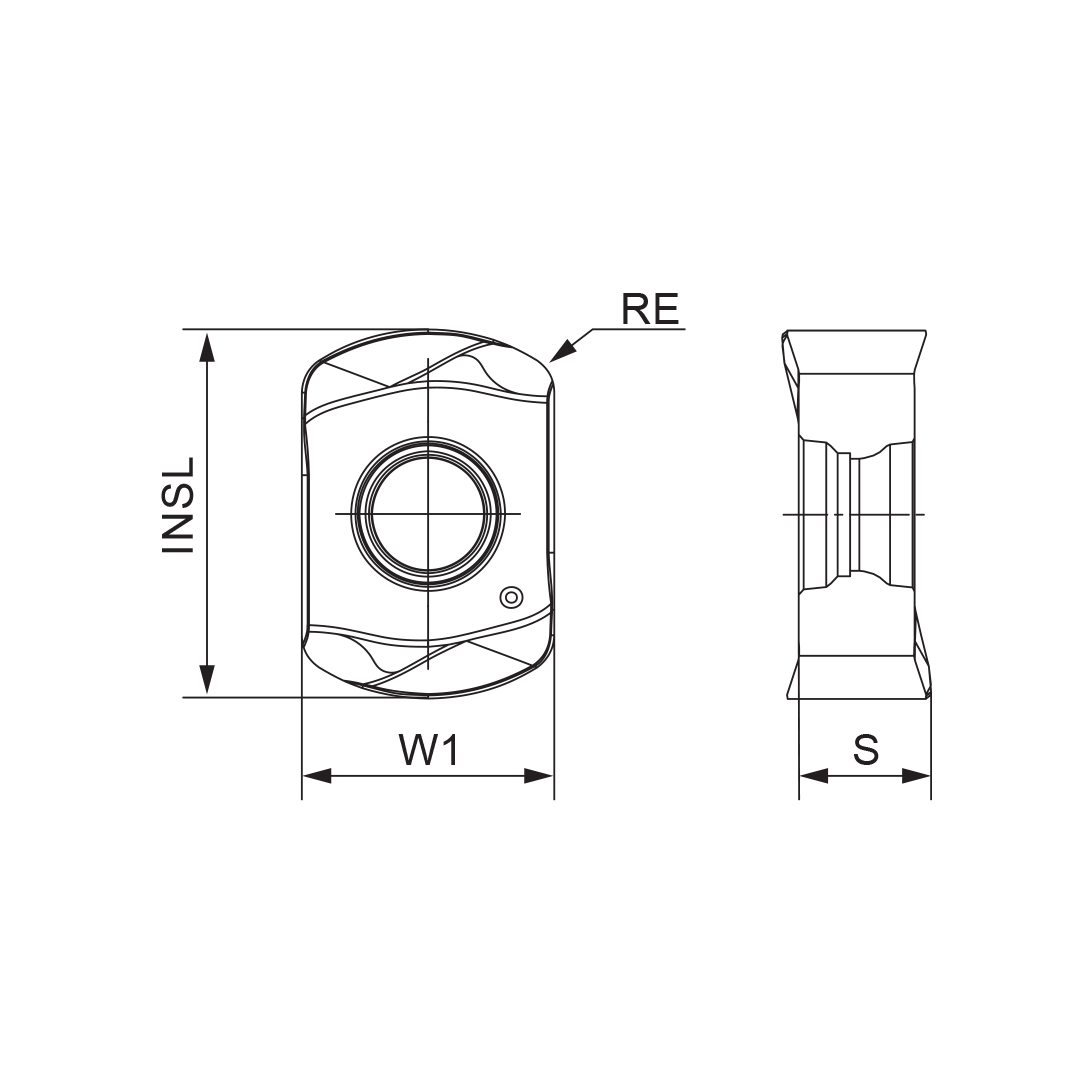

Corner radius (RE)
1 mm
Hand (HAND)
R
Grade (GRADE)
PHS740
Insert thickness (S)
3.6 mm
Wiper edge length (BS)
0 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1181 mm
Insert length (INSL)
6.85 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (80 - 300)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
- M
VC (m/min) (70 - 180)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
- P
VC (m/min) (100 - 220)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
- S
VC (m/min) (30 - 70)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
