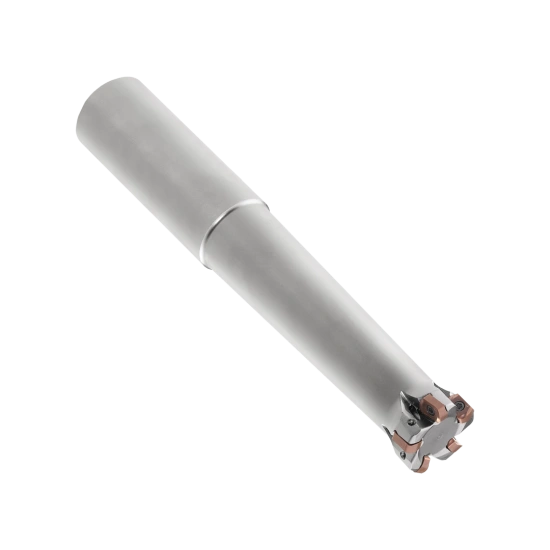

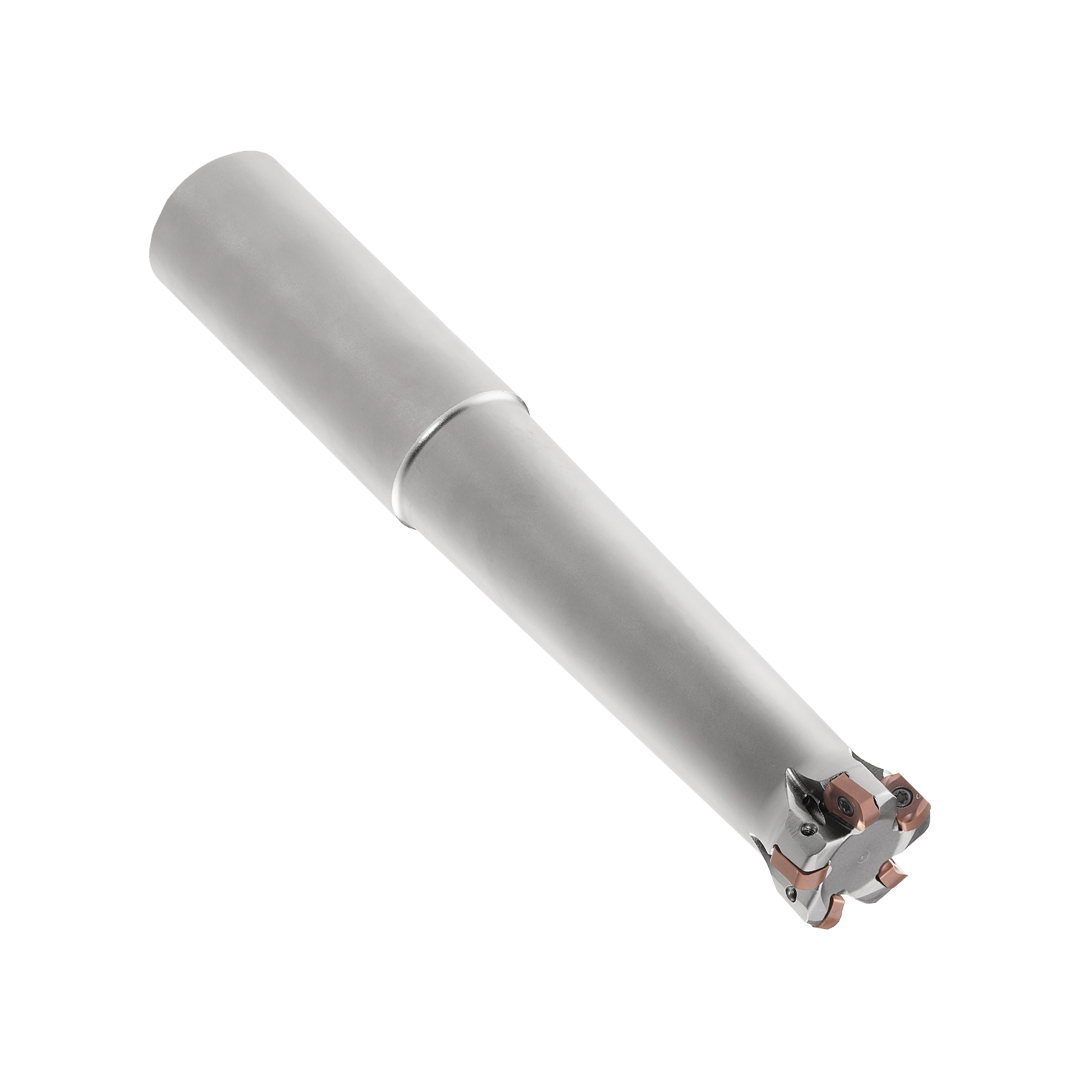

MILLING TOOL 020E16320-03-07-020130
181183800 | FRESA 020E16320-03-07-020130

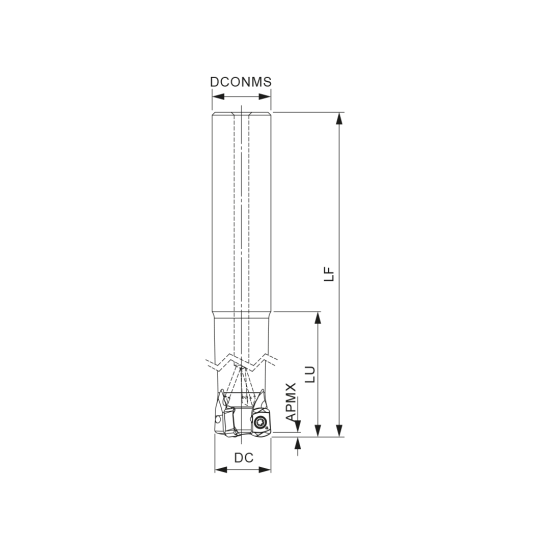

Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
0.0394 mm
Axial rake angle (GAMP)
-7
Connection diameter (DCONMS)
0.79 mm
Adaptive interface machine direction (ADINTMS)
Cylindrical Shank
Cutting diameter (DC)
0.79 mm
Tool cutting edge angle (KAPR)
20
Functional length (LF)
5.12 mm
Usable length (LU)
1.97 mm
Radial rake angle (GAMF)
-15,5
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
0 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
1.2
Spare parts
SCREW P0250704
Article code
290031300
Reference
P0250704
TORX KEY XT08
Article code
290011700
Reference
XT08
