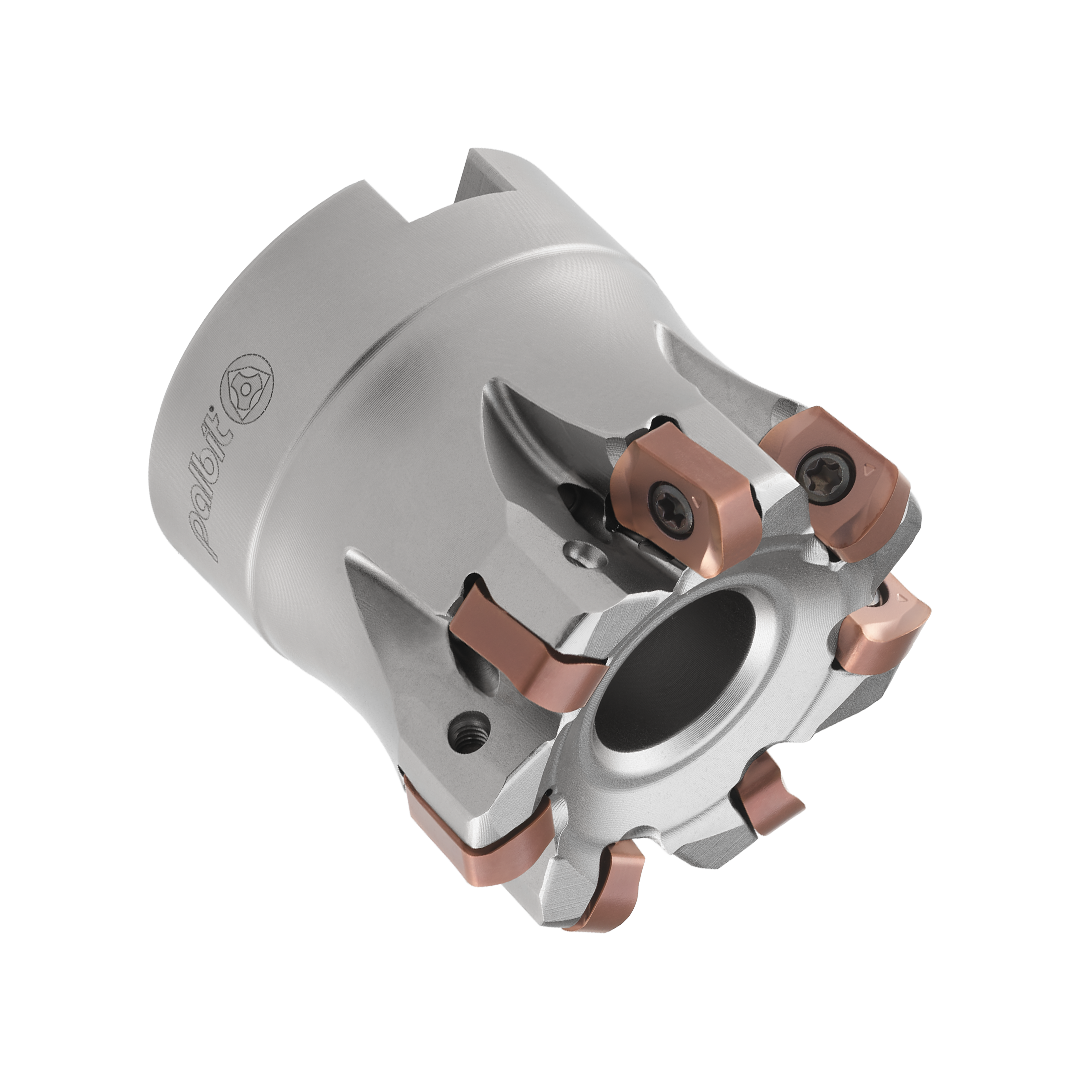

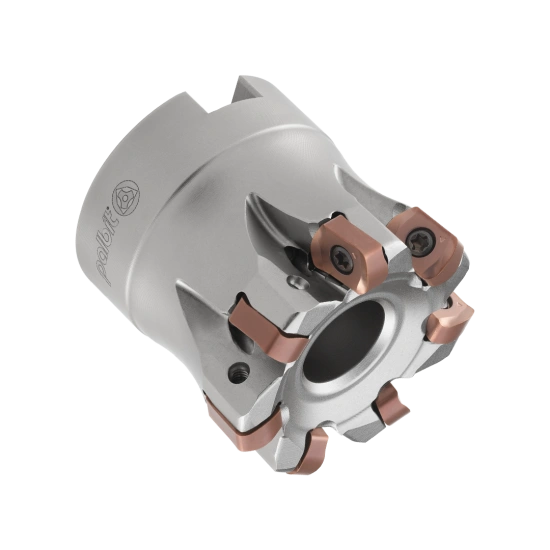

MILLING TOOL 050A16320-08-07-022040

181152400 | FRESA 050A16320-08-07-022040

Product data

Hand (HAND)

Depth of cut maximum (APMX)

0.0394 mm

Axial rake angle (GAMP)

-7

Connection diameter (DCONMS)

0.87 mm

Adaptive interface machine direction (ADINTMS)

Arbor Mounting

Cutting diameter (DC)

1.97 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

1.57 mm

Radial rake angle (GAMF)

-8

Cutting item count (CICT)

Contact surface diameter machine side (DCSFMS)

1.65 mm

Cutting pitch differential (CPDF)

Torque (TQ)

1.2

Article code

290031300

Reference

P0250704

Article code

290011700

Reference

XT08
