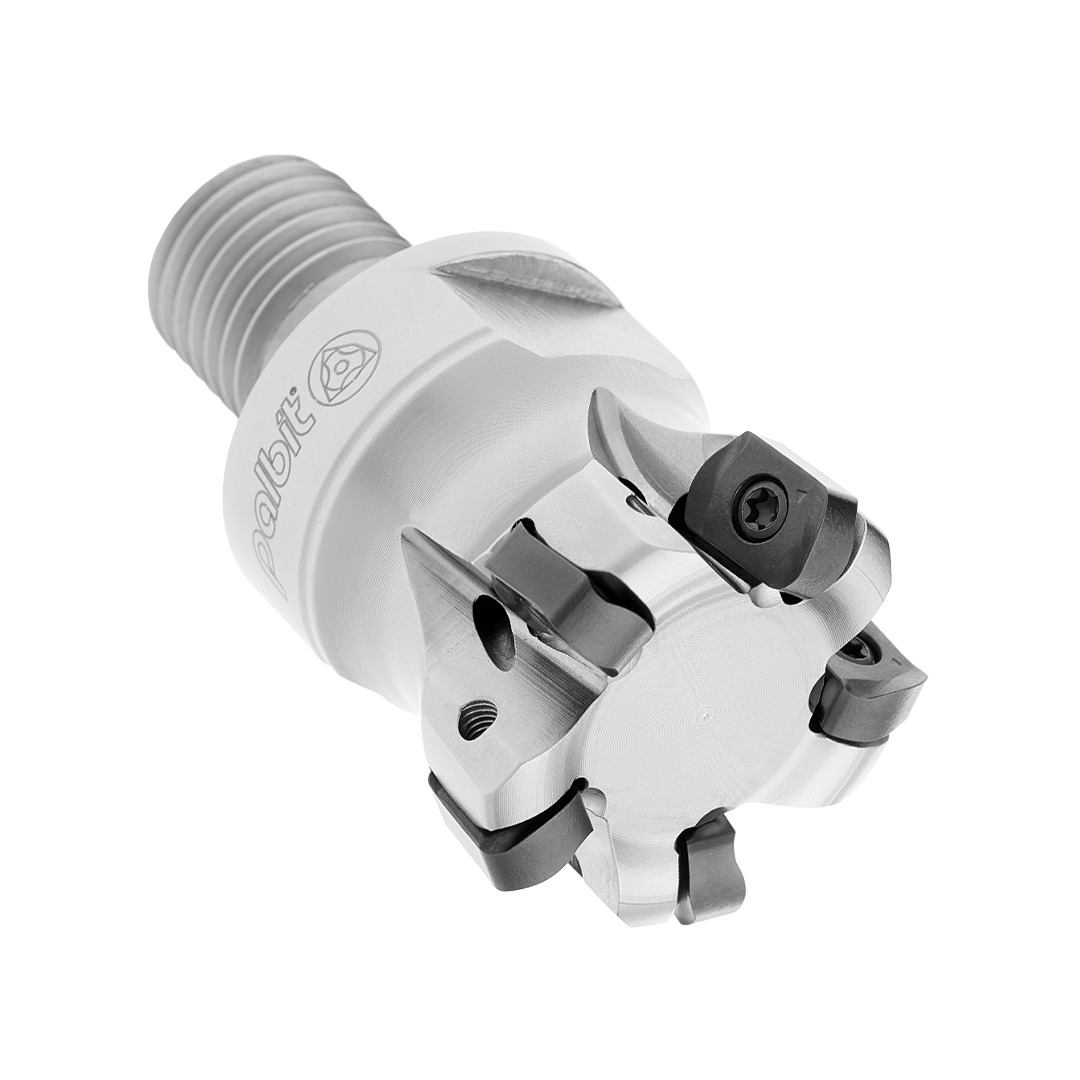

MILLING TOOL 040R16320-05-07-M16045

181151700 | FRESA 040R16320-05-07-M16045

Product data

Hand (HAND)

Depth of cut maximum (APMX)

0.0394 mm

Axial rake angle (GAMP)

-7

Adaptive interface machine direction (ADINTMS)

Threaded Coupling

Cutting diameter (DC)

1.57 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

1.77 mm

Radial rake angle (GAMF)

-10

Cutting item count (CICT)

Contact surface diameter machine side (DCSFMS)

1.14 mm

Cutting pitch differential (CPDF)

Torque (TQ)

1.2

Connection Thread Nominal Size Machine Side (THSZMS)

M16

Article code

290031300

Reference

P0250704

Article code

290011700

Reference

XT08
