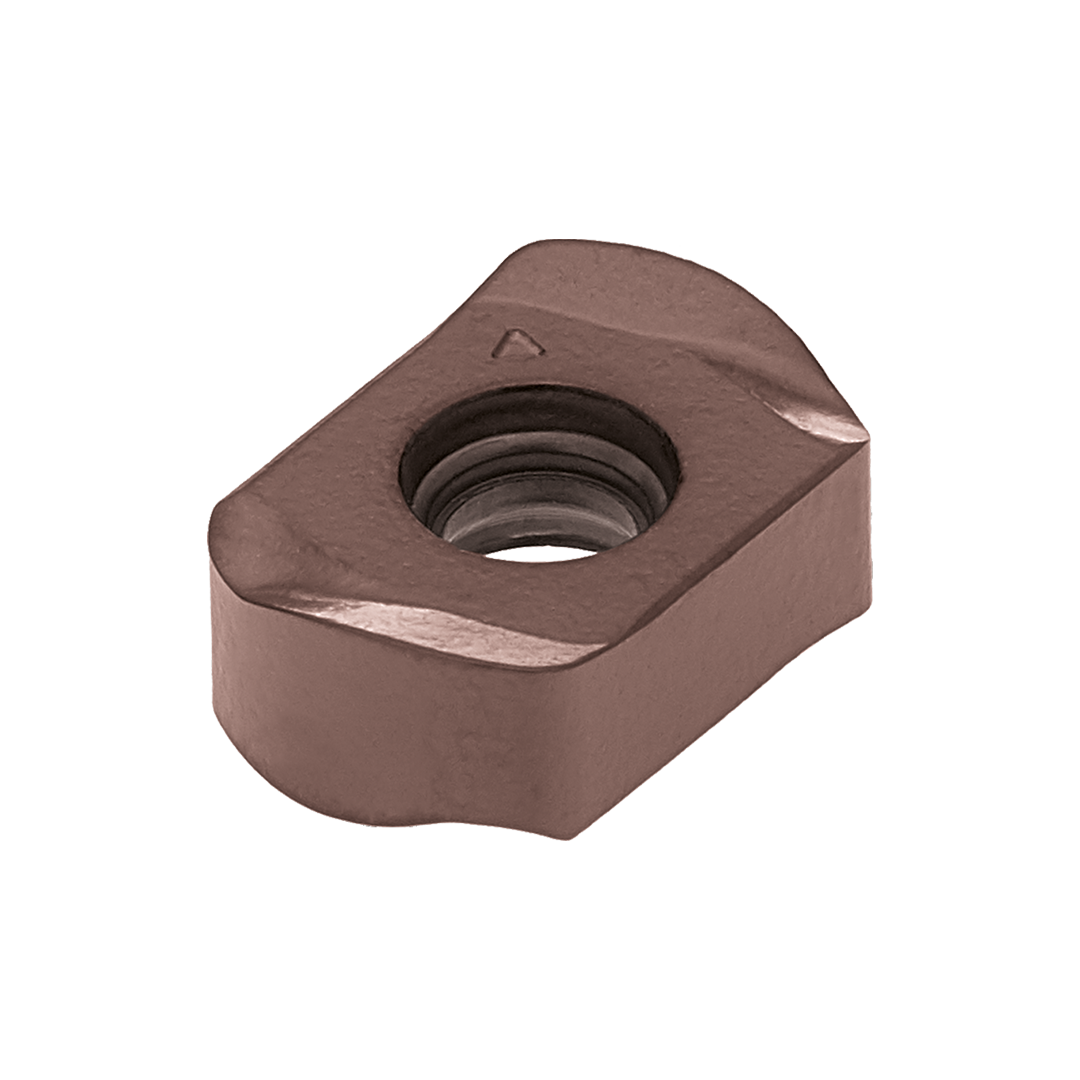

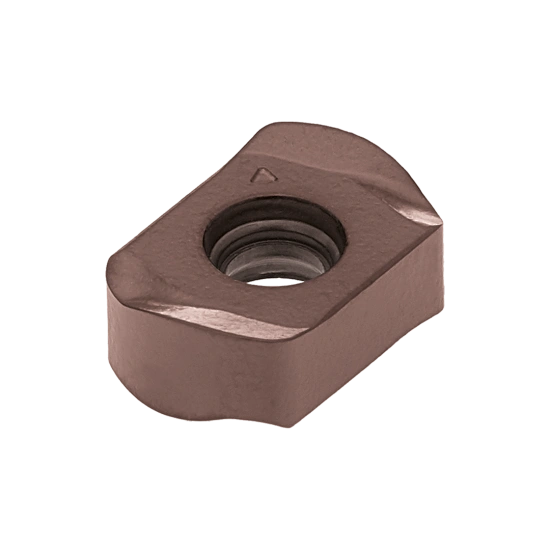

INSERT XNKU 06T310-MP PHH930
1112802X9 | PAST. XNKU 06T310-MP PHH930
Product data
Material classification level 1 (TMC1ISO)
- M
- S
Operation type (CTPT)
High Feed Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
X

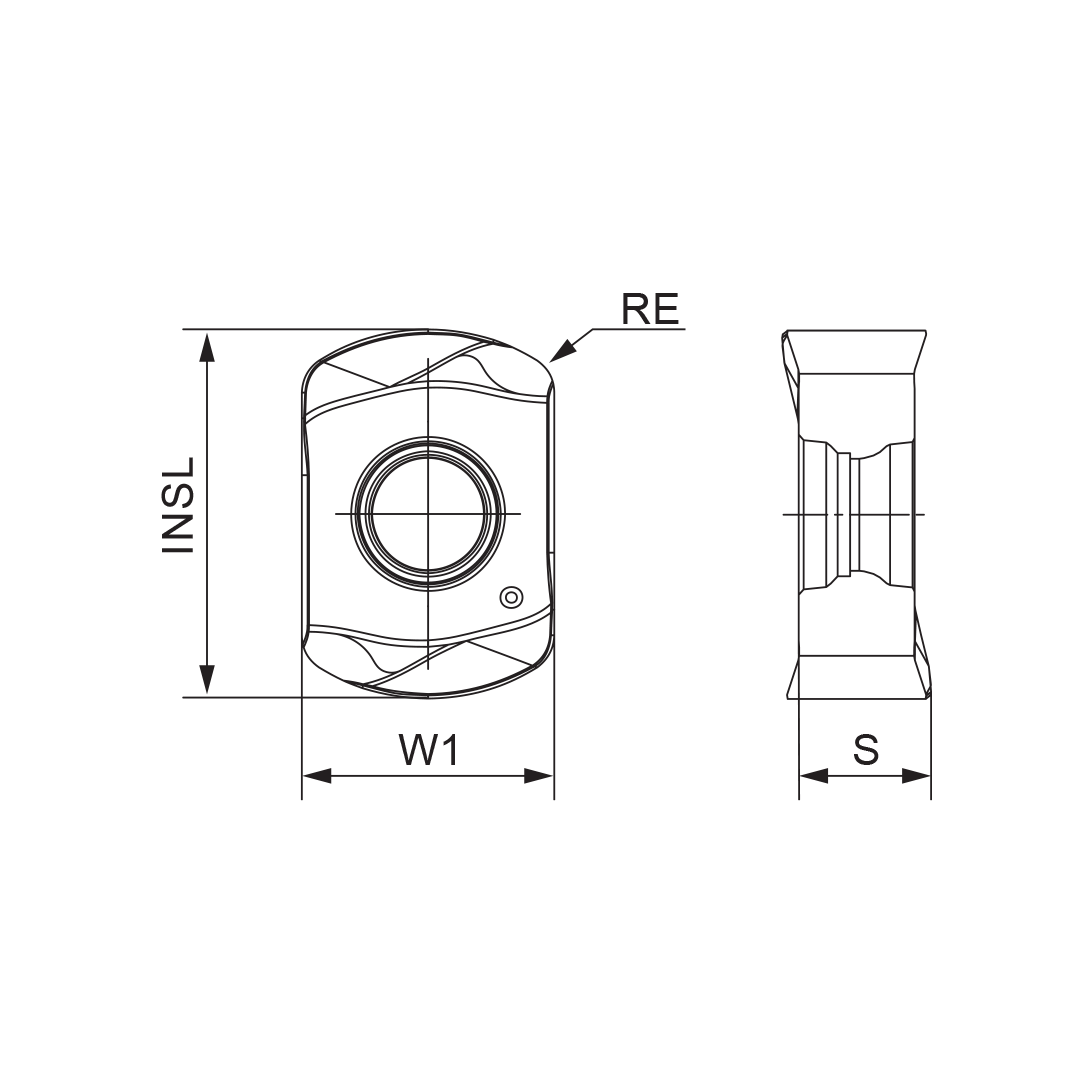

Corner radius (RE)
1 mm
Hand (HAND)
R
Grade (GRADE)
PHH930
Insert thickness (S)
3.6 mm
Wiper edge length (BS)
0 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1181 mm
Insert length (INSL)
6.85 mm
Tolerance class insert (TCINS)
K
Start values
- M
VC (m/min) (100 - 210)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.5)
AP (mm) (0.3 - 1)
- S
VC (m/min) (30 - 75)
FZ (mm/t) (0.5 - 1.3)
AP (mm) (0.3 - 1)
FZ (mm/t) (0.5 - 1.3)
AP (mm) (0.3 - 1)
