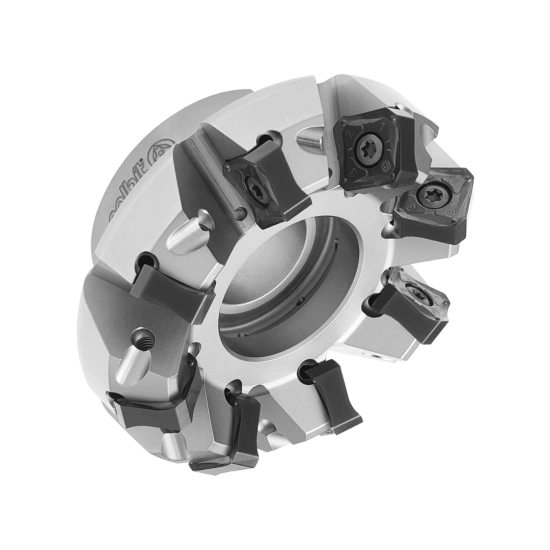

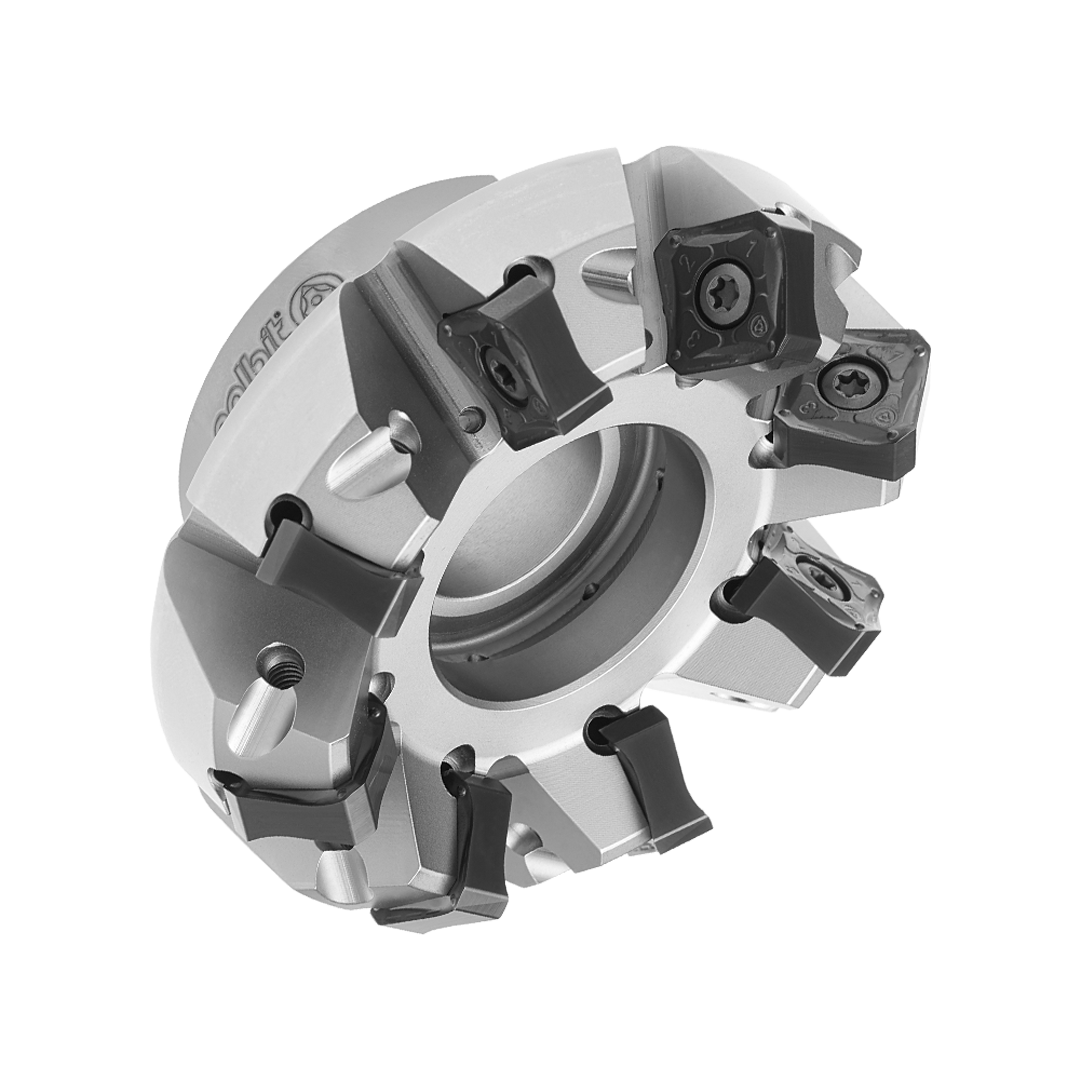

MILLING TOOL 100A91245-07-06-032063
181089200 | FRESA 100A91245-07-06-032063
Product data
Hand (HAND)
R

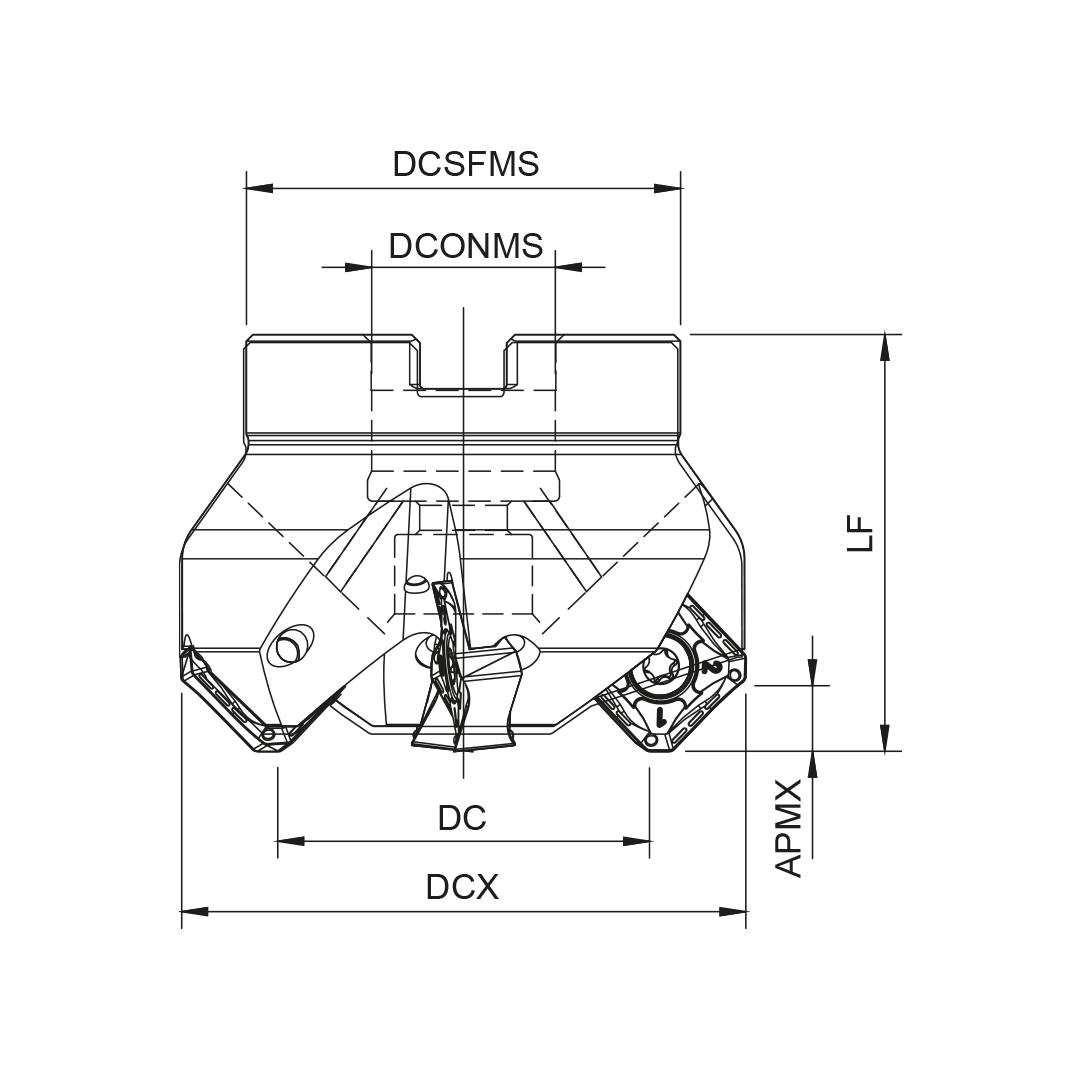

Depth of cut maximum (APMX)
3 mm
Axial rake angle (GAMP)
-6
Connection diameter (DCONMS)
32 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
100 mm
Maximum cutting diameter (DCX)
109.05 mm
Cutting diameter 2 (DC2)
103.6 mm
Maximum cutting diameter 2 (DCX2)
113 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
63 mm
Radial rake angle (GAMF)
-9
Cutting item count (CICT)
7
Contact surface diameter machine side (DCSFMS)
80 mm
Torque (TQ)
5
Related products
Spare parts
KEY SD6368-16
Article code
290058100
Reference
SD6368-16
SCREW J0164110
Article code
119163100
Reference
J0164110
SCREW P0451400
Article code
290006700
Reference
P0451400
TORX KEY DT2050
Article code
290078400
Reference
DT2050
