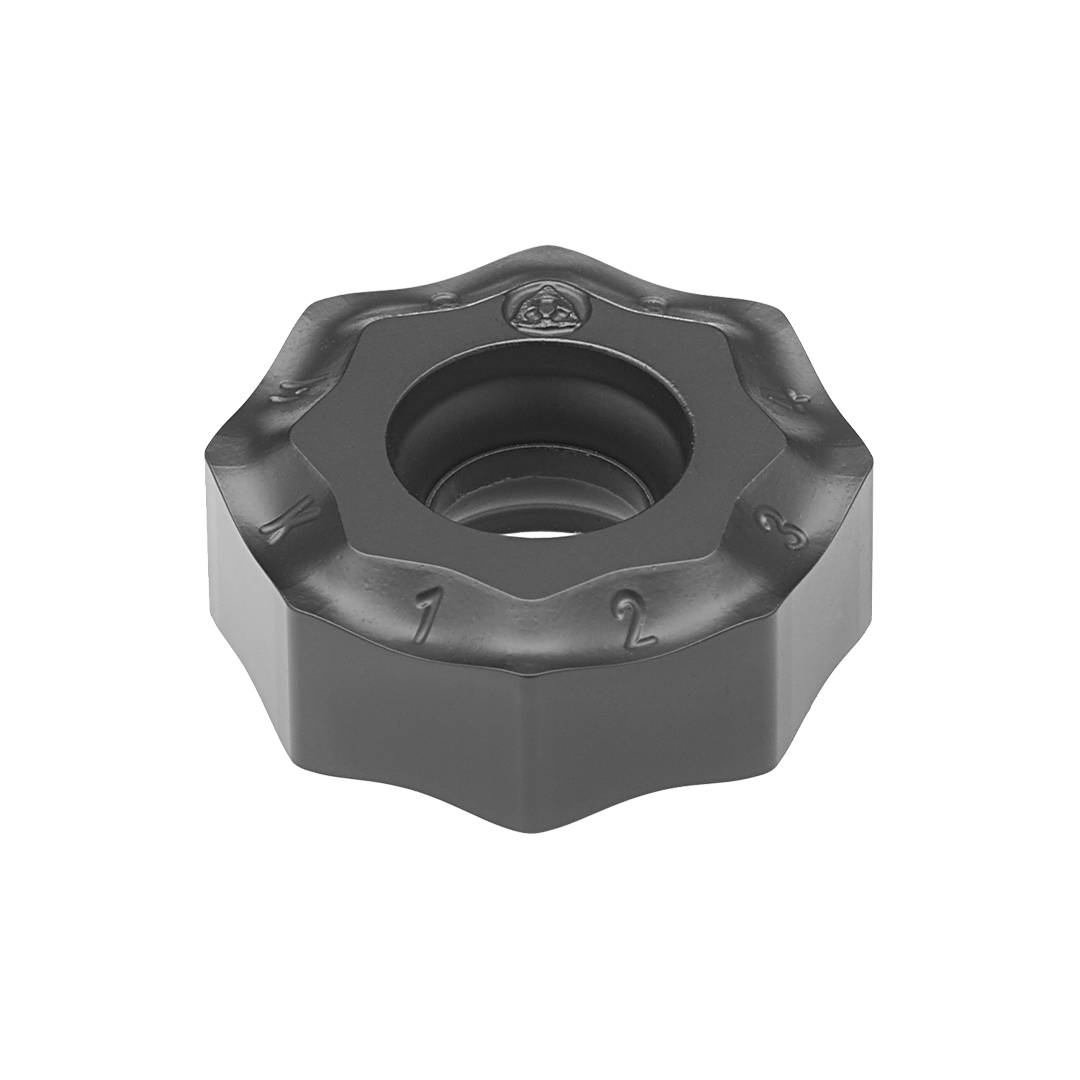

INSERT ONKX 0606 ANEN-MK PH5705
1112291L5 | PAST. ONKX 0606 ANEN-MK PH5705
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

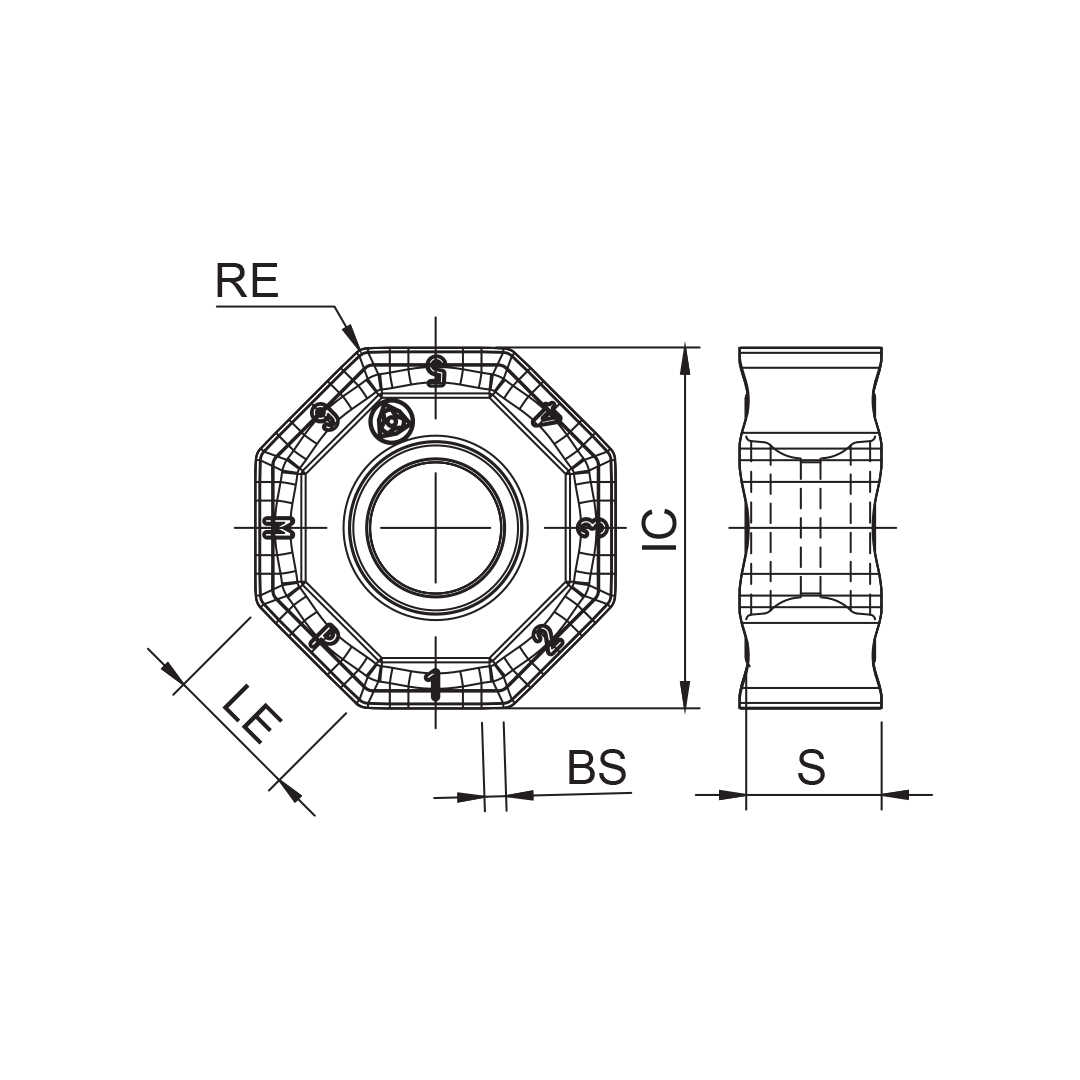

Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
6.2 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH5705
Insert thickness (S)
6 mm
Wiper edge length (BS)
1 mm
Chip breaker manufacturer's designation (CBMD)
MK
Fixing hole diameter (D1)
0.2362 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (140 - 320)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
