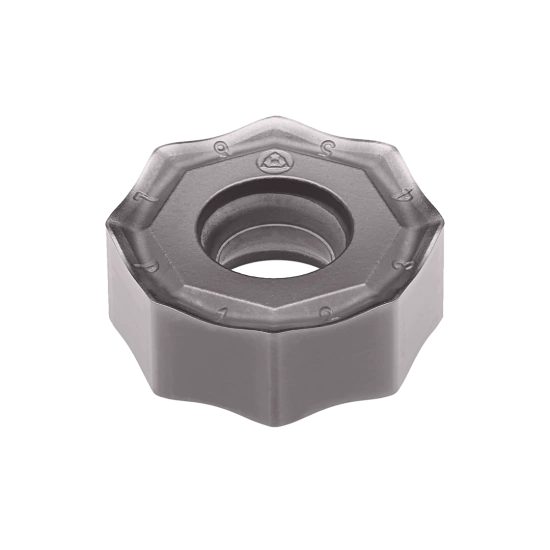

INSERT ONHX 0606 ANEN-LP PH7930
1111954P3 | PAST. ONHX 0606 ANEN-LP PH7930
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

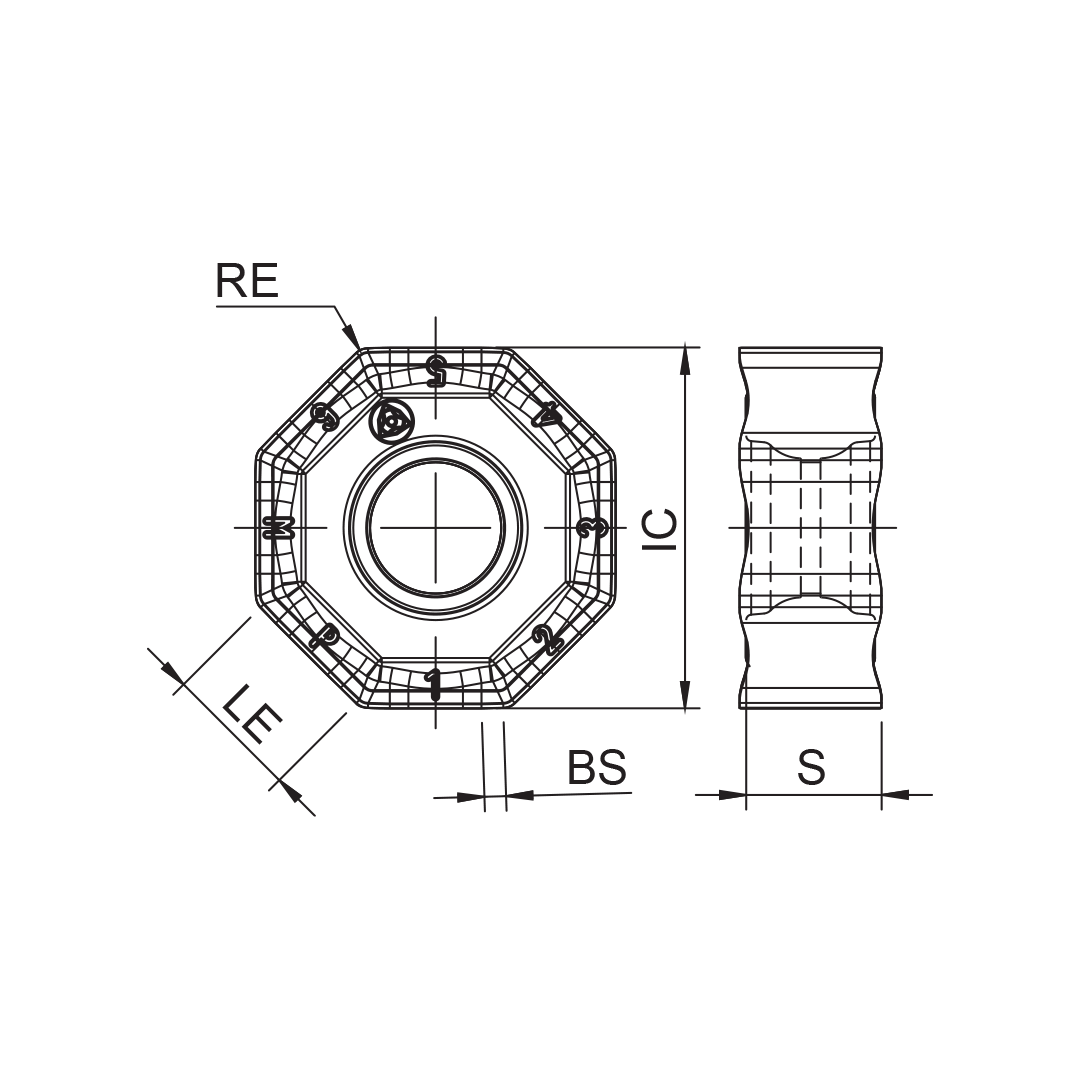

Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
6.2 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH7930
Insert thickness (S)
6.2 mm
Wiper edge length (BS)
1 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.2362 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (100 - 240)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
- M
VC (m/min) (100 - 200)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
- P
VC (m/min) (120 - 220)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
