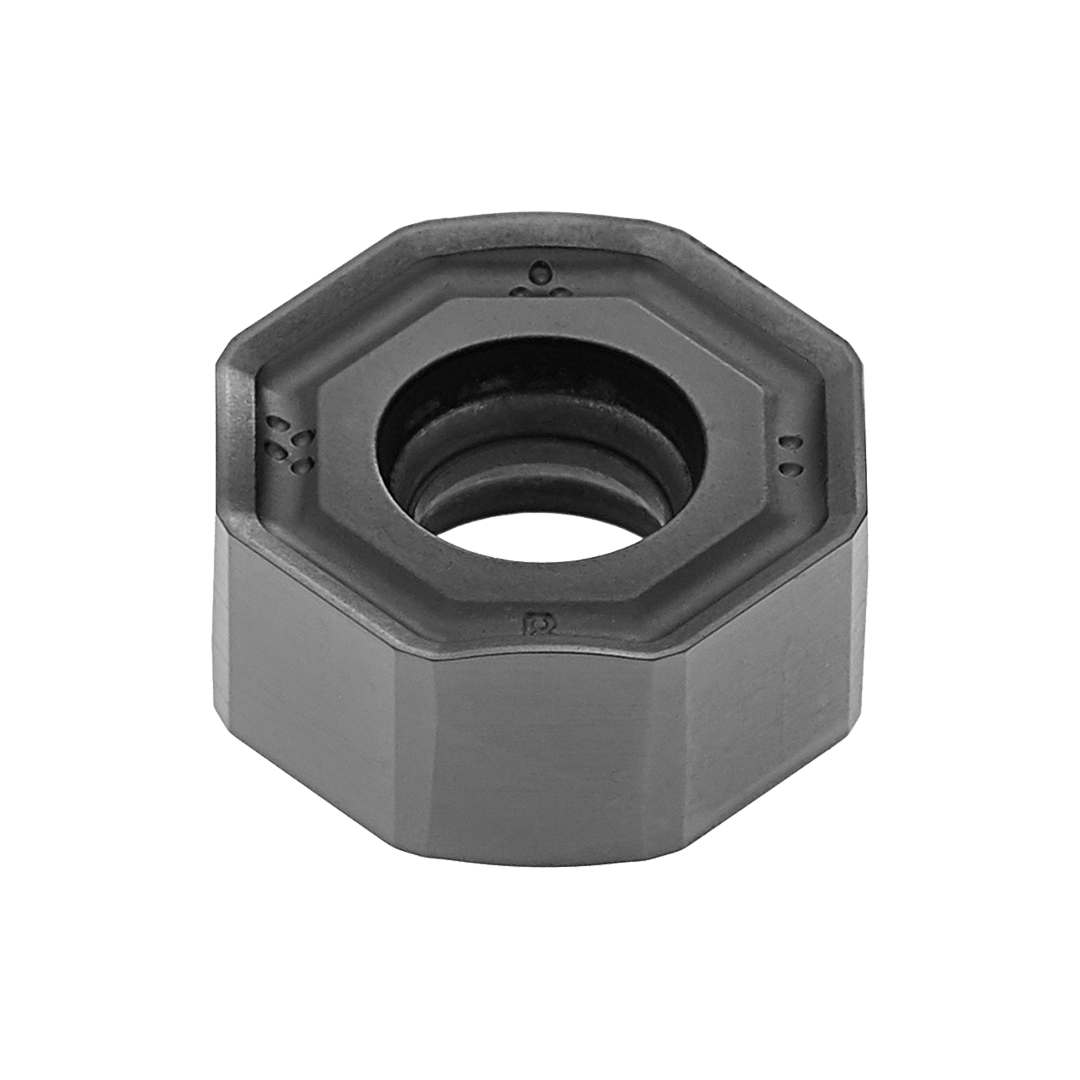

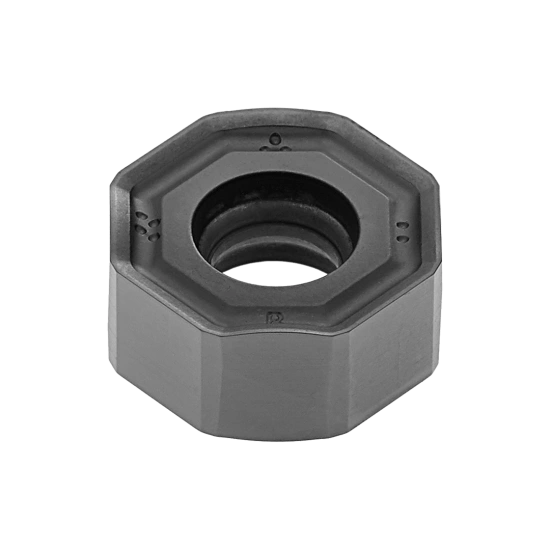

INSERT ONHX 0606 ANEN-W PH5705
1112053L5 | PAST. ONHX 0606 ANEN-W PH5705
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8

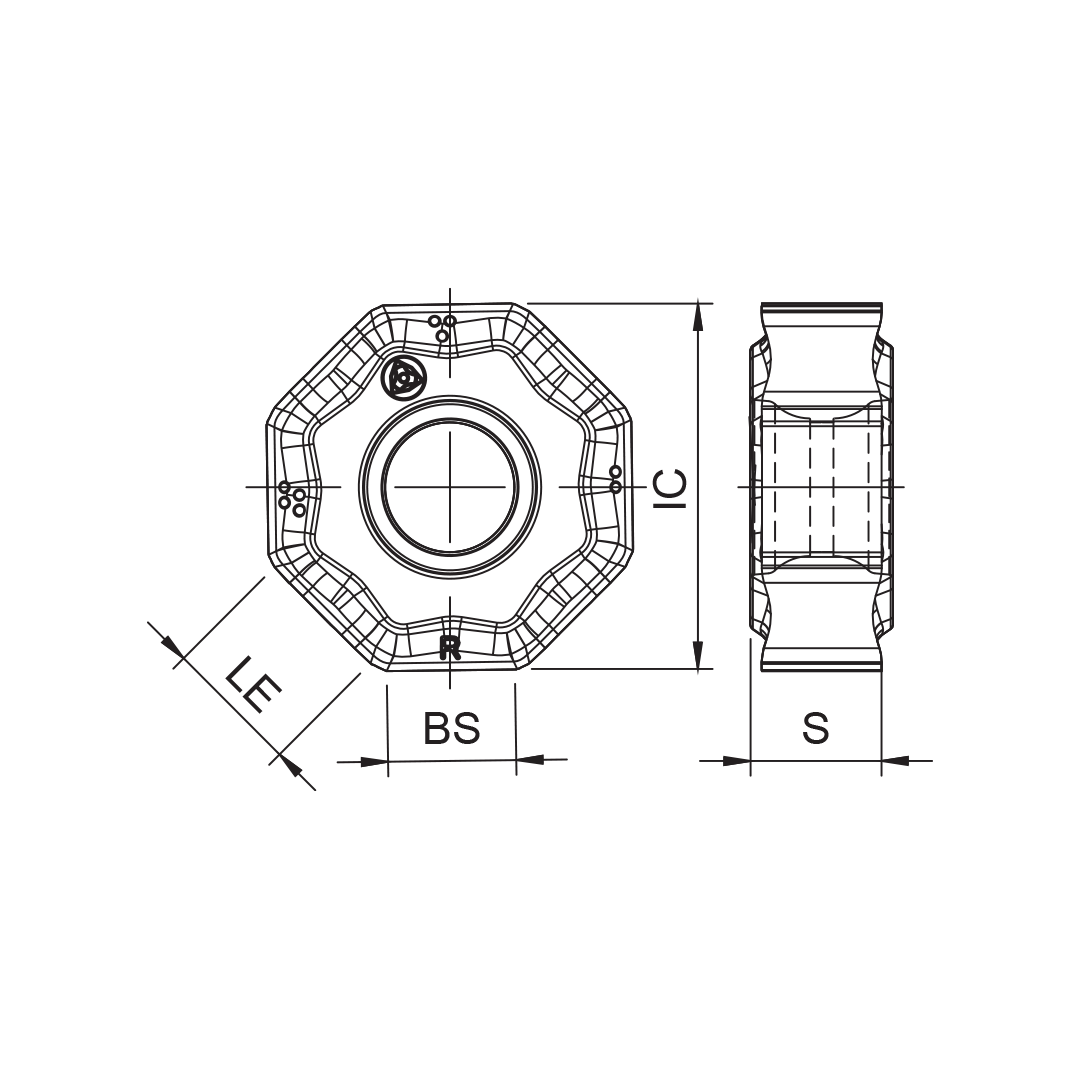

Inscribed circle diameter (IC)
6 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
6.2 mm
Hand (HAND)
R
Grade (GRADE)
PH5705
Insert thickness (S)
5.96 mm
Wiper edge length (BS)
6 mm
Chip breaker manufacturer's designation (CBMD)
W
Fixing hole diameter (D1)
0.2323 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (140 - 320)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (0.8 - 3.8)
