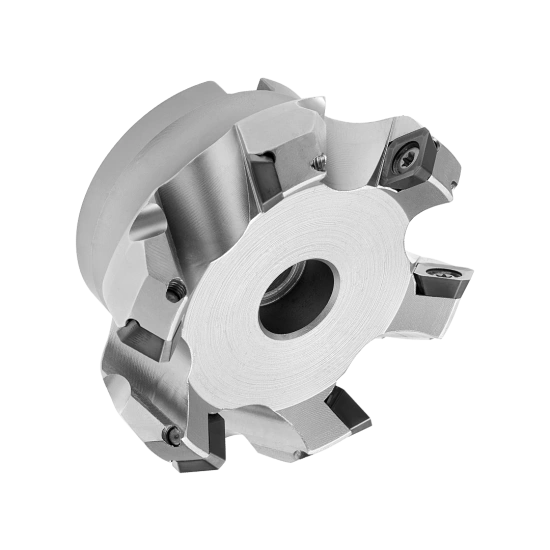

MILLING TOOL 125A06045-07-19-040063
181163300 | FRESA 125A06045-07-19-040063
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
6 mm
Axial rake angle (GAMP)
19
Connection diameter (DCONMS)
40 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
125 mm
Maximum cutting diameter (DCX)
137 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
63 mm
Cutting item count (CICT)
7
Contact surface diameter machine side (DCSFMS)
85 mm
Torque (TQ)
5
Related products
Spare parts
SCREW P0501100
Article code
290017500
Reference
P0501100
TORX KEY DT2050
Article code
290078400
Reference
DT2050
TORX KEY PT20
Article code
290014900
Reference
PT20
