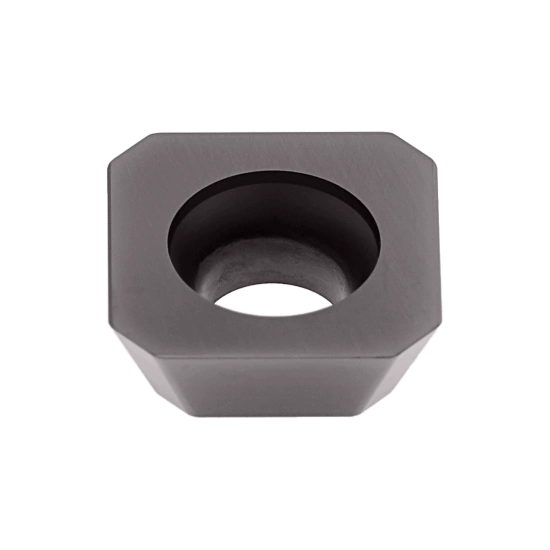

INSERT SEHW 1204 AFEN PHP920

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1110219T1 | PAST. SEHW 1204 AFEN PHP920

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Face Milling

Cutting edge count (CEDC)

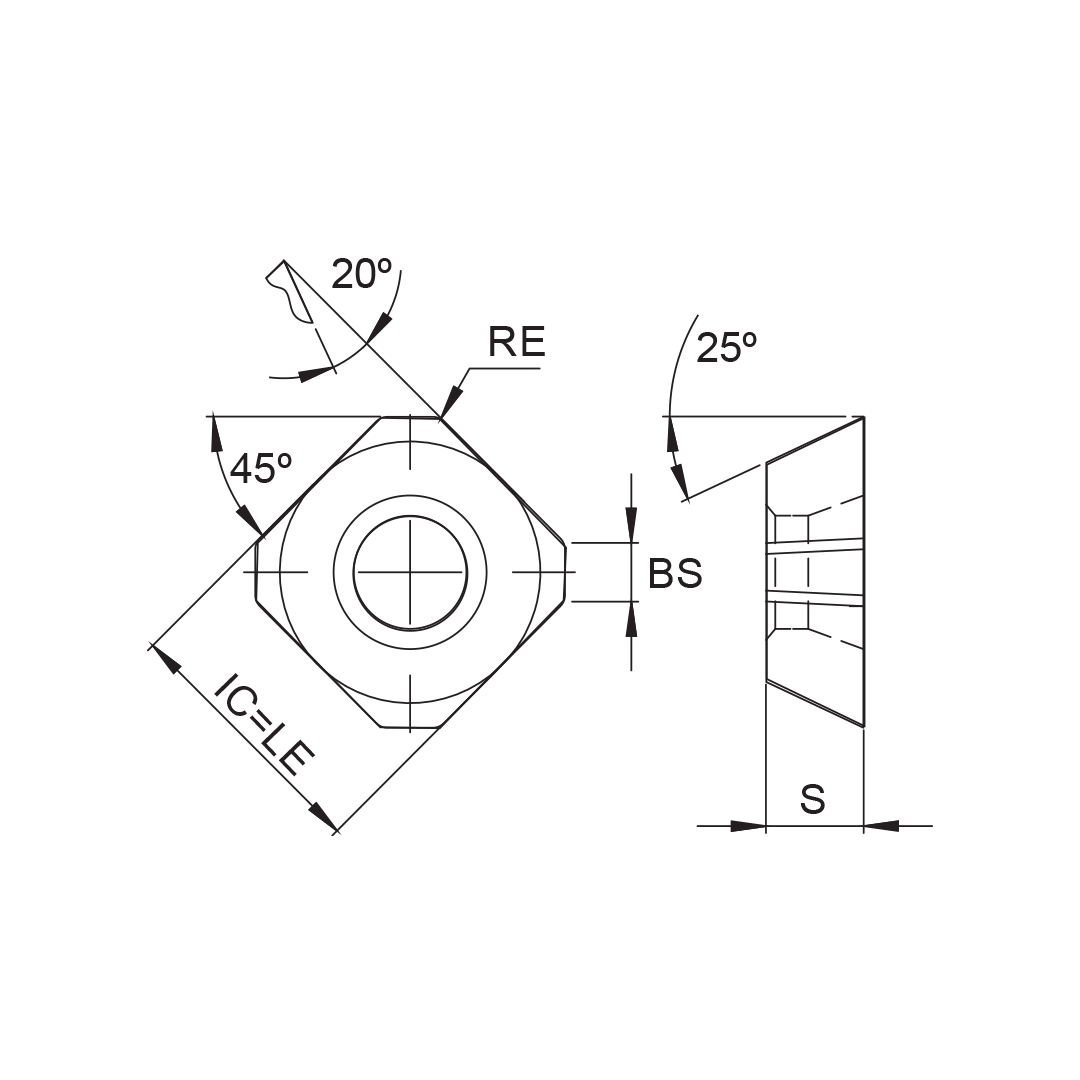

Inscribed circle diameter (IC)

12.7 mm

Insert shape code (SC)

Cutting edge effective length (LE)

12.7 mm

Corner radius (RE)

0.8 mm

Hand (HAND)

Grade (GRADE)

PHP920

Insert thickness (S)

4.76 mm

Wiper edge length (BS)

2.8 mm

Fixing hole diameter (D1)

0.2185 mm

Tolerance class insert (TCINS)
