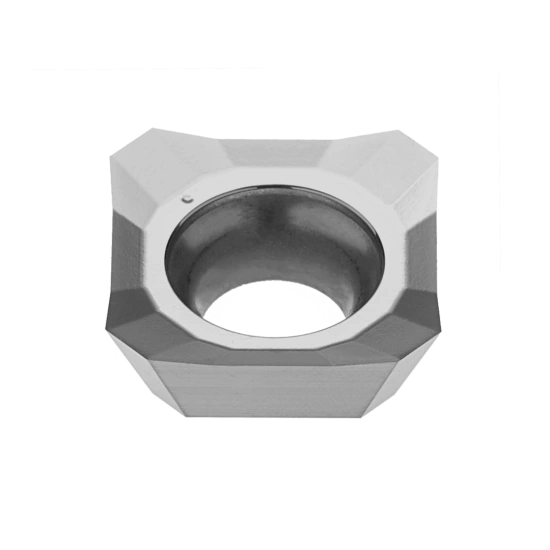

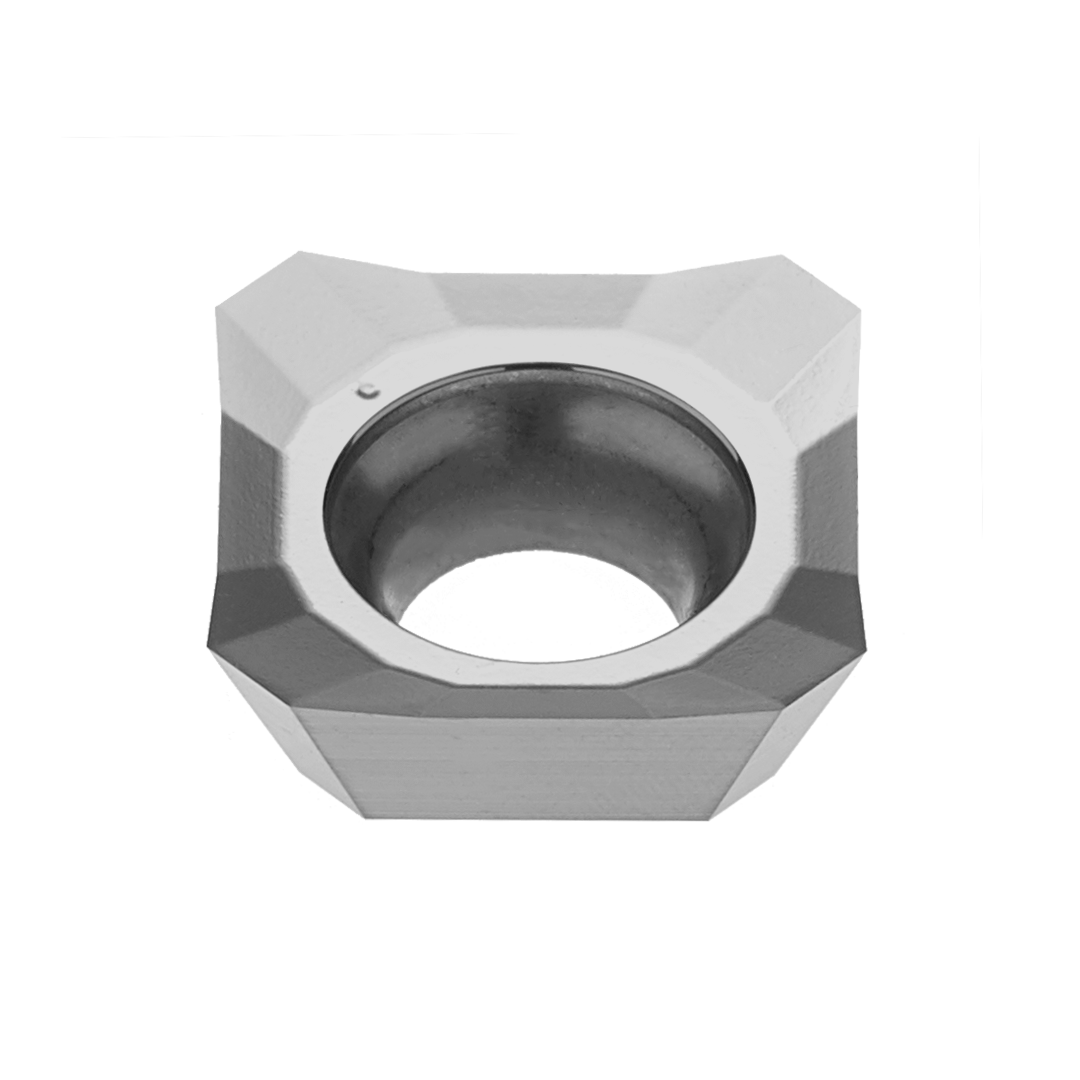

INSERT SEHT 1204 AFFN-LN PH0910
111228310 | PAST. SEHT 1204 AFFN-LN PH0910
Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
4

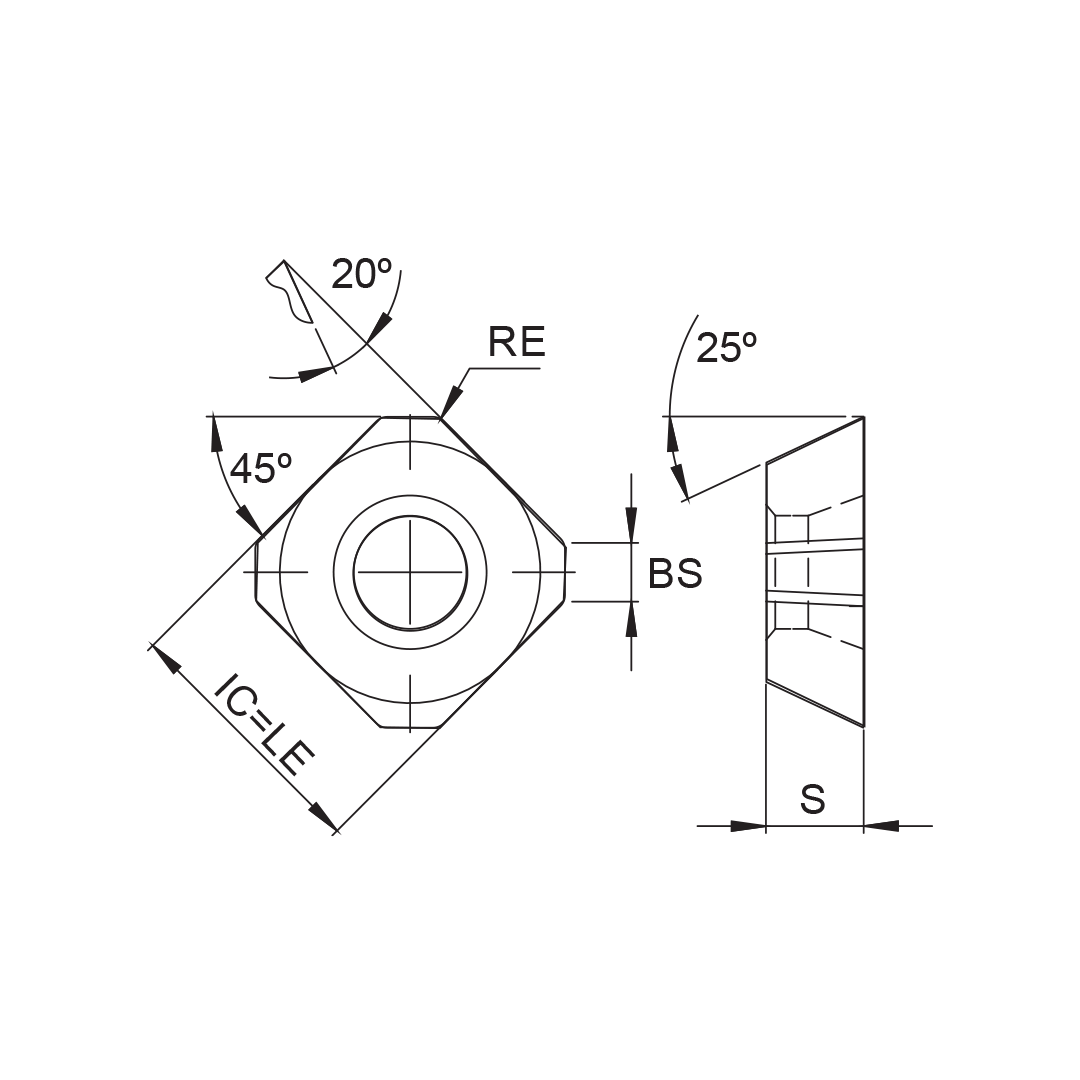

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
12.7 mm
Hand (HAND)
N
Grade (GRADE)
PH0910
Insert thickness (S)
4.76 mm
Wiper edge length (BS)
2 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.2185 mm
Tolerance class insert (TCINS)
H
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
