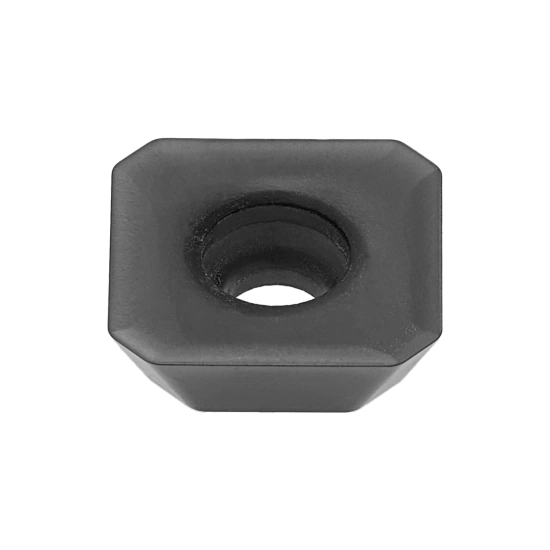

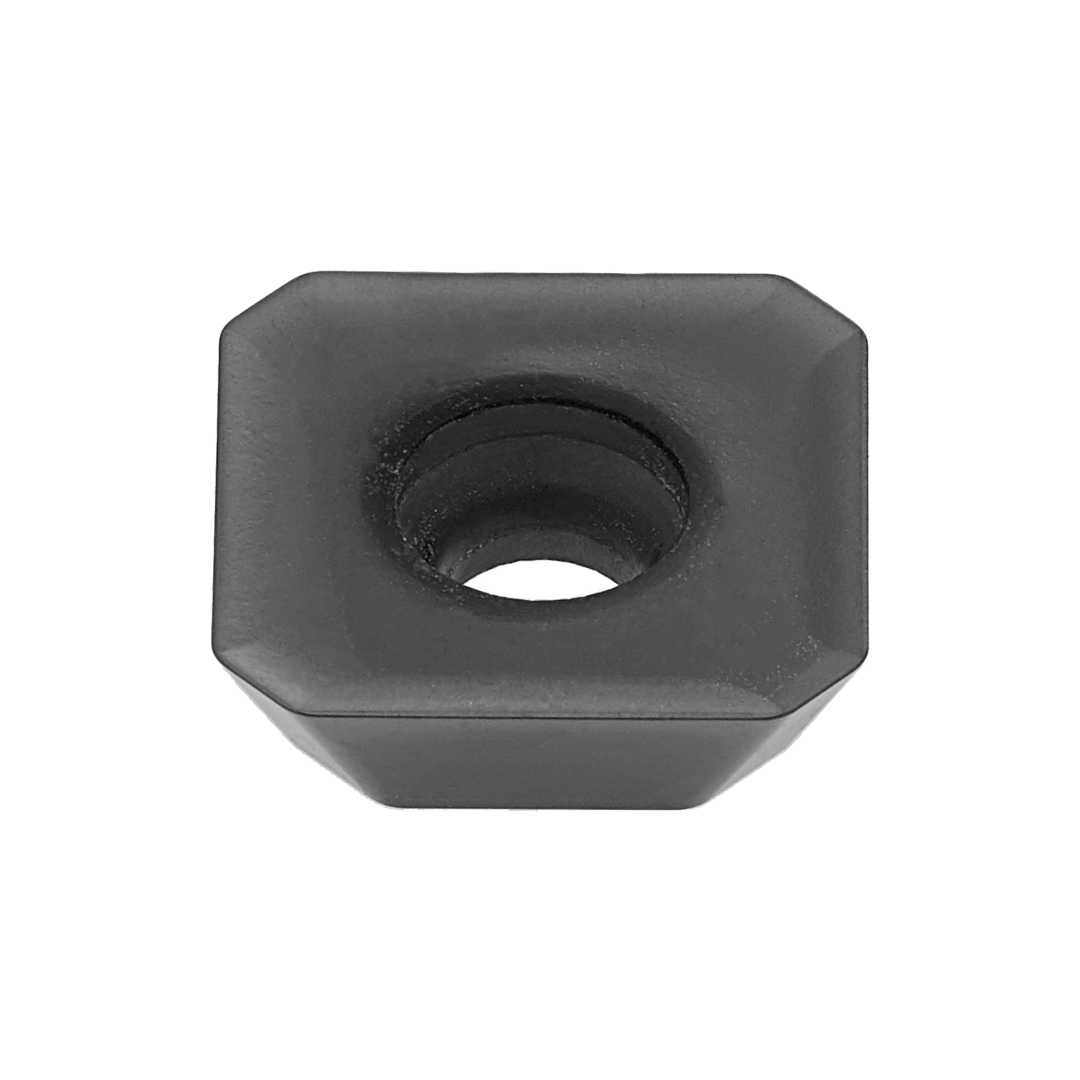

INSERT SEHT 1204 AFEN PH6920
111021668 | PAST. SEHT 1204 AFEN PH6920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
4

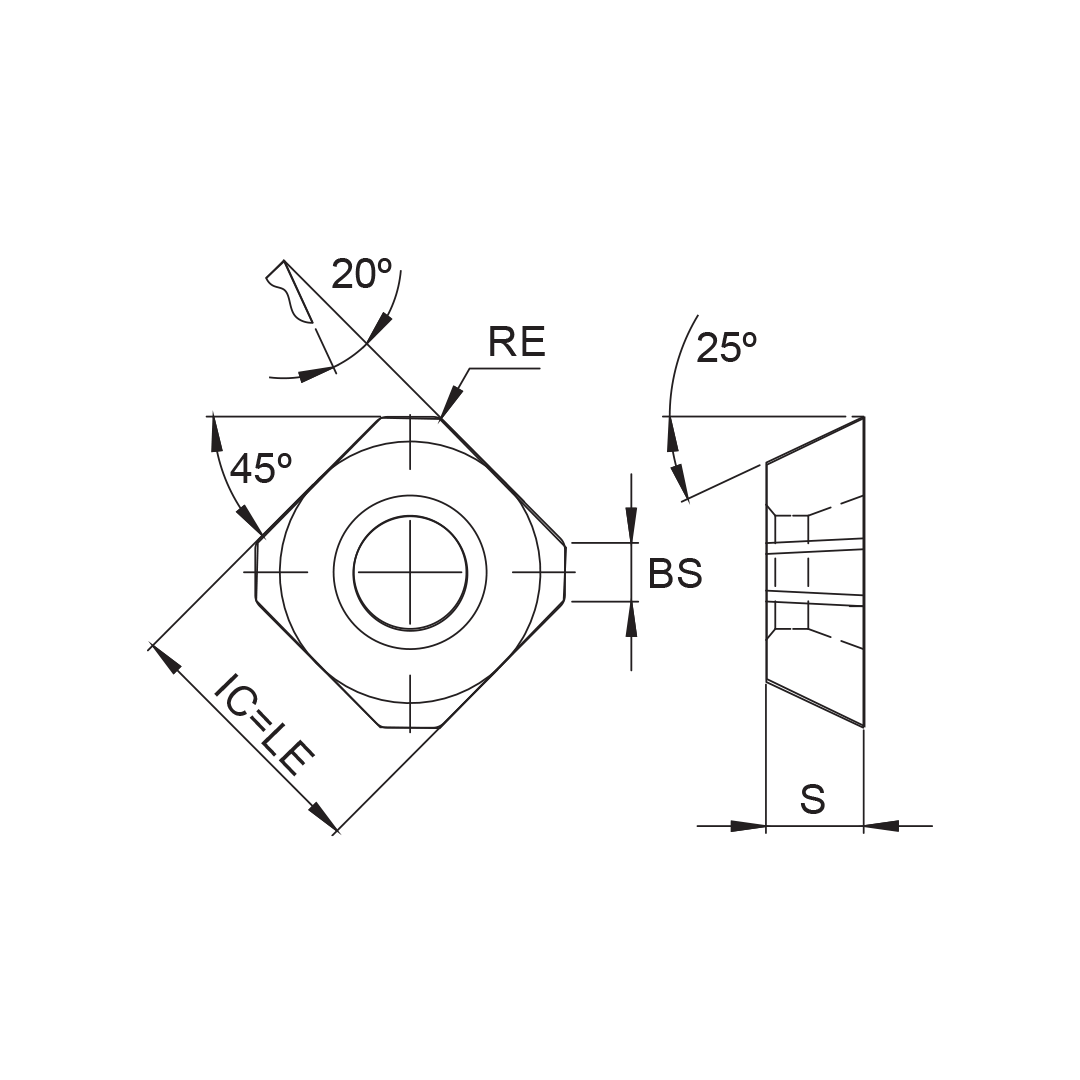

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
12.7 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
N
Grade (GRADE)
PH6920
Insert thickness (S)
4.76 mm
Wiper edge length (BS)
2.8 mm
Fixing hole diameter (D1)
0.2185 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (80 - 250)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
- M
VC (m/min) (100 - 190)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
- P
VC (m/min) (140 - 210)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.6 - 6)
