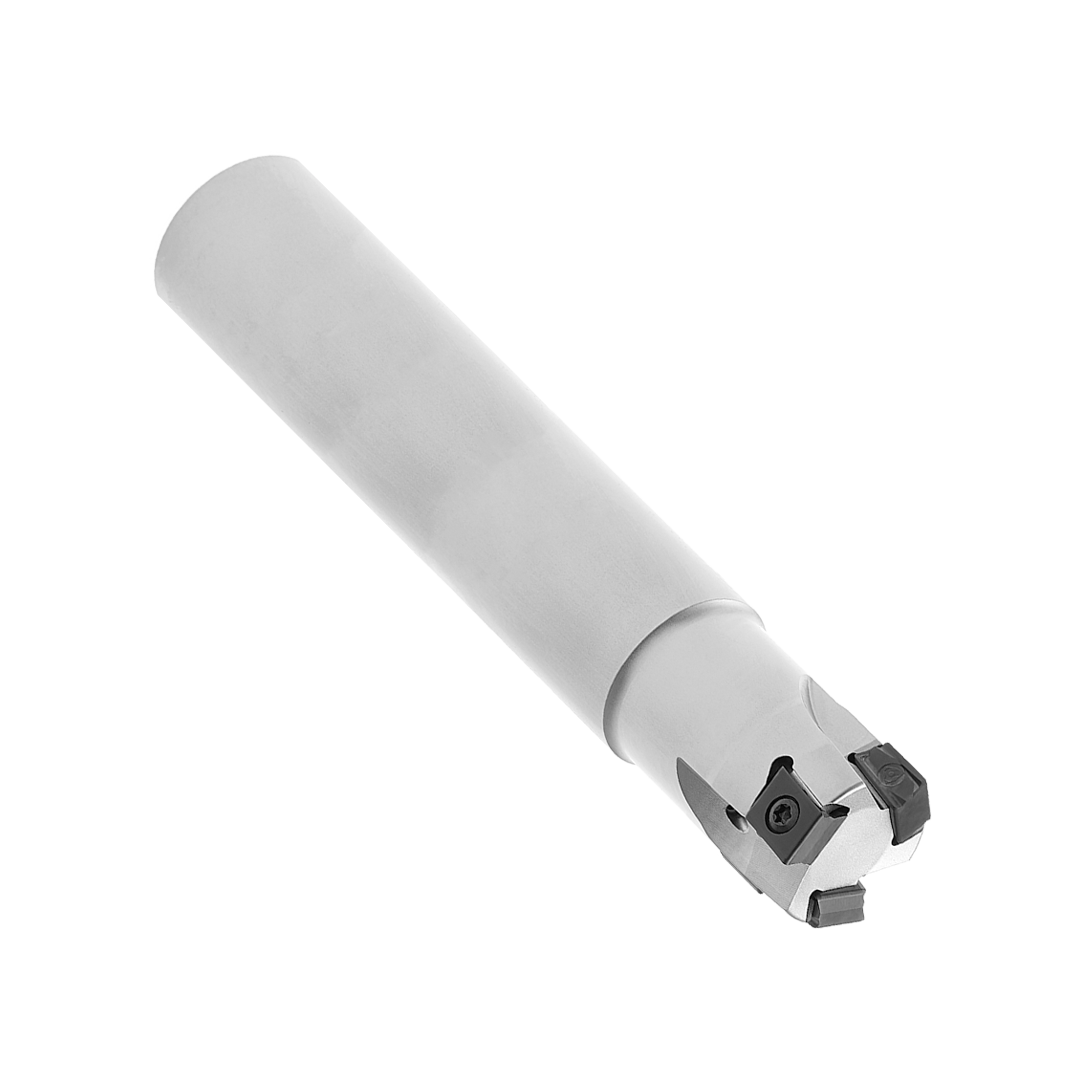

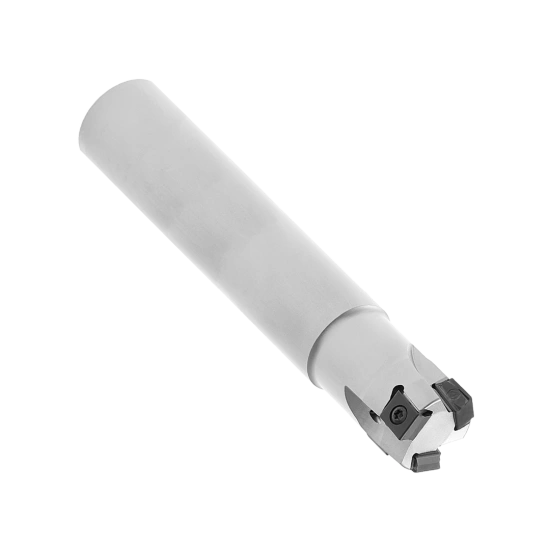

MILLING TOOL 025E90190-02-04-025200
181118500 | FRESA 025E90190-02-04-025200
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
11 mm
Axial rake angle (GAMP)
5
Connection diameter (DCONMS)
25 mm
Adaptive interface machine direction (ADINTMS)
Cylindrical Shank
Cutting diameter (DC)
25 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
200 mm
Usable length (LU)
40 mm
Radial rake angle (GAMF)
-32
Cutting item count (CICT)
2
Cutting pitch differential (CPDF)
NO
Torque (TQ)
3
Related products
Spare parts
SCREW P0400900
Article code
290048200
Reference
P0400900
TORX KEY DT1530
Article code
290047800
Reference
DT1530
TORX KEY XT15-S35
Article code
290012400
Reference
XT15-S35
