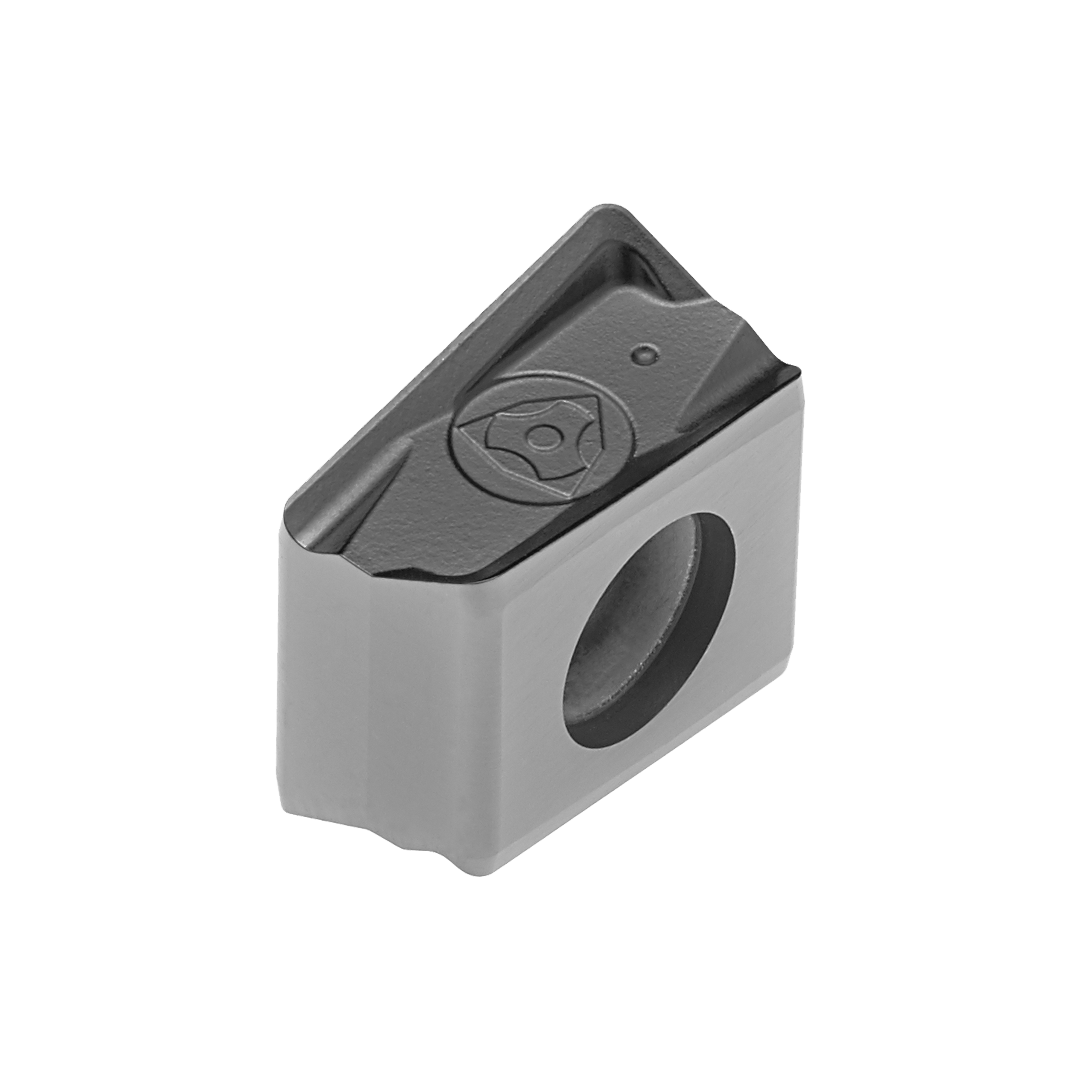

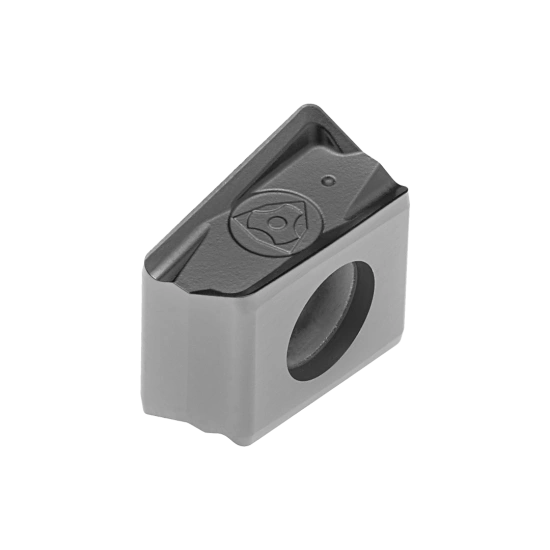

INSERT LNXT 130604 PNER-MP PHS740
1112242T9 | PAST. LNXT 130604 PNER-MP PHS740
Product data
Material classification level 1 (TMC1ISO)
- P
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
L
Corner radius (RE)
0.4 mm
Hand (HAND)
R
Grade (GRADE)
PHS740

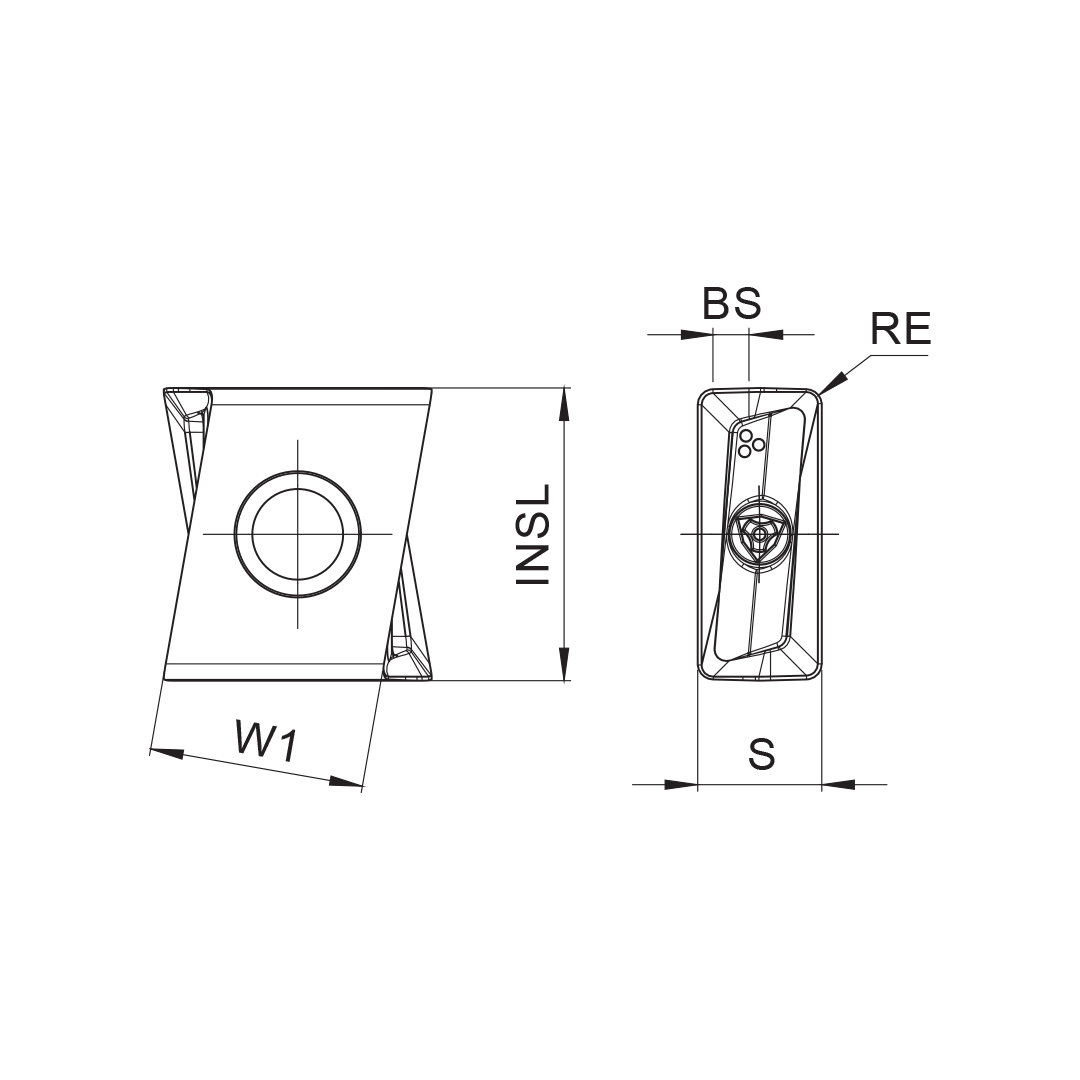

Insert thickness (S)
6.8 mm
Wiper edge length (BS)
0.9 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1752 mm
Insert length (INSL)
13 mm
Tolerance class insert (TCINS)
X
Start values
- P
VC (m/min) (100 - 220)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.4 - 11)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.4 - 11)
