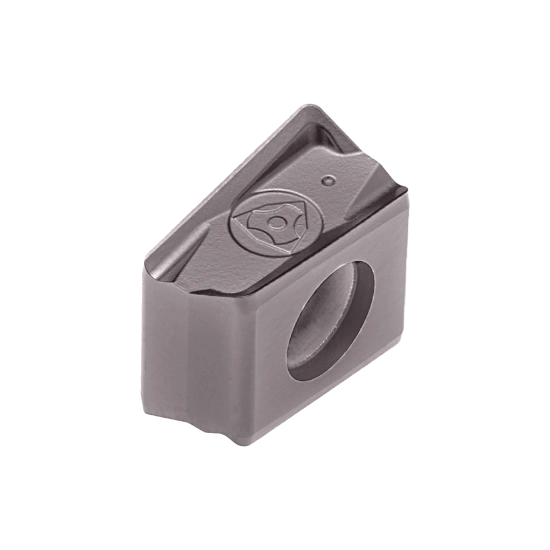

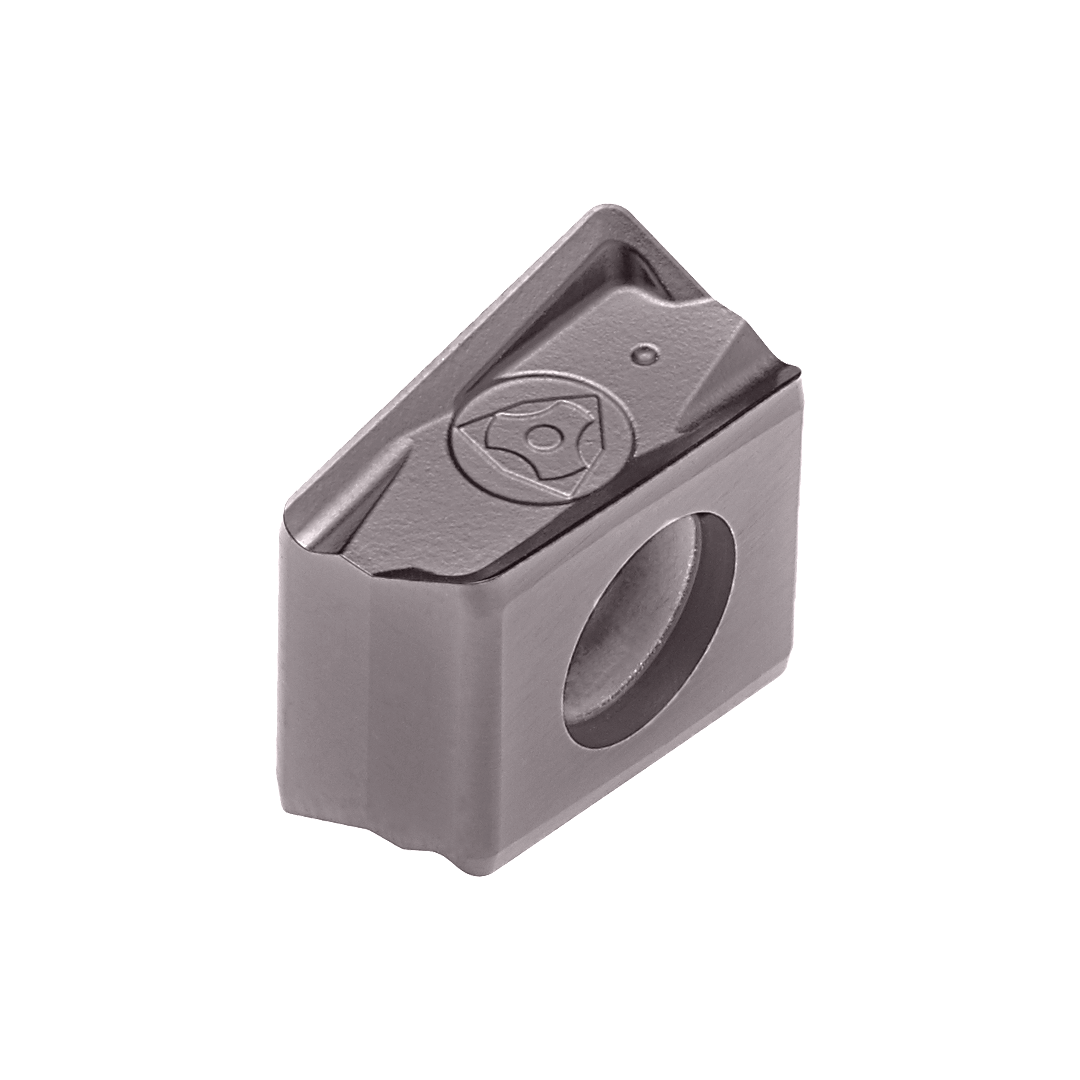

INSERT LNXT 130608 PNER-MP PH7740
1112243G6 | PAST. LNXT 130608 PNER-MP PH7740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
L
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH7740

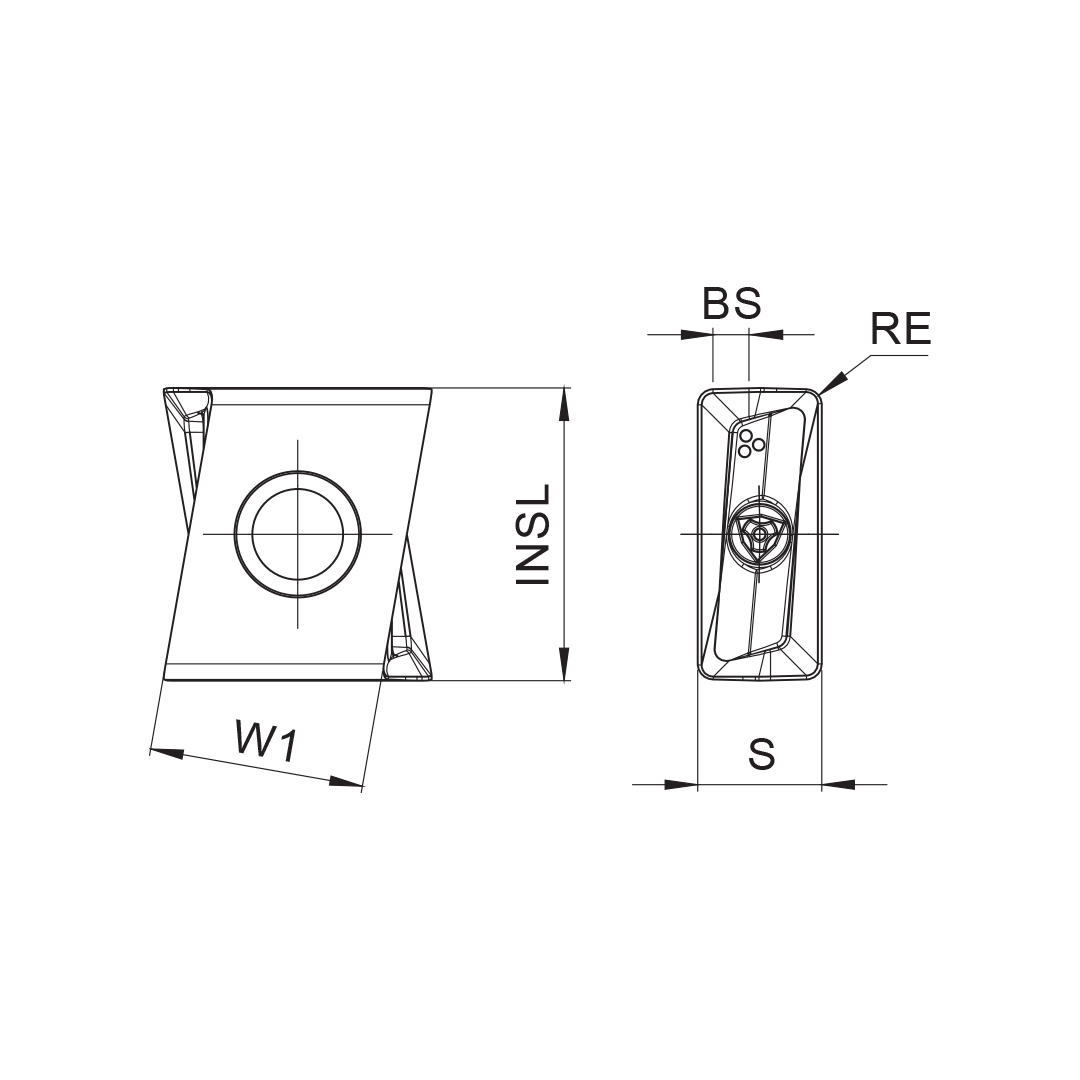

Insert thickness (S)
6.8 mm
Wiper edge length (BS)
0.9 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1752 mm
Insert length (INSL)
13 mm
Tolerance class insert (TCINS)
X
Start values
- K
VC (m/min) (100 - 220)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
- M
VC (m/min) (90 - 180)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
- P
VC (m/min) (100 - 200)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
FZ (mm/t) (0.1 - 0.35)
AP (mm) (0.8 - 11)
