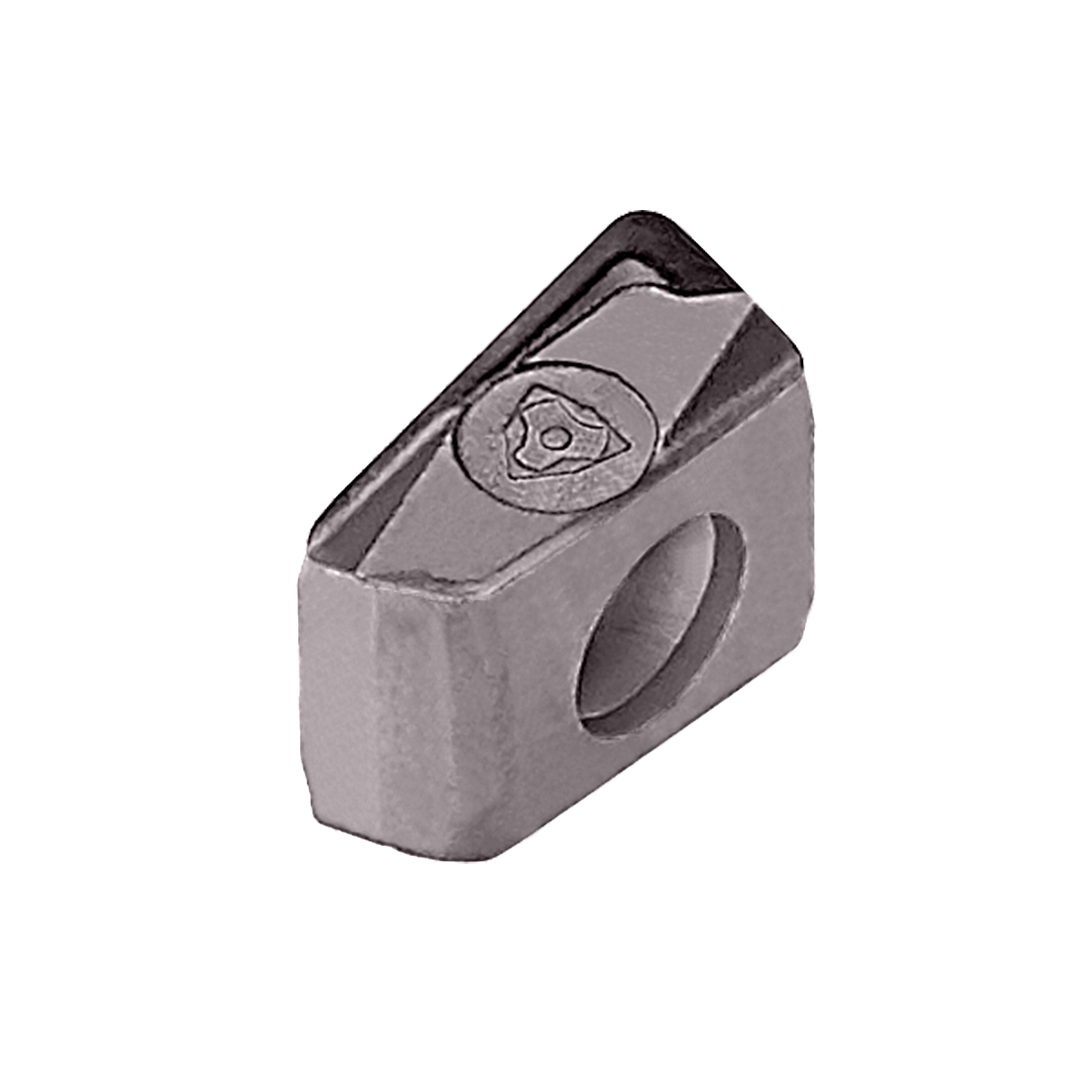

INSERT LNXT 090408 PNER-MP PH7920
1112226G4 | PAST. LNXT 090408 PNER-MP PH7920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
L
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH7920

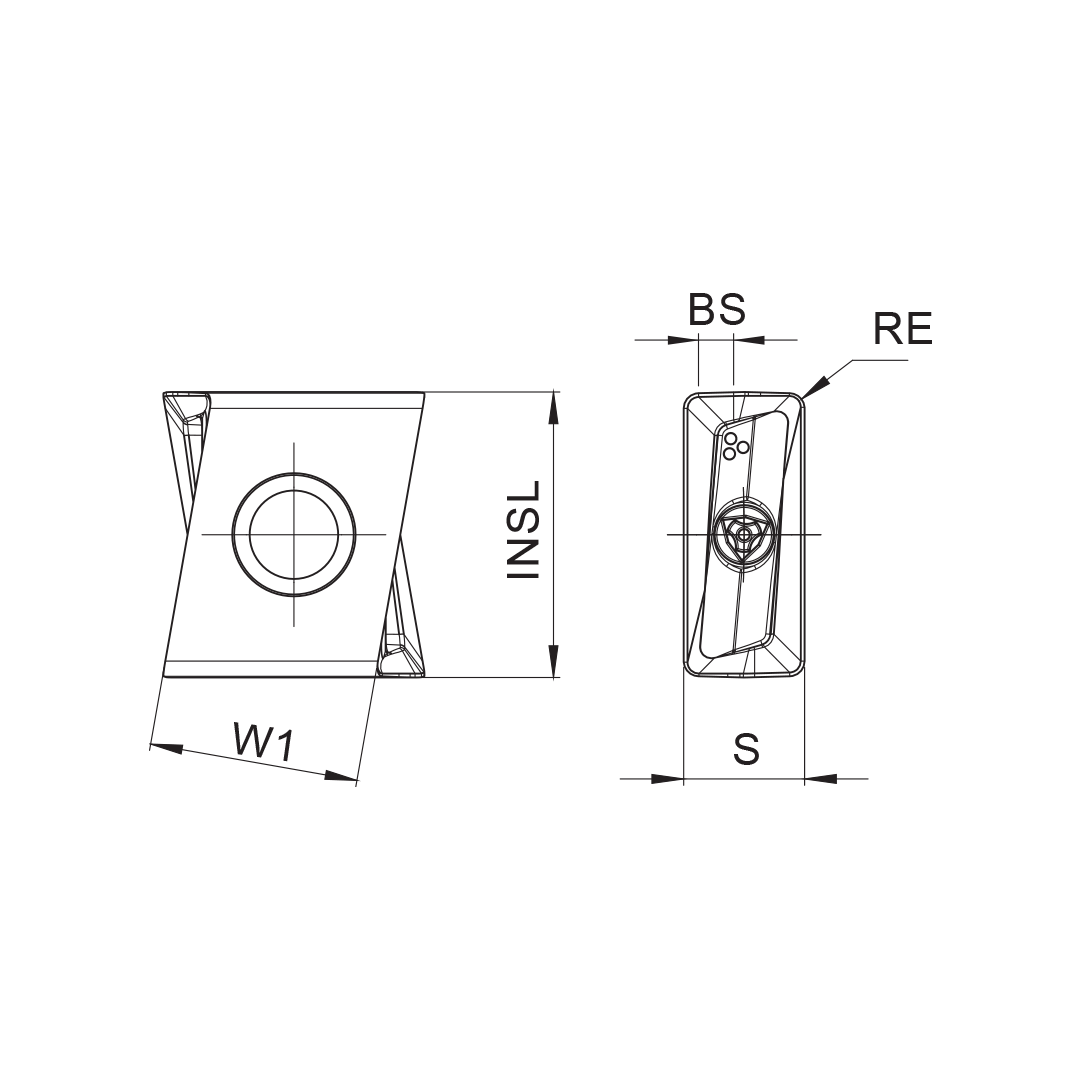

Insert thickness (S)
4.5 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1063 mm
Insert length (INSL)
9 mm
Tolerance class insert (TCINS)
X
Start values
- K
VC (m/min) (120 - 260)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
- M
VC (m/min) (120 - 220)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
- P
VC (m/min) (140 - 240)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (0.8 - 7)
