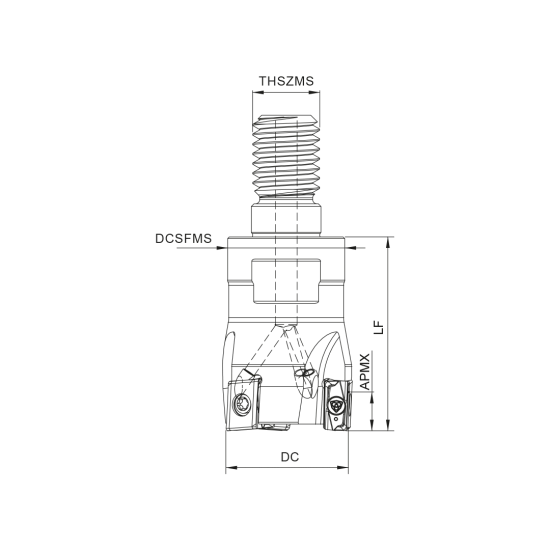

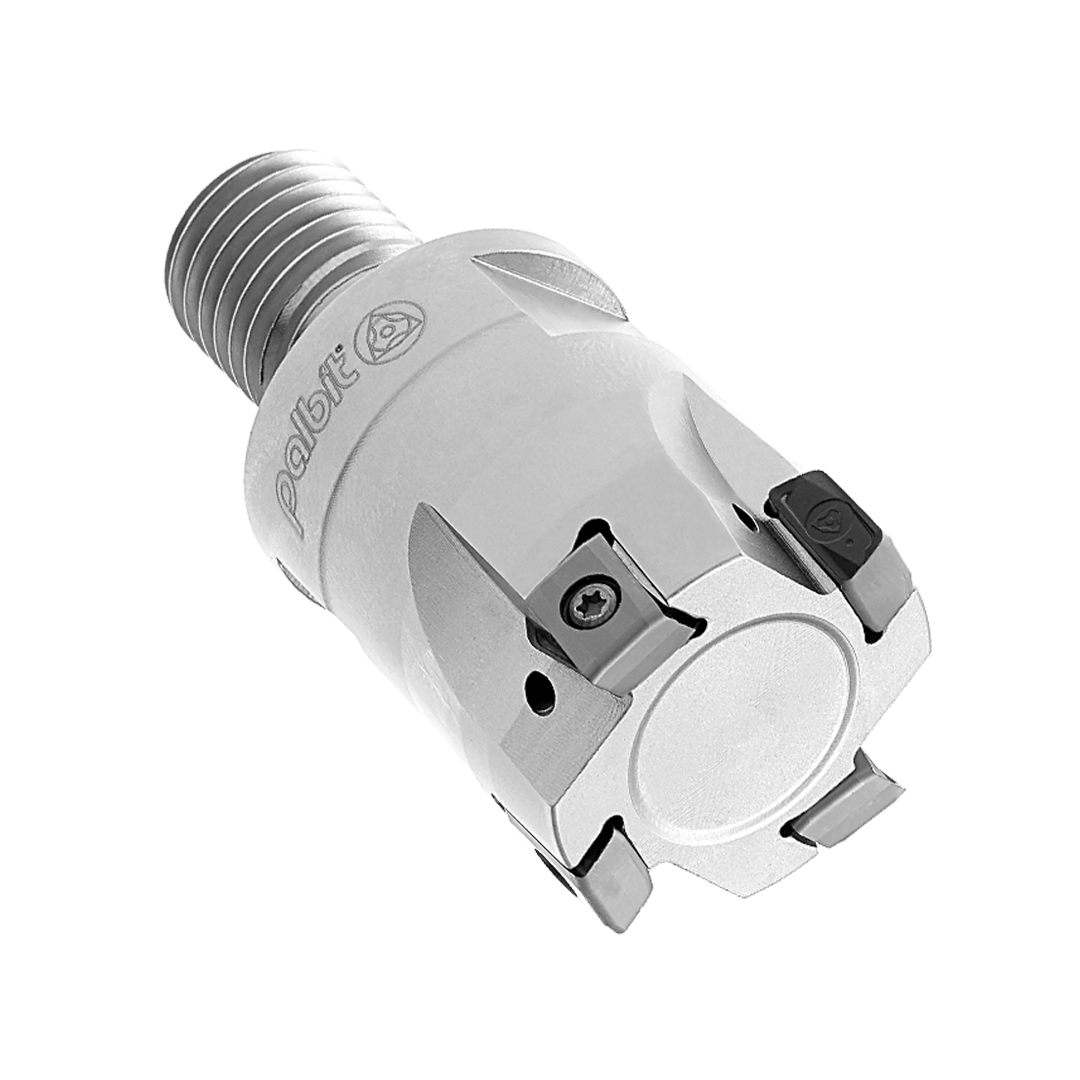

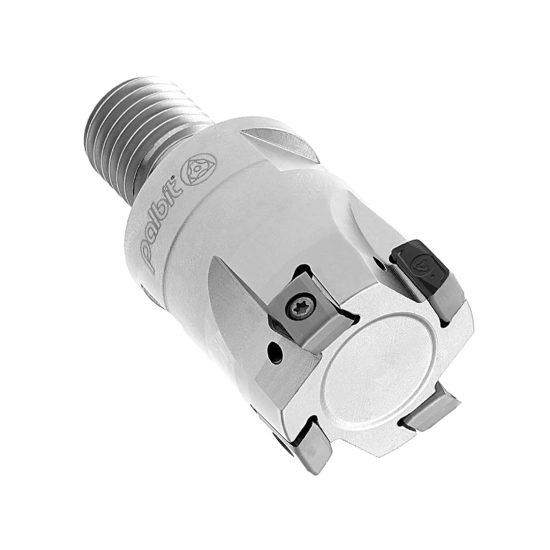

MILLING TOOL 025R90090-03-04-M12035
181144200 | FRESA 025R90090-03-04-M12035
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
7 mm
Axial rake angle (GAMP)
-4
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
25 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
35 mm
Radial rake angle (GAMF)
-15
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
21 mm
Cutting pitch differential (CPDF)
NO
Connection Thread Nominal Size Machine Side (THSZMS)
M12
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Related products
Spare parts
SCREW P0250700
Article code
290013400
Reference
P0250700
TORX KEY XT07
Article code
290012900
Reference
XT07
