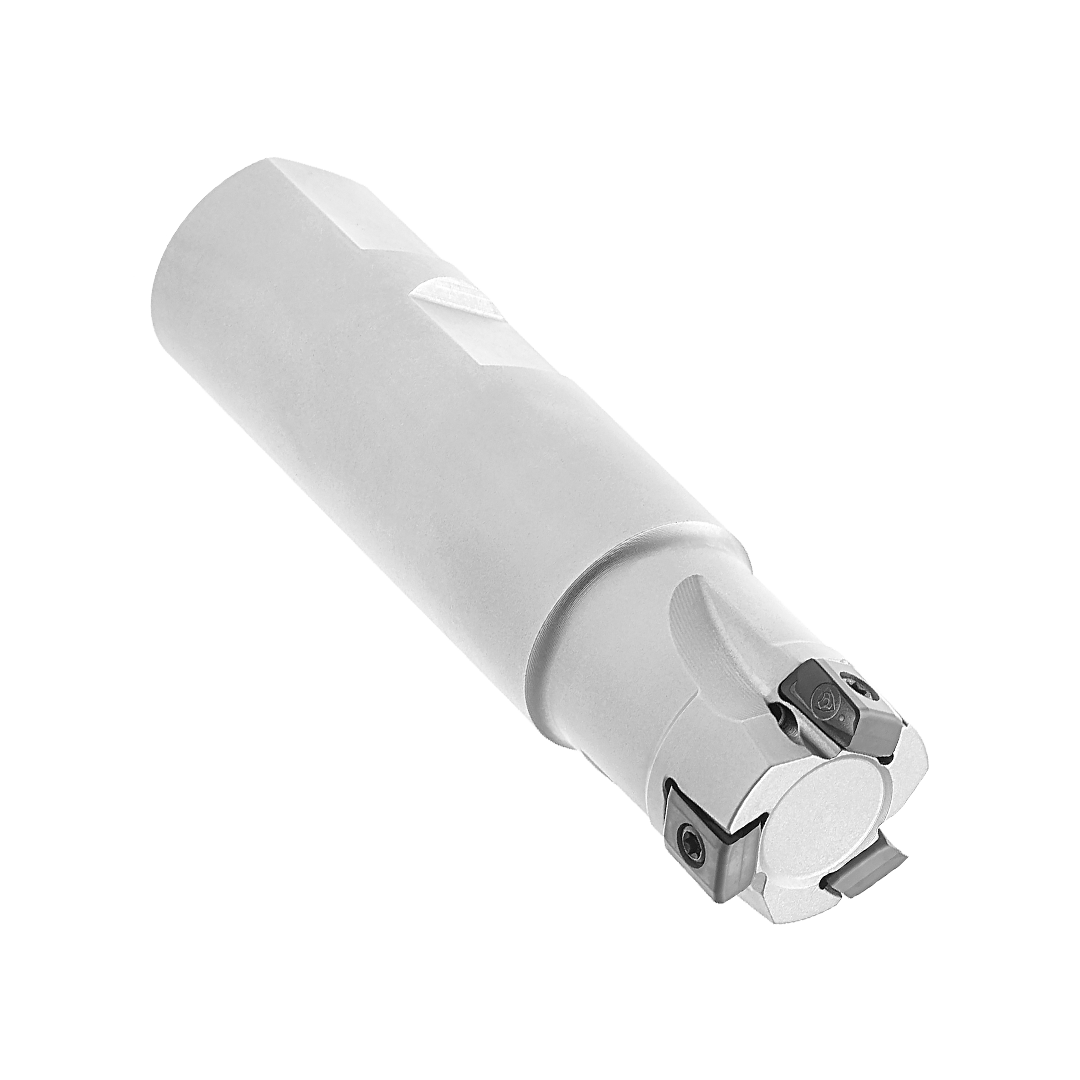

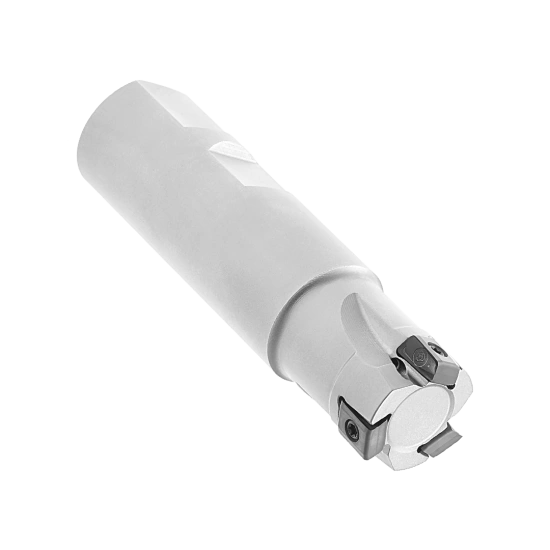

MILLING TOOL 025W90090-03-04-025095
181109500 | FRESA 025W90090-03-04-025095
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
7 mm
Axial rake angle (GAMP)
-4
Connection diameter (DCONMS)
25 mm
Adaptive interface machine direction (ADINTMS)
Weldon Shank
Cutting diameter (DC)
25 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
95 mm
Usable length (LU)
30 mm
Radial rake angle (GAMF)
-25
Cutting item count (CICT)
3
Cutting pitch differential (CPDF)
NO
Related products
Spare parts
SCREW P0250700
Article code
290013400
Reference
P0250700
TORX KEY XT07
Article code
290012900
Reference
XT07
