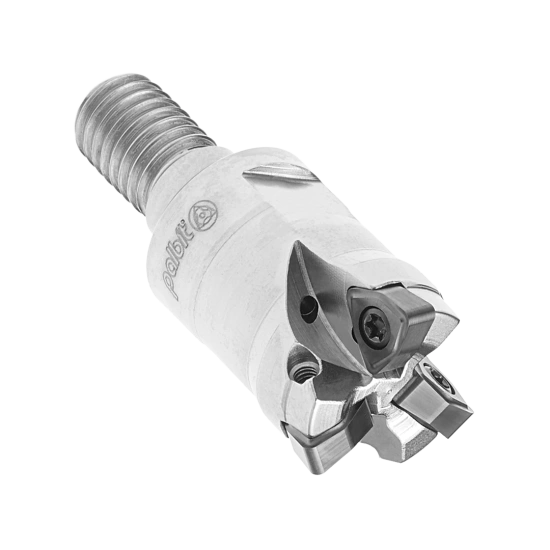

MILLING TOOL 020R49095-03-07-M10028
181028600 | FRESA 020R49095-03-07-M10028
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
0.3 mm
Axial rake angle (GAMP)
-7
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
20 mm
Tool cutting edge angle (KAPR)
95
Functional length (LF)
28 mm
Radial rake angle (GAMF)
-14
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
18 mm
Torque (TQ)
1.2
Connection Thread Nominal Size Machine Side (THSZMS)
M10
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Related products
Spare parts
SCREW P0250704
Article code
290031300
Reference
P0250704
TORX KEY XT08
Article code
290011700
Reference
XT08
