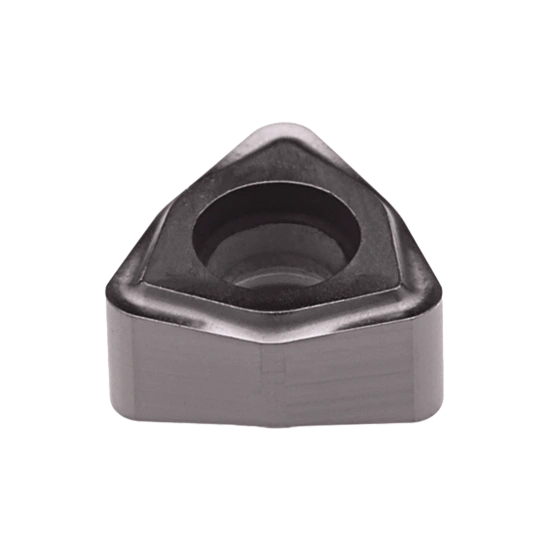

INSERT WNHU 04T310 PHP910
1110783X5 | PAST. WNHU 04T310 PHP910
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Profile Miling
Cutting edge count (CEDC)
6
Inscribed circle diameter (IC)
6.35 mm
Insert shape code (SC)
W
Corner radius (RE)
1 mm
Hand (HAND)
N
Grade (GRADE)
PHP910
Insert thickness (S)
3.5 mm
Chip breaker manufacturer's designation (CBMD)
10
Fixing hole diameter (D1)
0.1102 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (150 - 300)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.1 - 0.5)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.1 - 0.5)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.1 - 0.5)
FZ (mm/t) (0.1 - 0.25)
AP (mm) (0.1 - 0.5)
