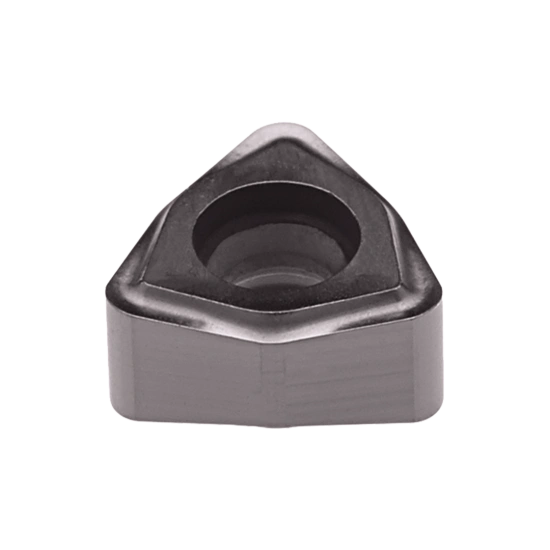

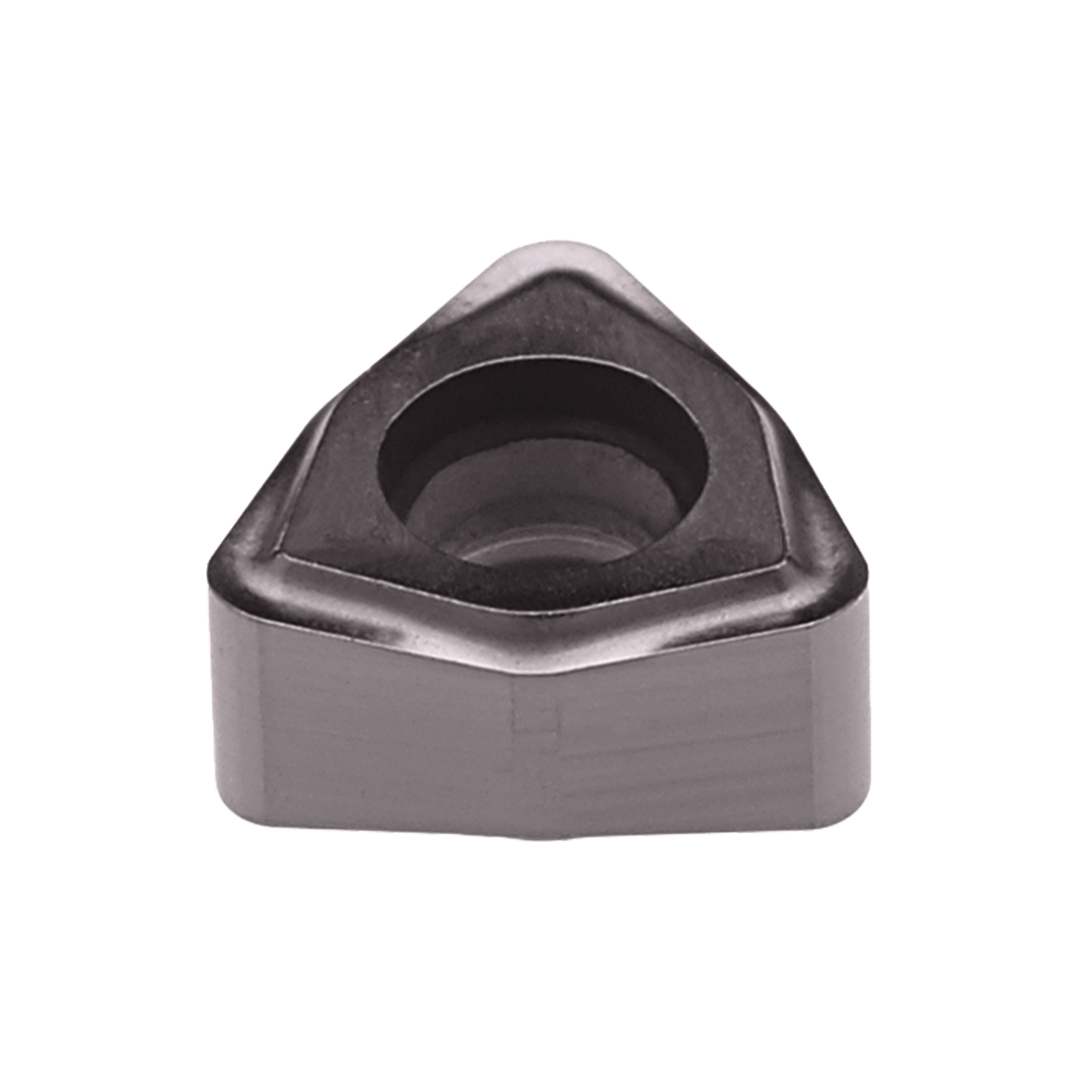

INSERT WNHU 04T310 PH7910

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1110783G1 | PAST. WNHU 04T310 PH7910

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Profile Miling

Cutting edge count (CEDC)

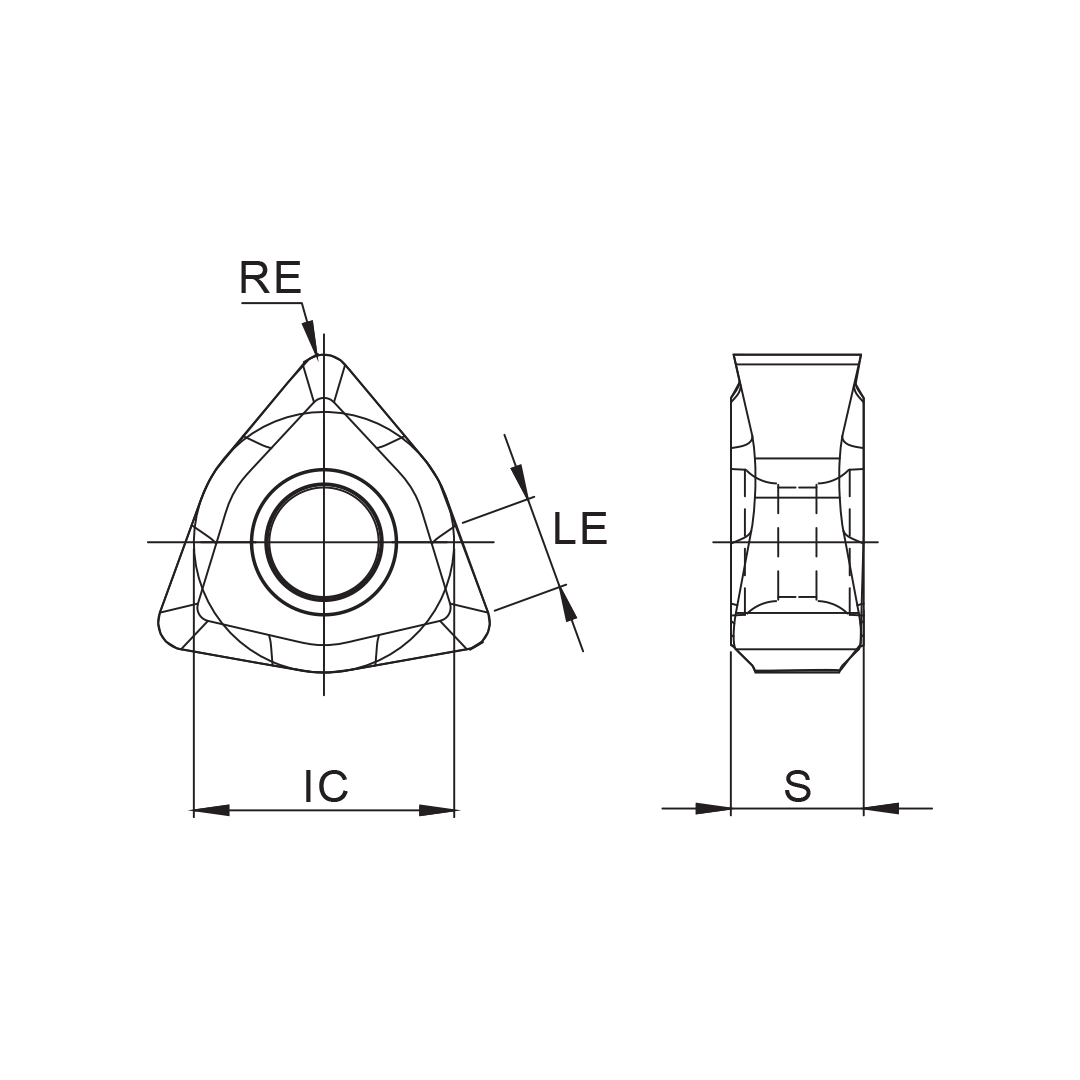

Inscribed circle diameter (IC)

6.35 mm

Insert shape code (SC)

Corner radius (RE)

1 mm

Hand (HAND)

Grade (GRADE)

PH7910

Insert thickness (S)

3.5 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.1102 mm

Tolerance class insert (TCINS)
