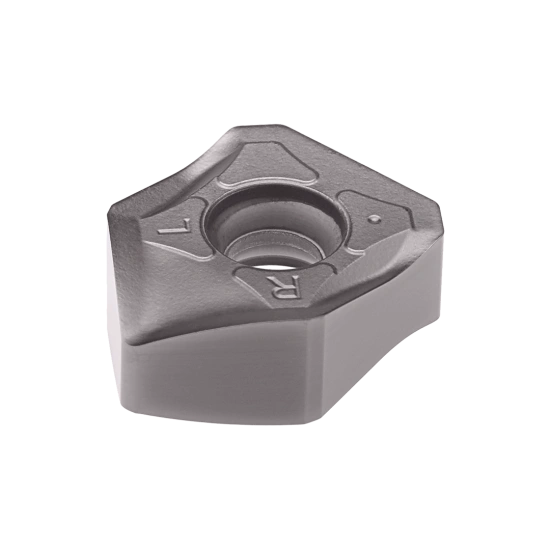

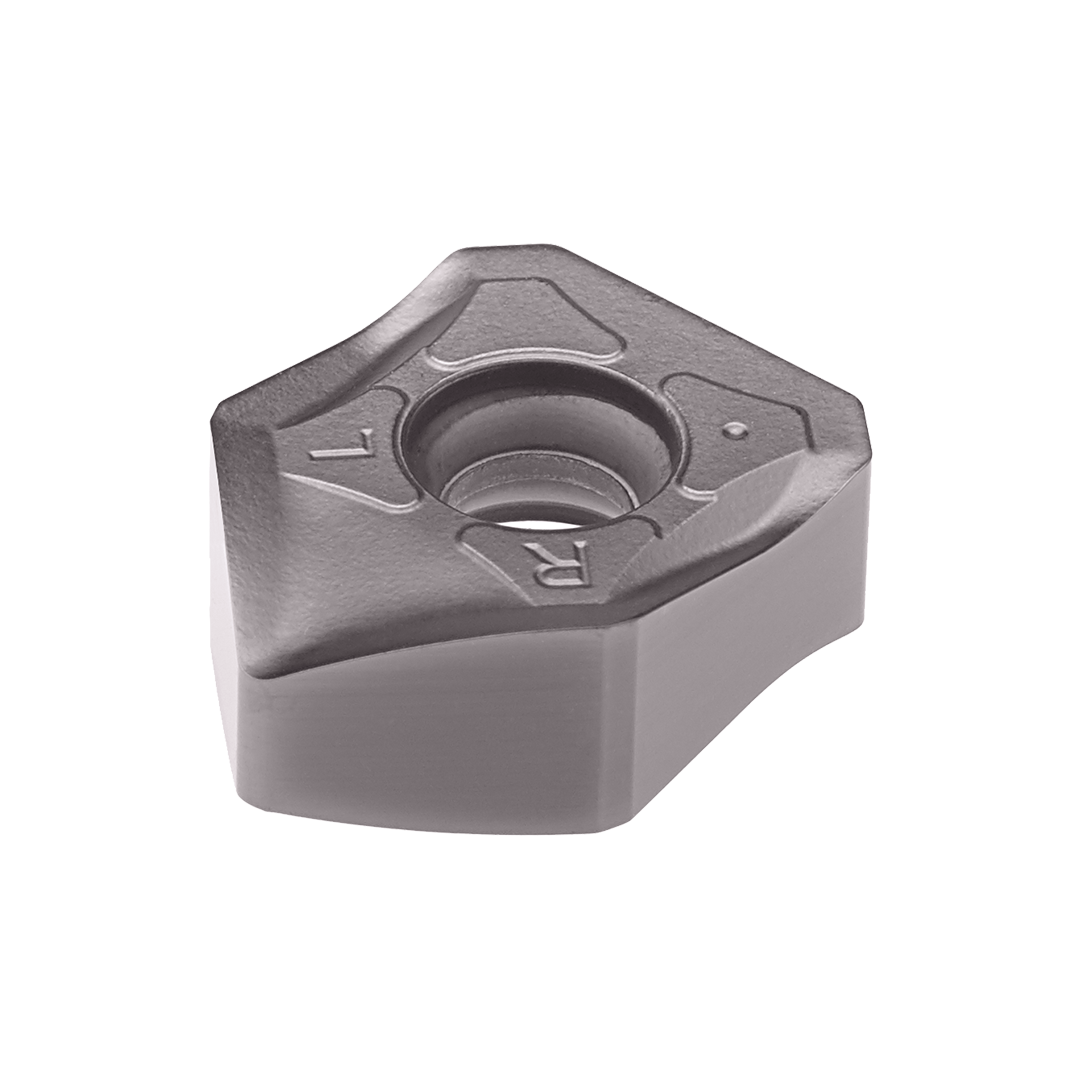

INSERT SNHX 1206 ANFN-W PH7910
1111899G1 | PAST. SNHX 1206 ANFN-W PH7910
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8

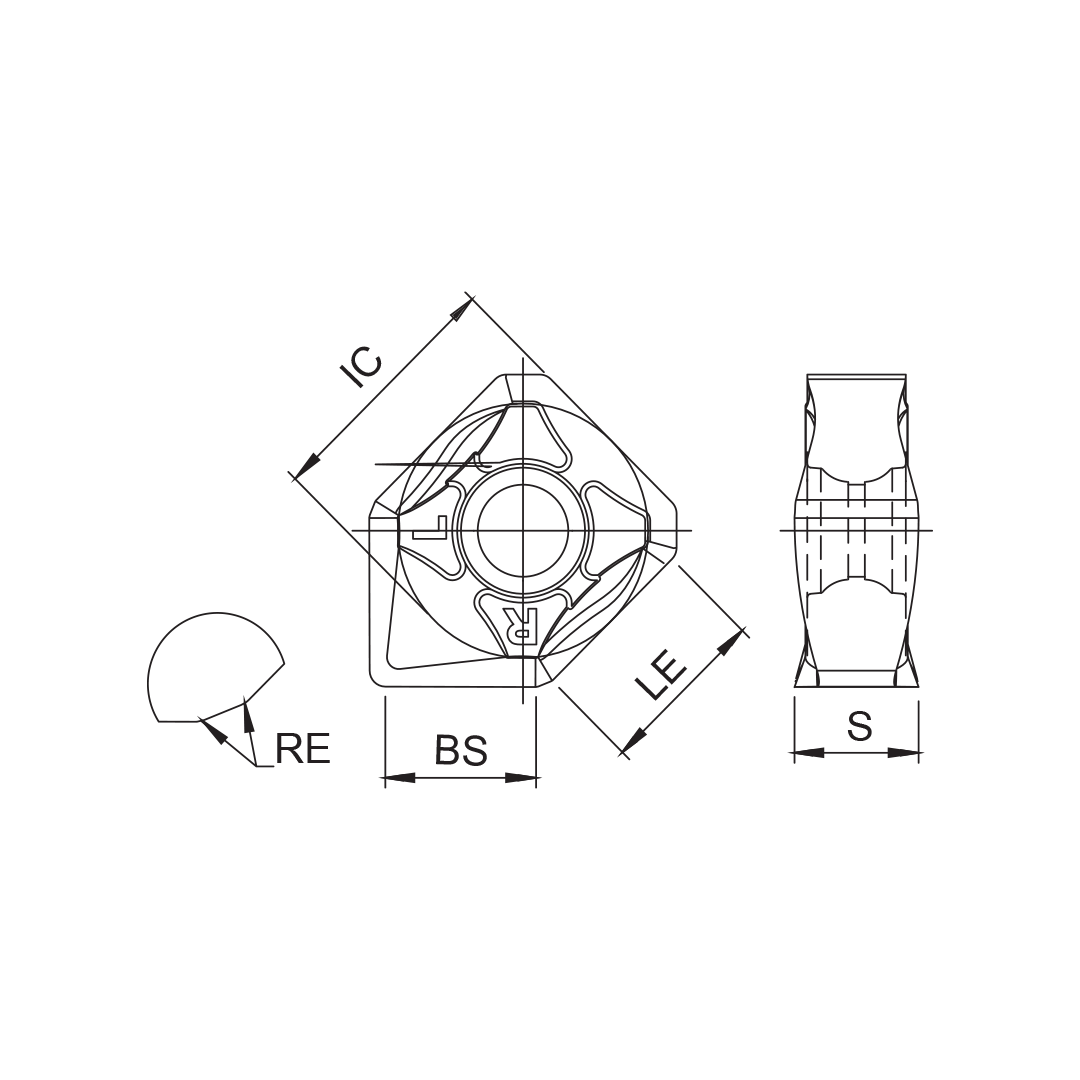

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
9.3 mm
Corner radius (RE)
0.4 mm
Hand (HAND)
N
Grade (GRADE)
PH7910
Insert thickness (S)
6.3 mm
Wiper edge length (BS)
7.6 mm
Chip breaker manufacturer's designation (CBMD)
W
Fixing hole diameter (D1)
0.1811 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (150 - 300)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.4 - 6)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.4 - 6)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.4 - 6)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.4 - 6)
