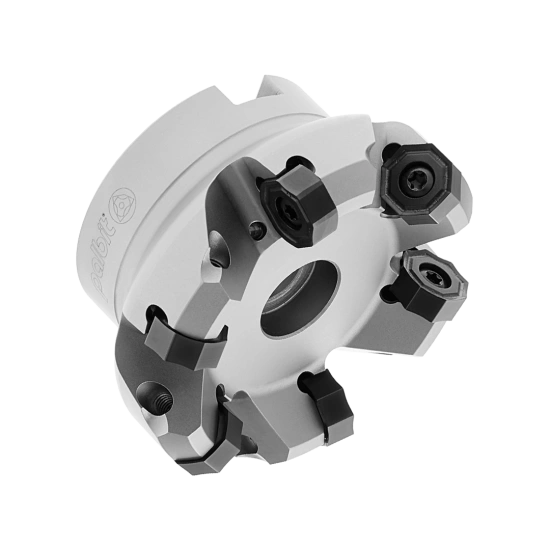

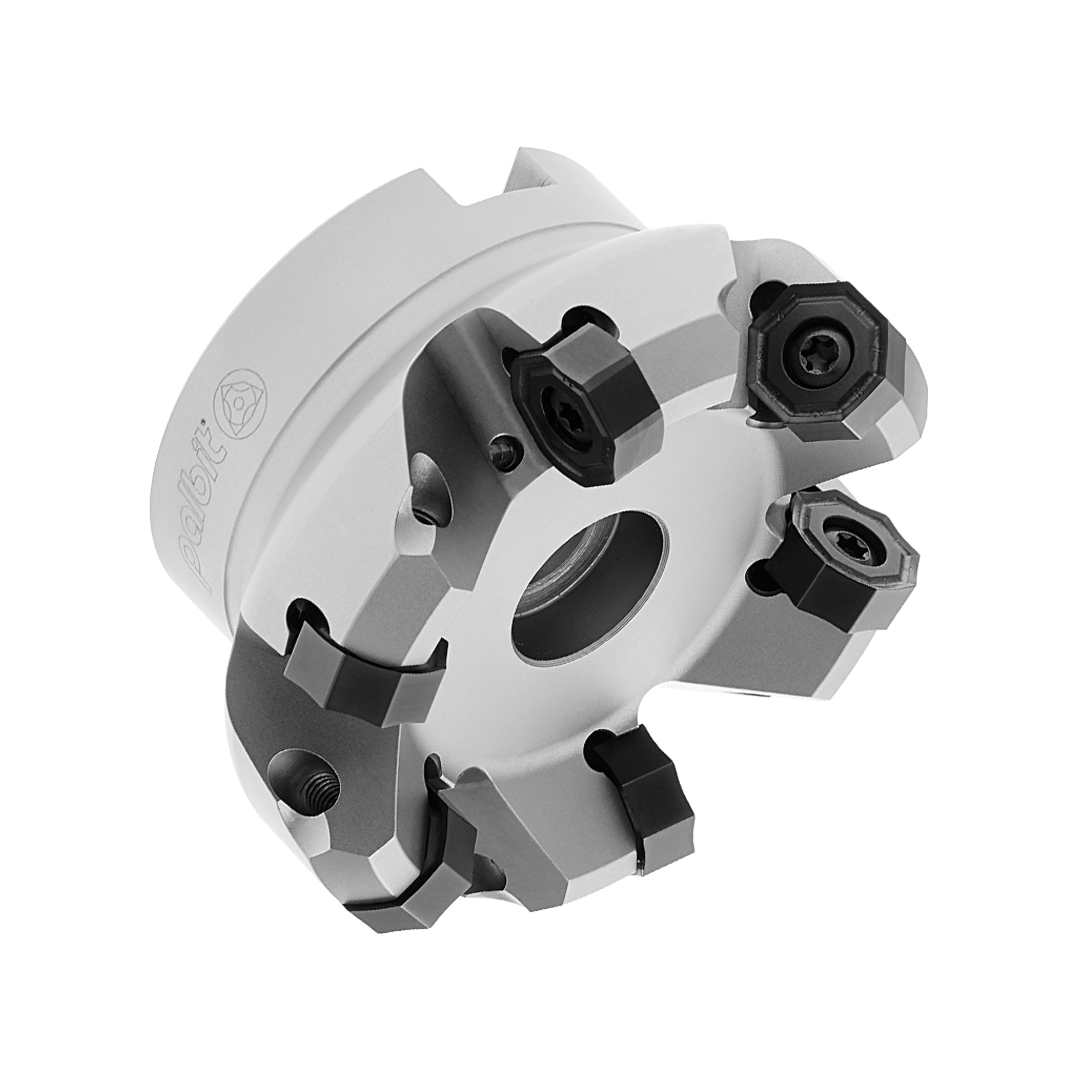

MILLING TOOL 100A90845-08-06-032050
181117900 | FRESA 100A90845-08-06-032050
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
3 mm
Axial rake angle (GAMP)
-6
Connection diameter (DCONMS)
32 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
100 mm
Maximum cutting diameter (DCX)
107.6 mm
Cutting diameter 2 (DC2)
97.1 mm
Maximum cutting diameter 2 (DCX2)
112 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
50 mm
Radial rake angle (GAMF)
-9
Cutting item count (CICT)
8
Contact surface diameter machine side (DCSFMS)
80 mm
Torque (TQ)
3
Related products
Spare parts
KEY SD6368-16
Article code
290058100
Reference
SD6368-16
SCREW J0164110
Article code
119163100
Reference
J0164110
SCREW P0401200
Article code
290047500
Reference
P0401200
Overall length (OAL)
11 mm
Thread pitch(TP)
0.7
Head Diameter (HDD)
5.5 mm
Thread Diameter Size (TDZ)
M4
Length1 (L1)
6.2
Torx
15
TORX KEY DT1530
Article code
290047800
Reference
DT1530
