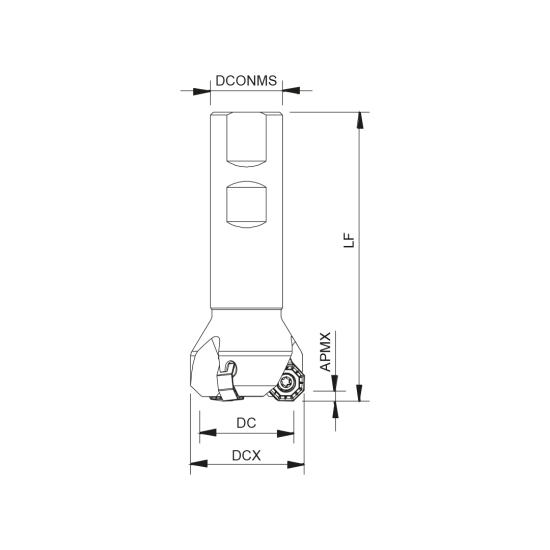

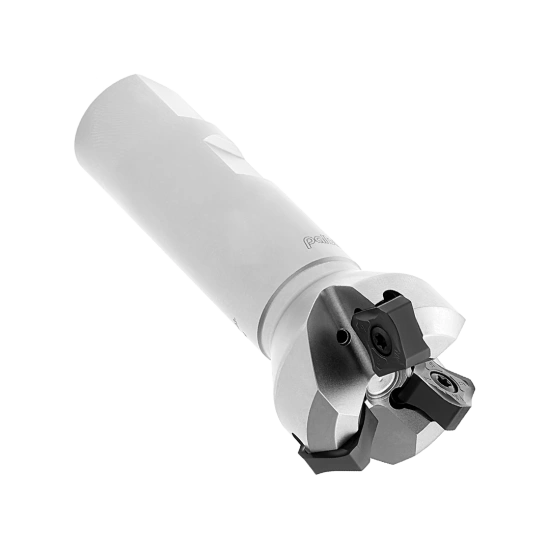

MILLING TOOL 040W90845-04-06-032110
181118100 | FRESA 040W90845-04-06-032110
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
3 mm
Axial rake angle (GAMP)
-6
Connection diameter (DCONMS)
32 mm
Adaptive interface machine direction (ADINTMS)
Weldon Shank
Cutting diameter (DC)
40 mm
Maximum cutting diameter (DCX)
47.6 mm
Cutting diameter 2 (DC2)
37.1 mm
Maximum cutting diameter 2 (DCX2)
52 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
110 mm
Radial rake angle (GAMF)
-9
Cutting item count (CICT)
4
Contact surface diameter machine side (DCSFMS)
32 mm
Torque (TQ)
3
Related products
Spare parts
SCREW P0401200
Article code
290047500
Reference
P0401200
Overall length (OAL)
11 mm
Thread pitch(TP)
0.7
Head Diameter (HDD)
5.5 mm
Thread Diameter Size (TDZ)
M4
Length1 (L1)
6.2
Torx
15
TORX KEY DT1530
Article code
290047800
Reference
DT1530
TORX KEY XT15-S35
Article code
290012400
Reference
XT15-S35
