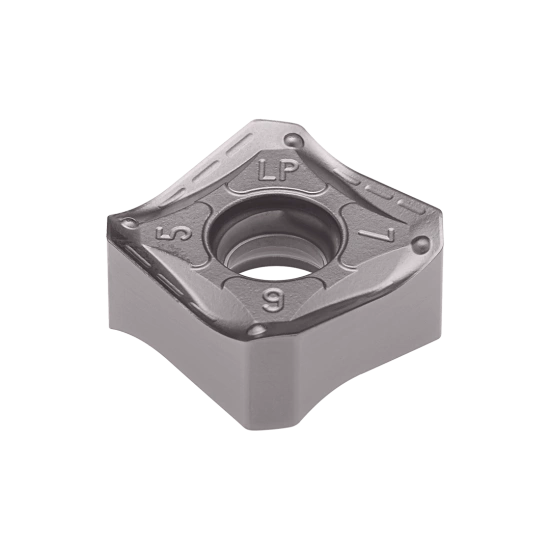

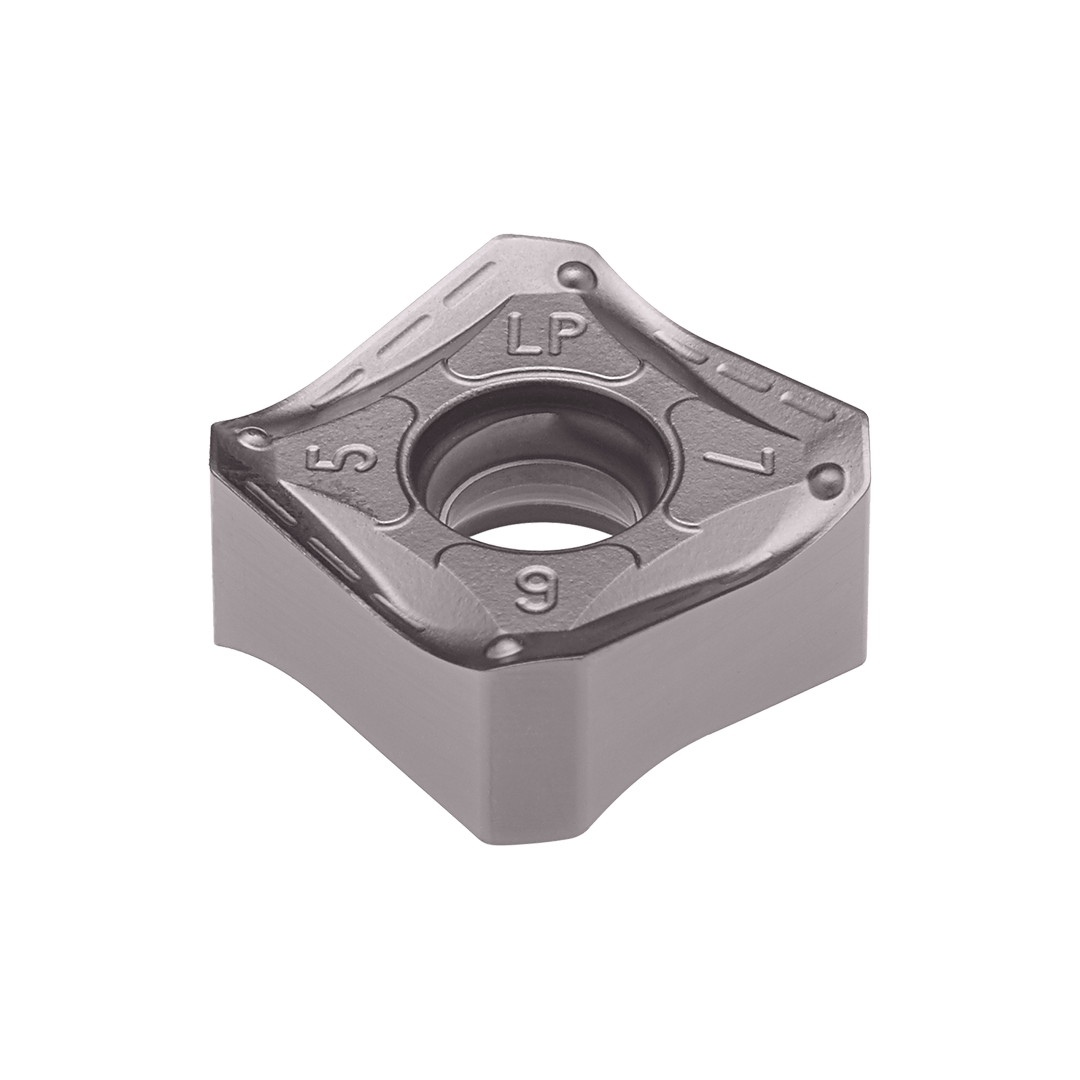

INSERT SNHX 1206 ANEN-LP PH7930
1111452P3 | PAST. SNHX 1206 ANEN-LP PH7930
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8

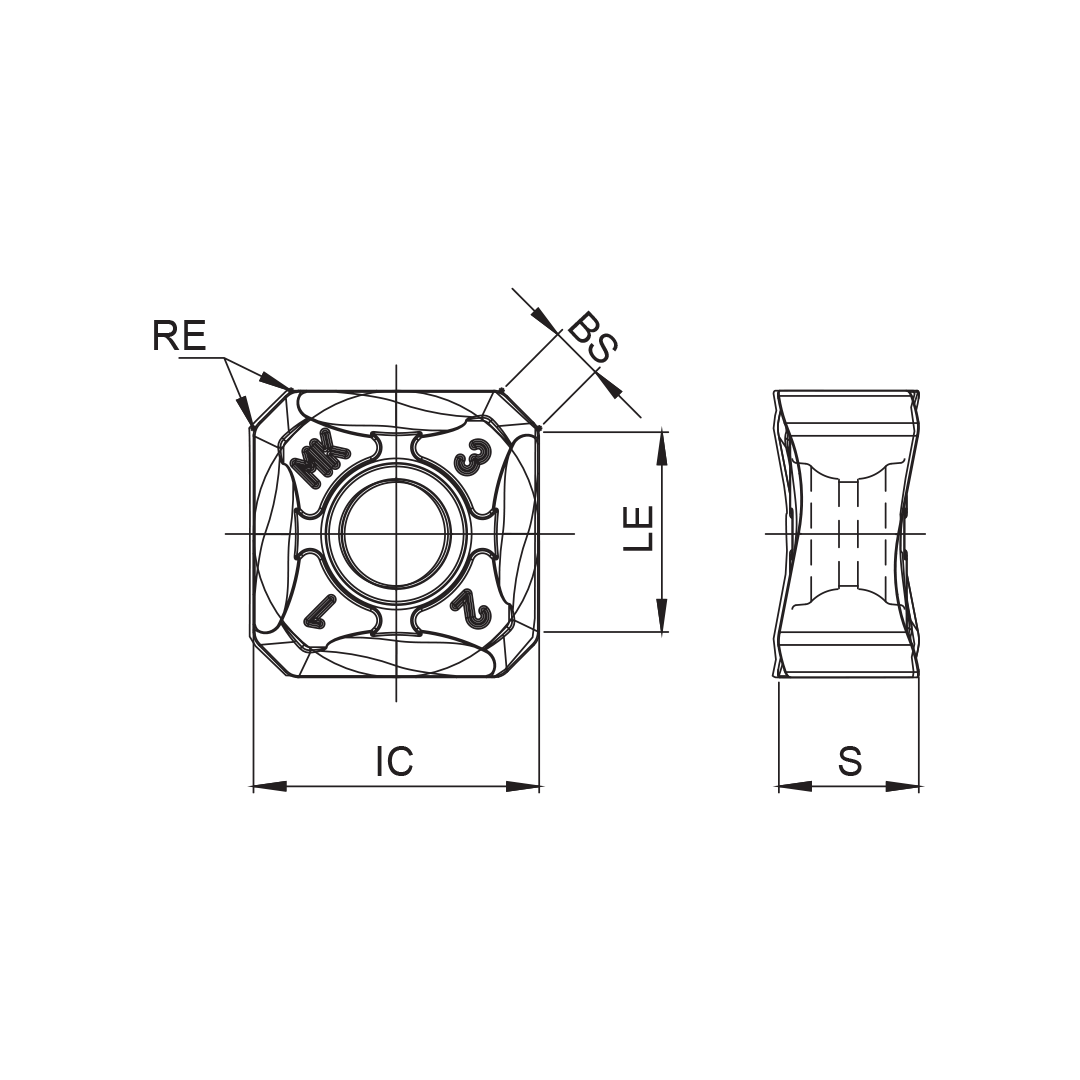

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
9.3 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH7930
Insert thickness (S)
6.35 mm
Wiper edge length (BS)
2 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.1811 mm
Tolerance class insert (TCINS)
H
Start values
- M
VC (m/min) (100 - 200)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
- P
VC (m/min) (120 - 220)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
- S
VC (m/min) (30 - 100)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
FZ (mm/t) (0.07 - 0.4)
AP (mm) (0.8 - 6)
