INSERT SNHX 1206 ANEN-LP PH6740
1111452I5 | PAST. SNHX 1206 ANEN-LP PH6740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8
Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
9.3 mm
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH6740
Insert thickness (S)
6.35 mm
Wiper edge length (BS)
2 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.1811 mm
Tolerance class insert (TCINS)
H

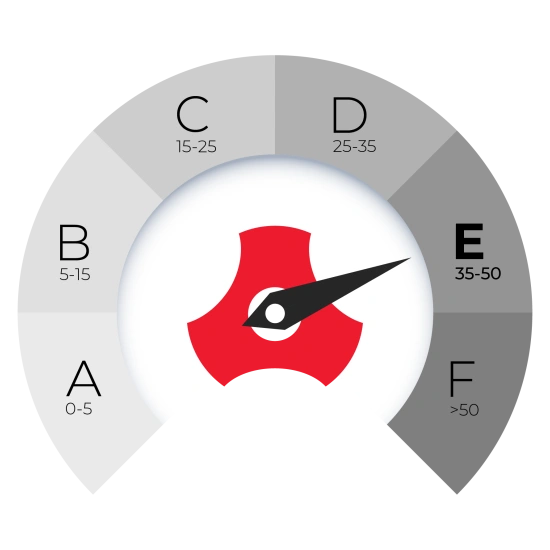

PCF Classification
Start values
- K
- P
AP (mm) (1 - 3)
