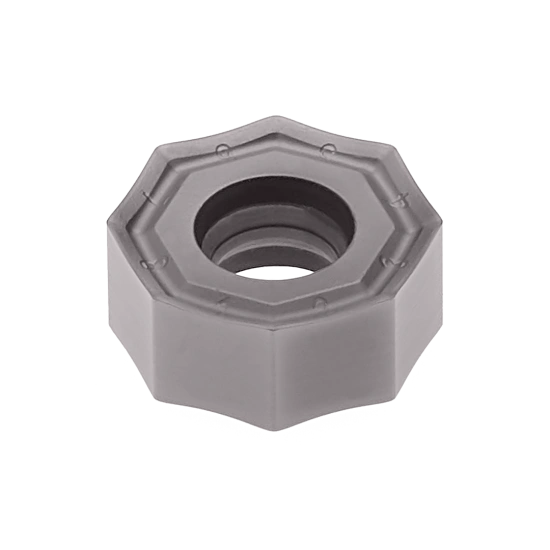

INSERT ONKX 050505 ANEN-LP PH7740
1112301G6 | PAST. ONKX 050505 ANEN-LP PH7740
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

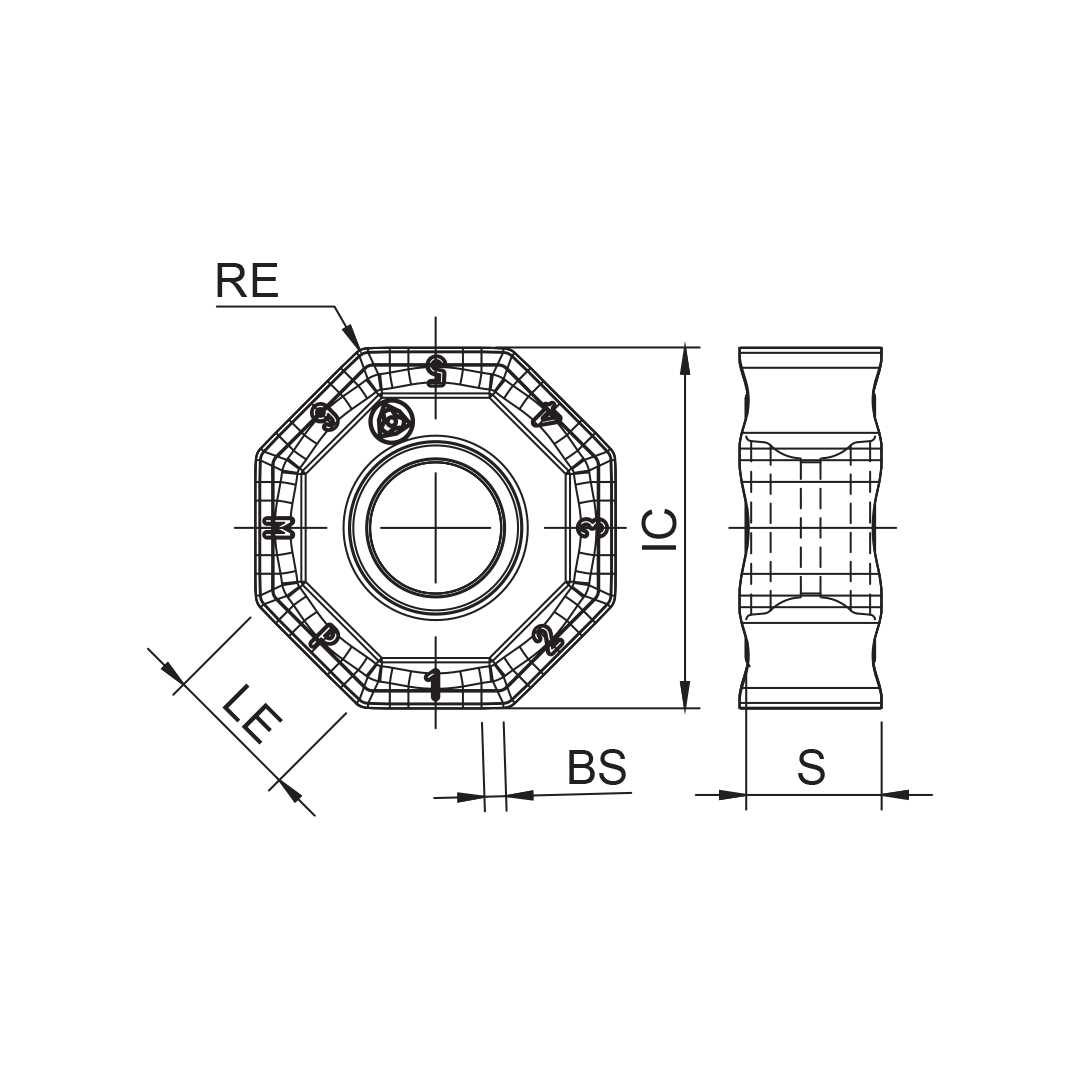

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
5.3 mm
Corner radius (RE)
0.5 mm
Hand (HAND)
N
Grade (GRADE)
PH7740
Insert thickness (S)
5.2 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.2098 mm
Tolerance class insert (TCINS)
K
Start values
- M
VC (m/min) (100 - 180)
AP (mm) (0.5 - 3)
AP (mm) (0.5 - 3)
- P
VC (m/min) (100 - 200)
AP (mm) (0.5 - 3)
AP (mm) (0.5 - 3)
- S
VC (m/min) (25 - 120)
AP (mm) (0.5 - 3)
AP (mm) (0.5 - 3)
