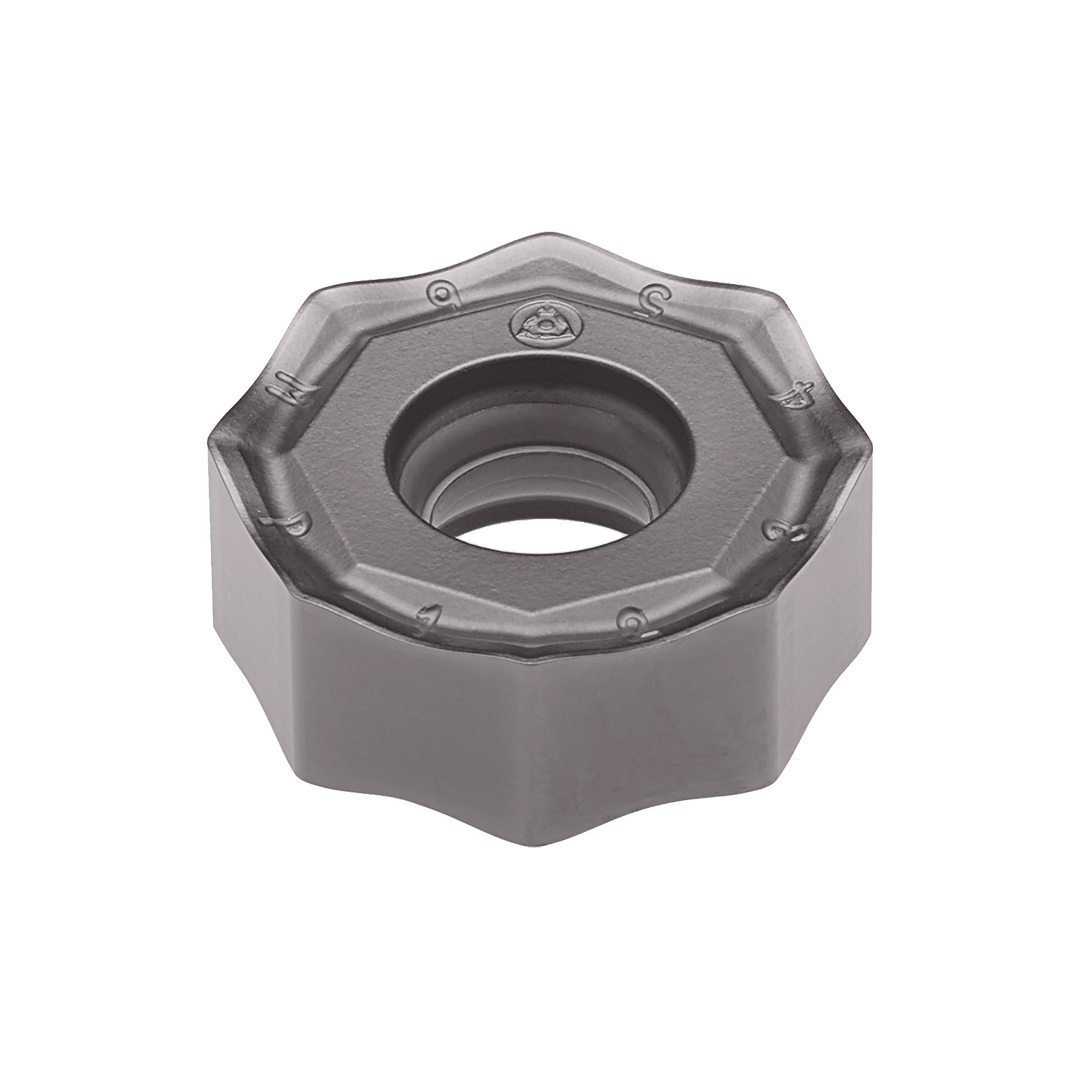

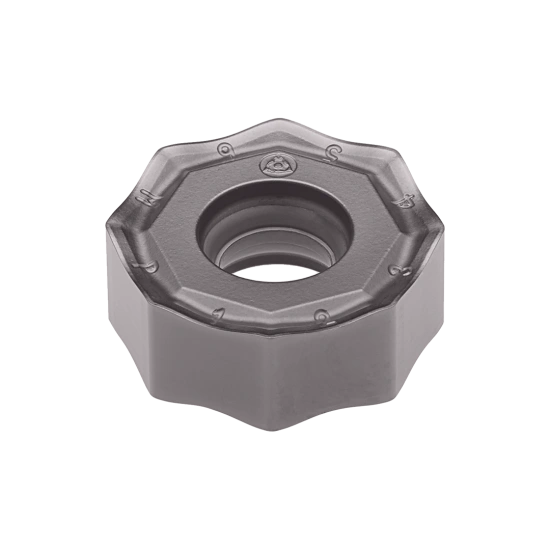

INSERT ONHX 050505 ANSN-MP PH7930
1112304P3 | PAST. ONHX 050505 ANSN-MP PH7930
Product data
Material classification level 1 (TMC1ISO)
- P
- M
- K
- S
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16
Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
5.3 mm
Corner radius (RE)
0.5 mm
Hand (HAND)
N
Grade (GRADE)
PH7930
Insert thickness (S)
5.2 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.2098 mm
Tolerance class insert (TCINS)
H
