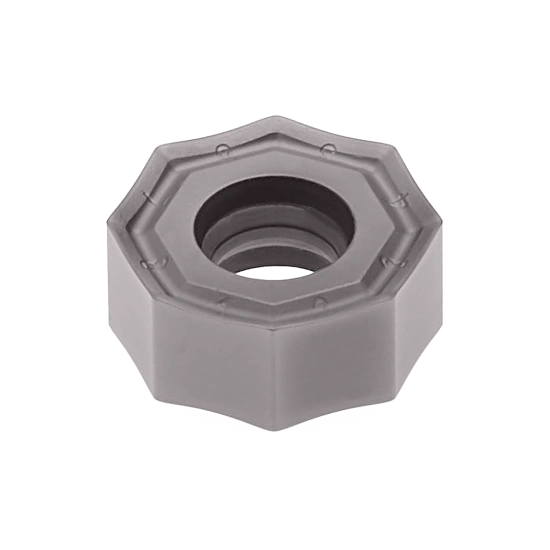

INSERT ONHX 050505 ANEN-LP PH7920
1112302G4 | PAST. ONHX 050505 ANEN-LP PH7920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

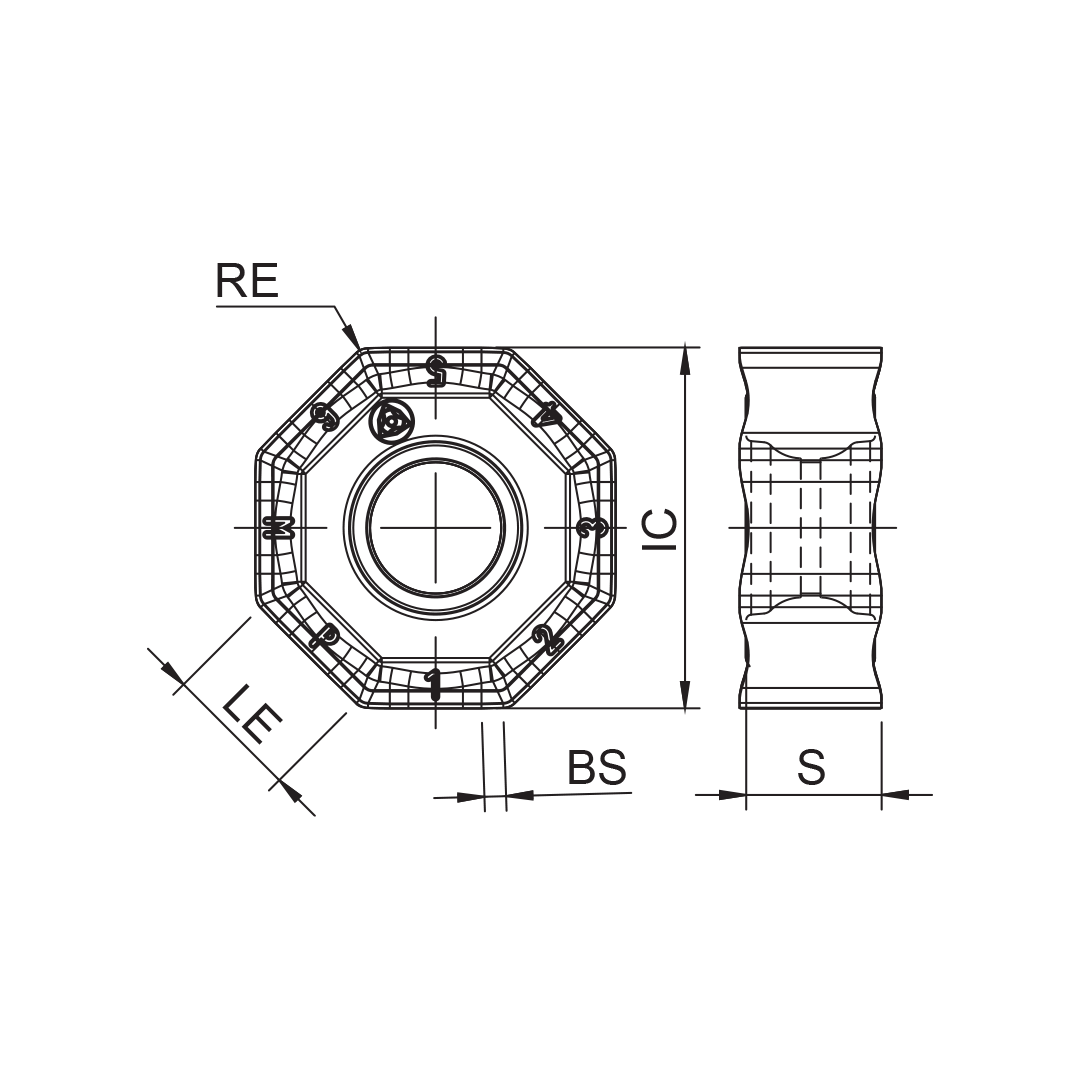

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
5.3 mm
Corner radius (RE)
0.5 mm
Hand (HAND)
N
Grade (GRADE)
PH7920
Insert thickness (S)
5.2 mm
Chip breaker manufacturer's designation (CBMD)
LP
Fixing hole diameter (D1)
0.2098 mm
Tolerance class insert (TCINS)
H
Start values
- M
VC (m/min) (120 - 220)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
- P
VC (m/min) (140 - 240)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
- S
VC (m/min) (30 - 110)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
FZ (mm/t) (0.07 - 0.35)
AP (mm) (0.5 - 3.5)
