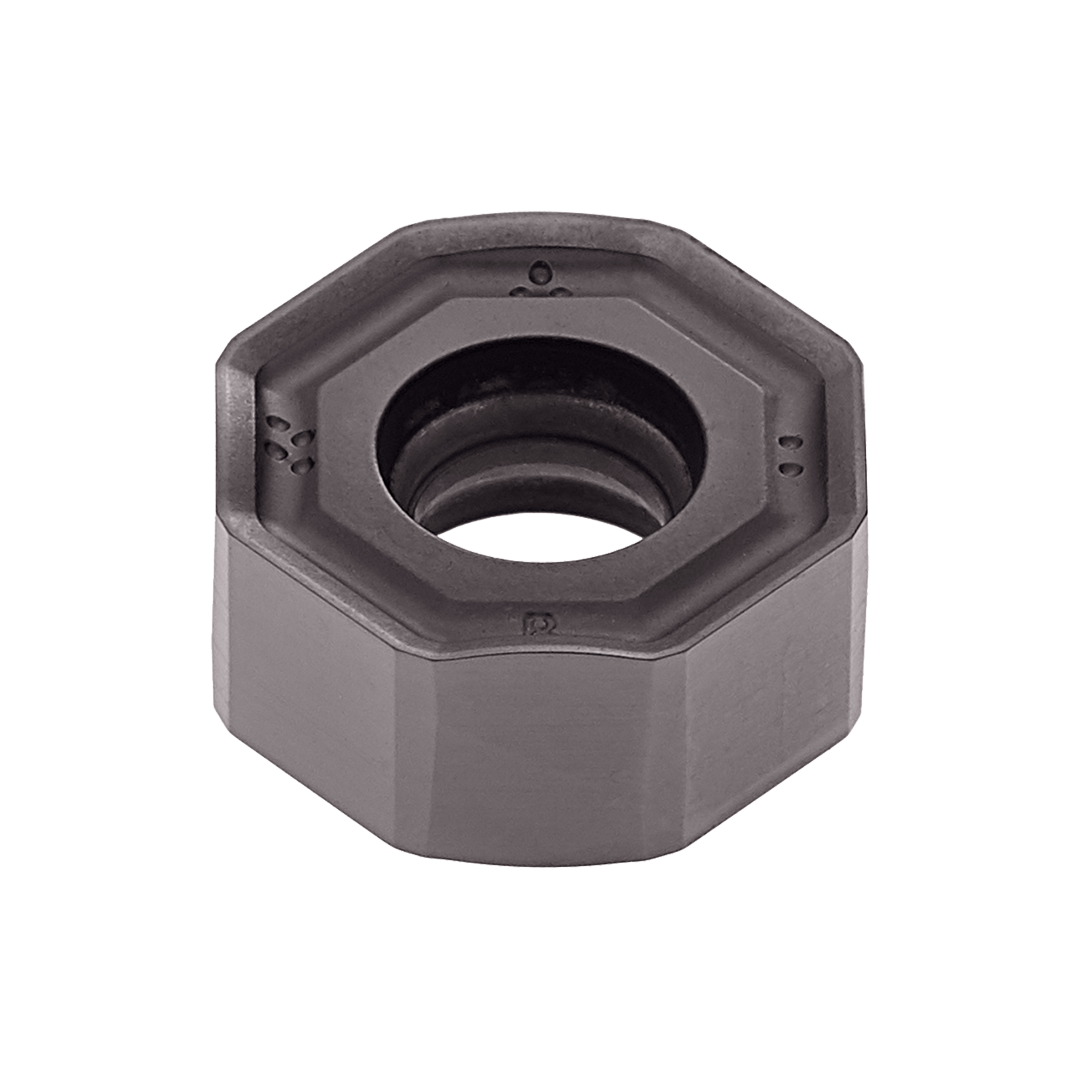

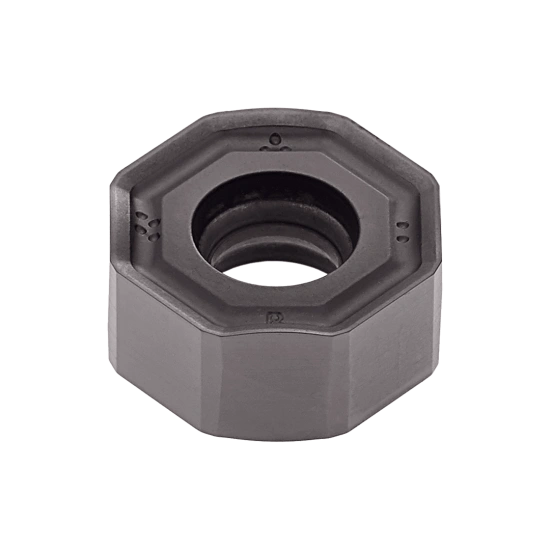

INSERT ONHX 050500 ANER-W PHP920
1112307T1 | PAST. ONHX 050500 ANER-W PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
8

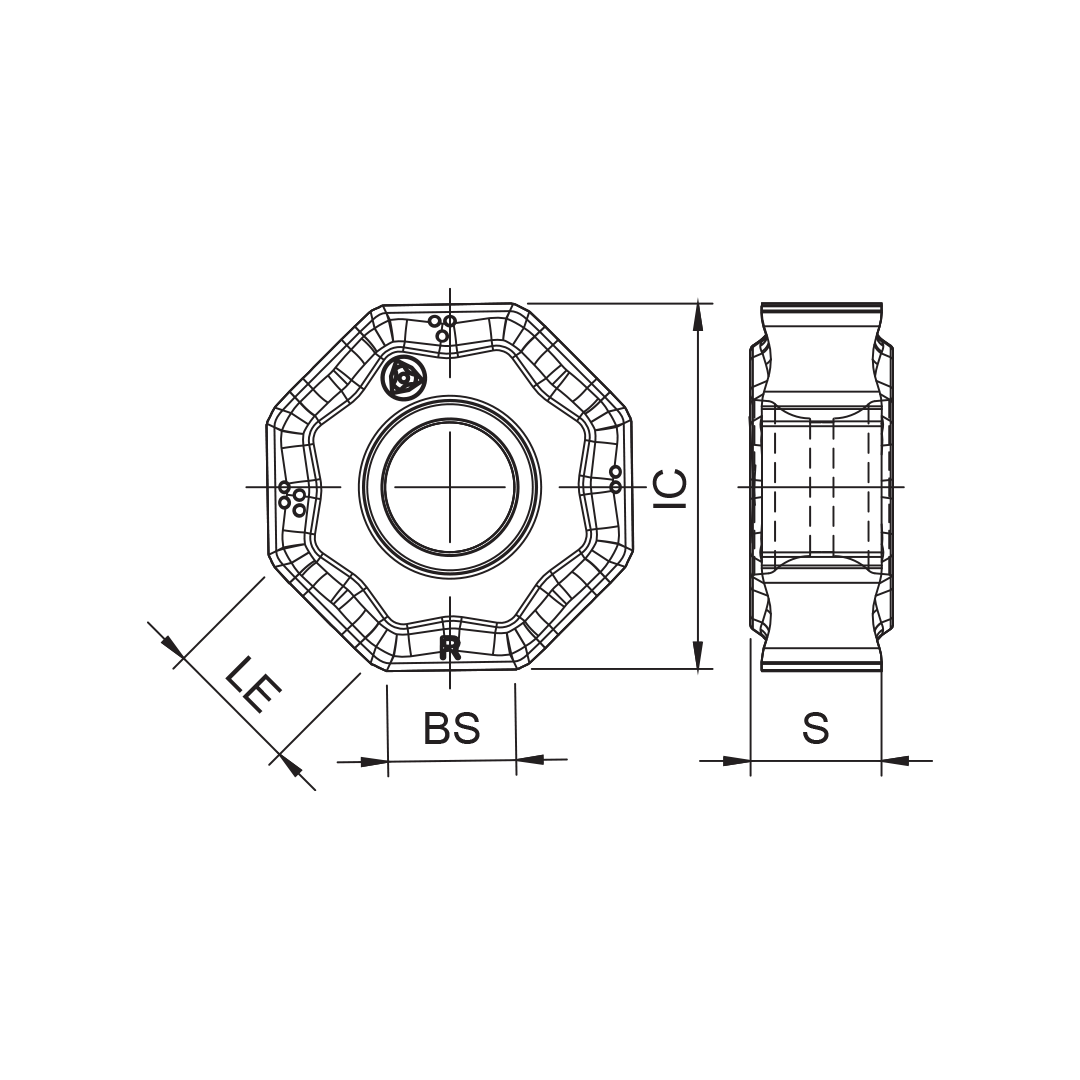

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
5.3 mm
Corner radius (RE)
0 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Insert thickness (S)
5.2 mm
Wiper edge length (BS)
4.3 mm
Chip breaker manufacturer's designation (CBMD)
W
Fixing hole diameter (D1)
0.2098 mm
Tolerance class insert (TCINS)
H
