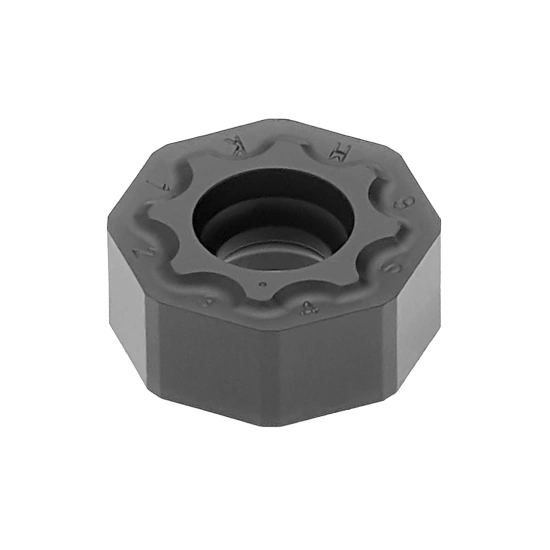

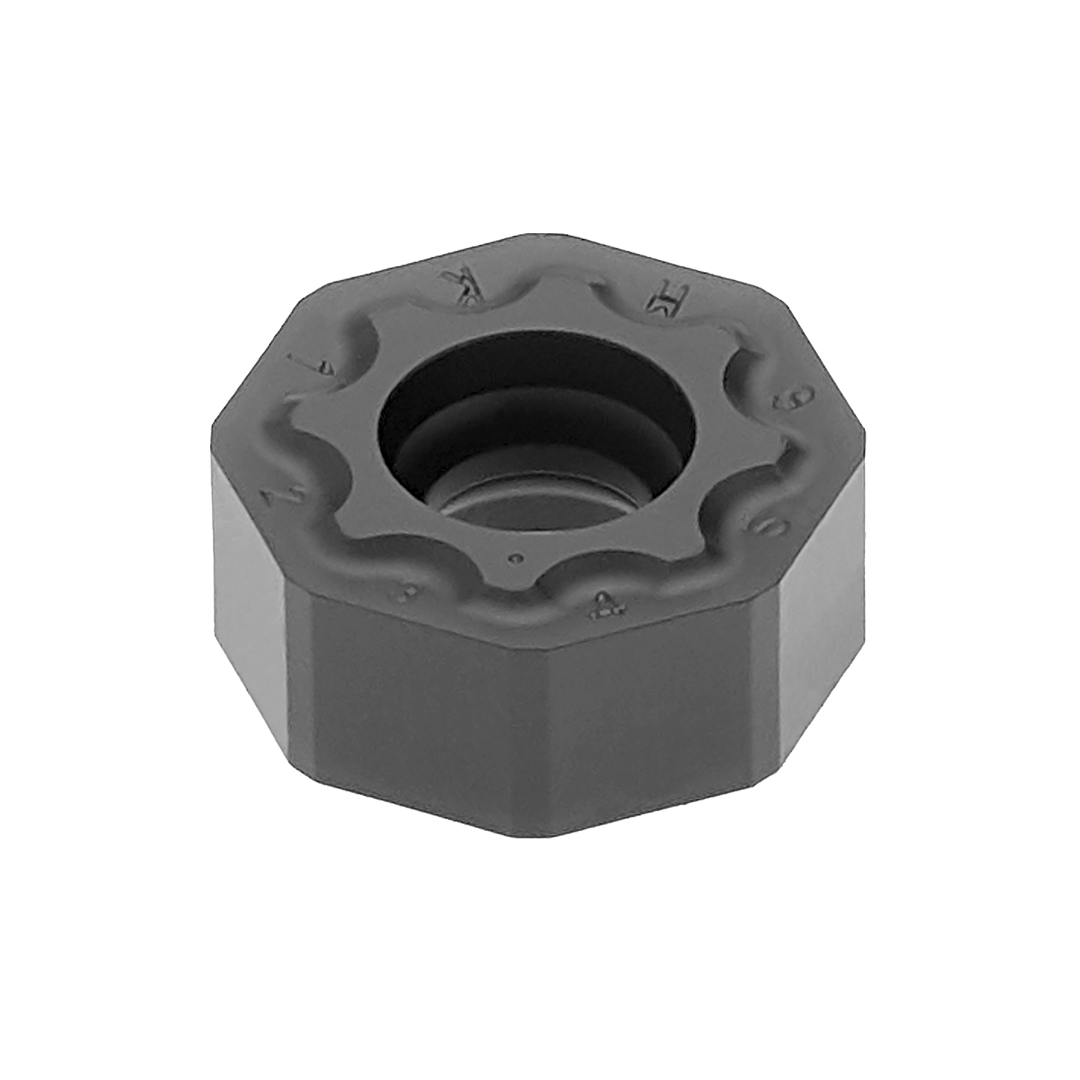

INSERT ONHX 050500 ANEN-MK PH5705
1112306L5 | PAST. ONHX 050500 ANEN-MK PH5705
Product data
Material classification level 1 (TMC1ISO)
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
16

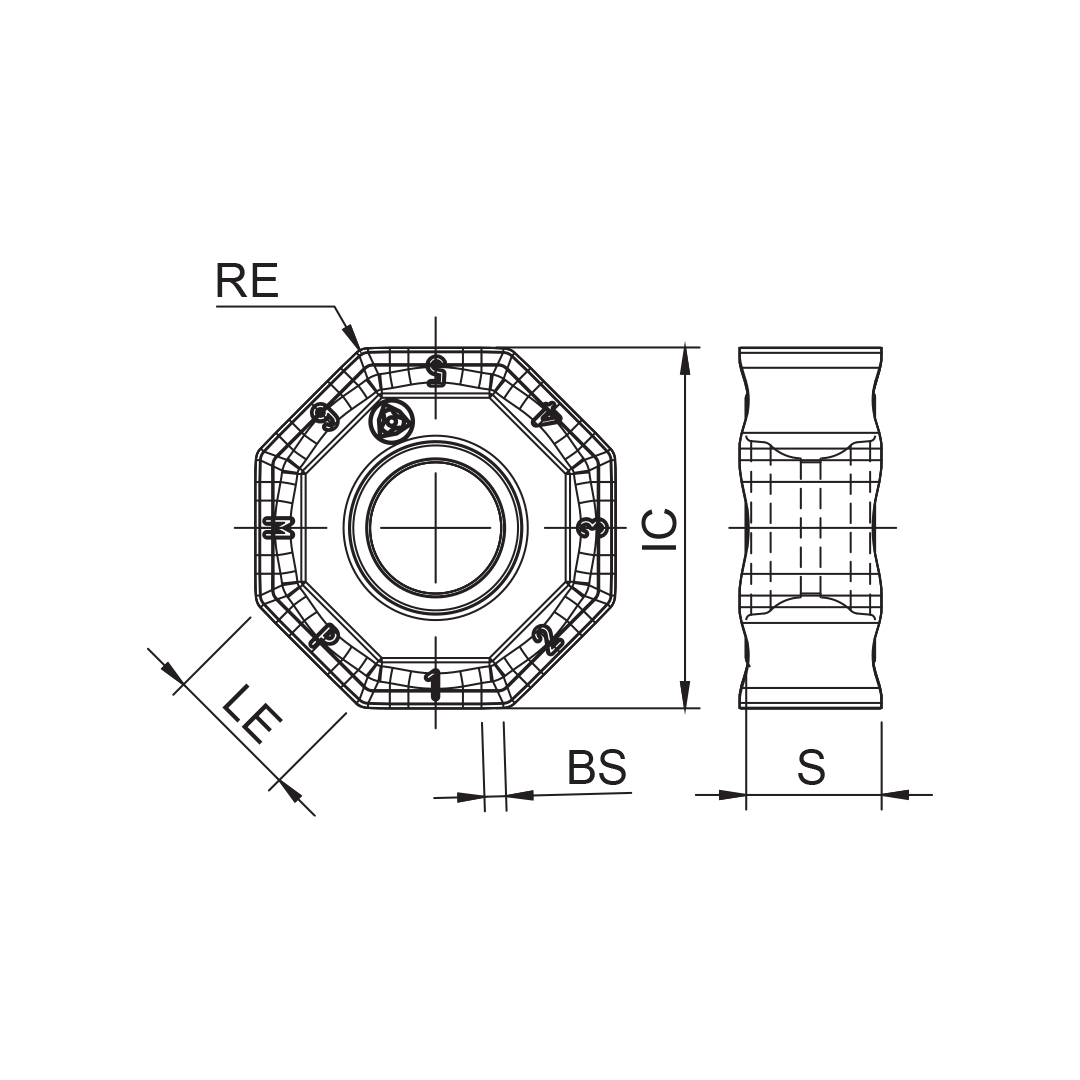

Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
O
Cutting edge effective length (LE)
5.3 mm
Corner radius (RE)
0.5 mm
Hand (HAND)
N
Grade (GRADE)
PH5705
Insert thickness (S)
5.2 mm
Chip breaker manufacturer's designation (CBMD)
MK
Fixing hole diameter (D1)
0.2047 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (160 - 350)
AP (mm) (0.5 - 3)
AP (mm) (0.5 - 3)
