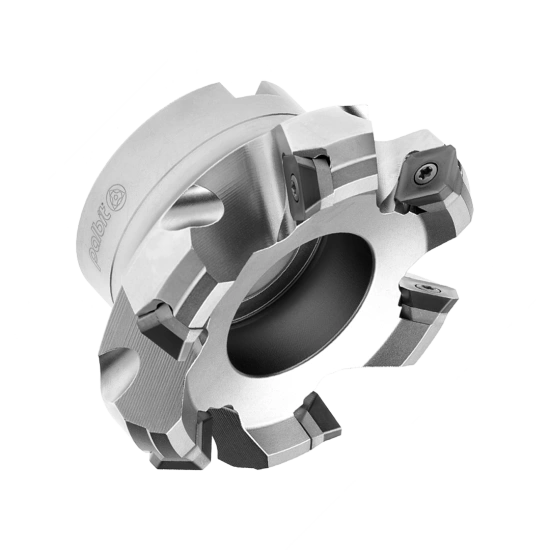

MILLING TOOL 125A09945-08-21-U040063
181024500 | FRESA 125A09945-08-21-U040063
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
6 mm
Axial rake angle (GAMP)
20
Connection diameter (DCONMS)
40 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
125 mm
Maximum cutting diameter (DCX)
138 mm
Tool cutting edge angle (KAPR)
45
Functional length (LF)
63 mm
Radial rake angle (GAMF)
-11
Cutting item count (CICT)
8
Contact surface diameter machine side (DCSFMS)
90 mm
Torque (TQ)
3
Related products
Spare parts
SCREW P0351200
Article code
290005800
Reference
P0351200
SCREW T0503509
Article code
290030400
Reference
T0503509
SHIM CS130300
Article code
116022223
Reference
CS130300
TORX KEY DT1530
Article code
290047800
Reference
DT1530
