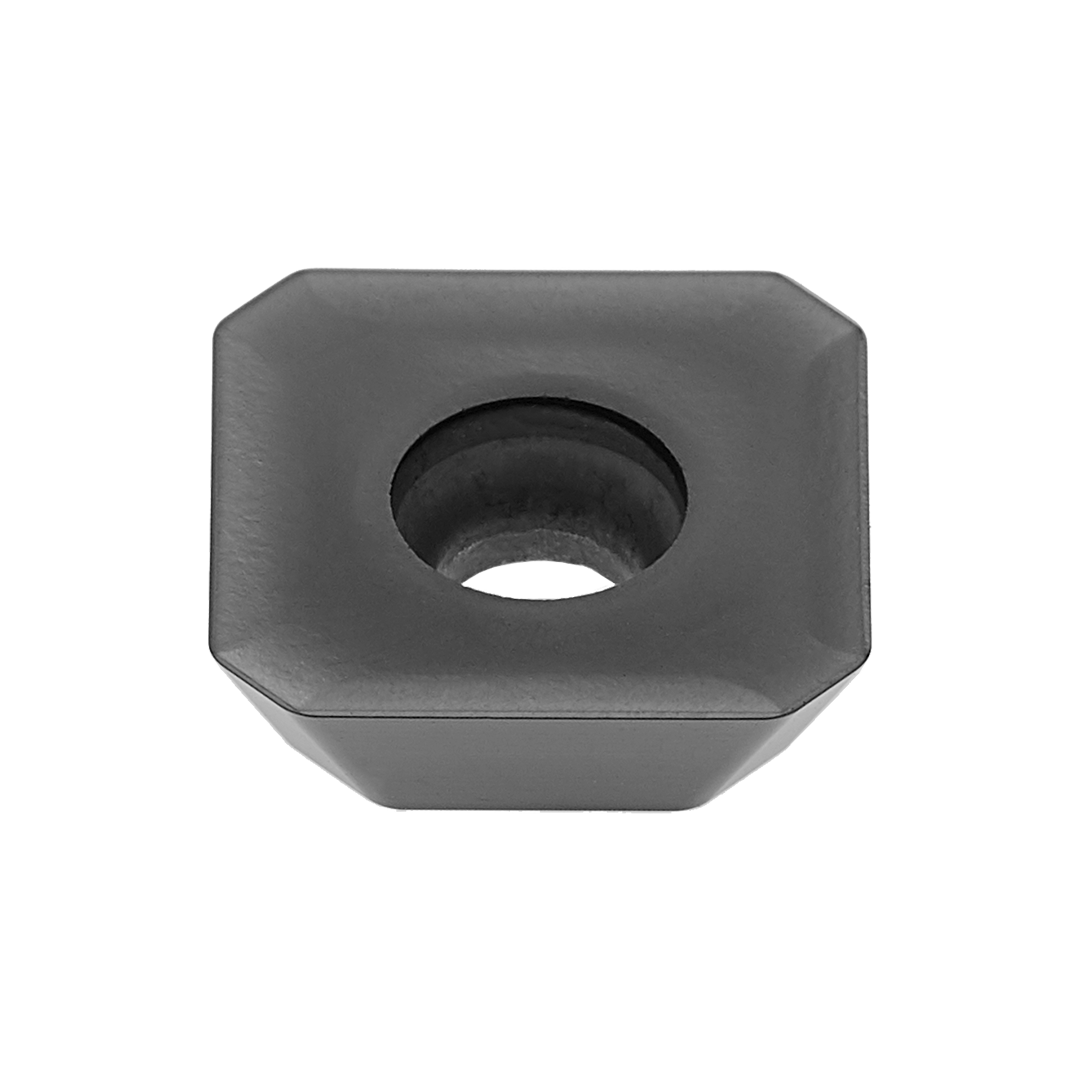

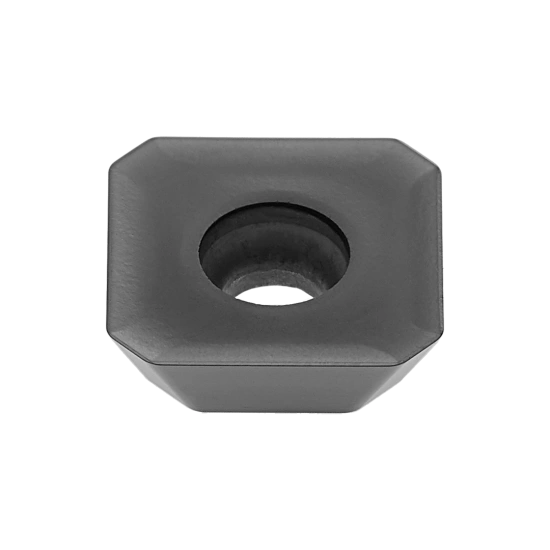

INSERT SEHT 13T3 AGTN PH6135

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

111093186 | PAST. SEHT 13T3 AGTN PH6135

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Face Milling

Cutting edge count (CEDC)

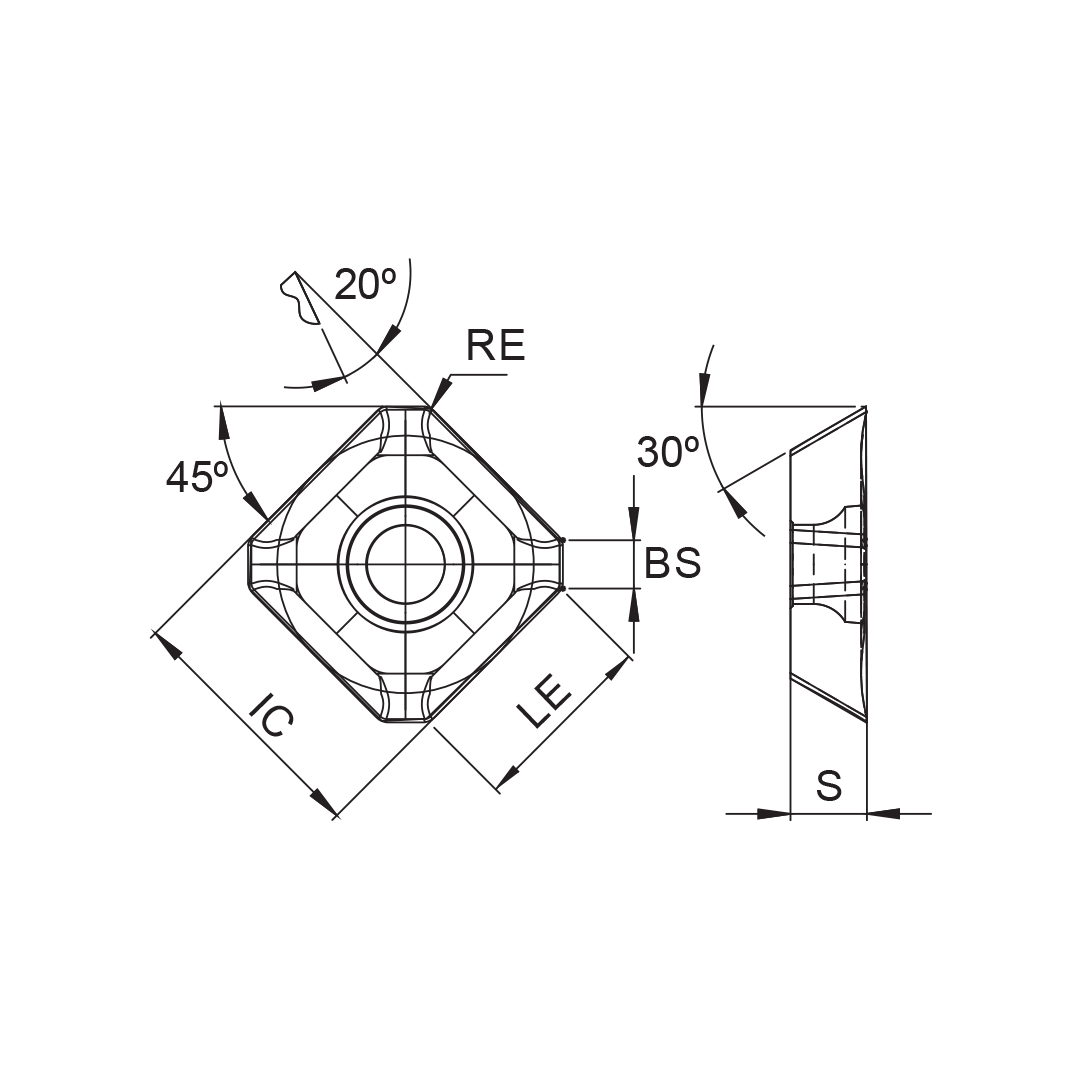

Inscribed circle diameter (IC)

13.35 mm

Insert shape code (SC)

Cutting edge effective length (LE)

10 mm

Corner radius (RE)

1 mm

Hand (HAND)

Grade (GRADE)

PH6135

Insert thickness (S)

3.97 mm

Fixing hole diameter (D1)

0.1614 mm

Tolerance class insert (TCINS)
