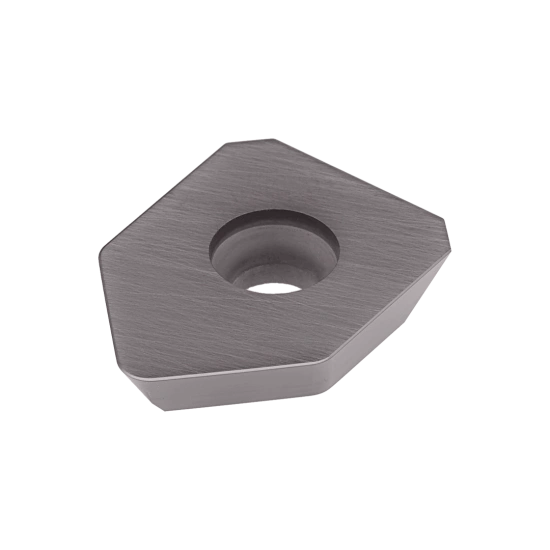

INSERT SEHT 13T3 AGSN-W PHP920
1110627T1 | PAST. SEHT 13T3 AGSN-WIPER PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Face Milling
Cutting edge count (CEDC)
4

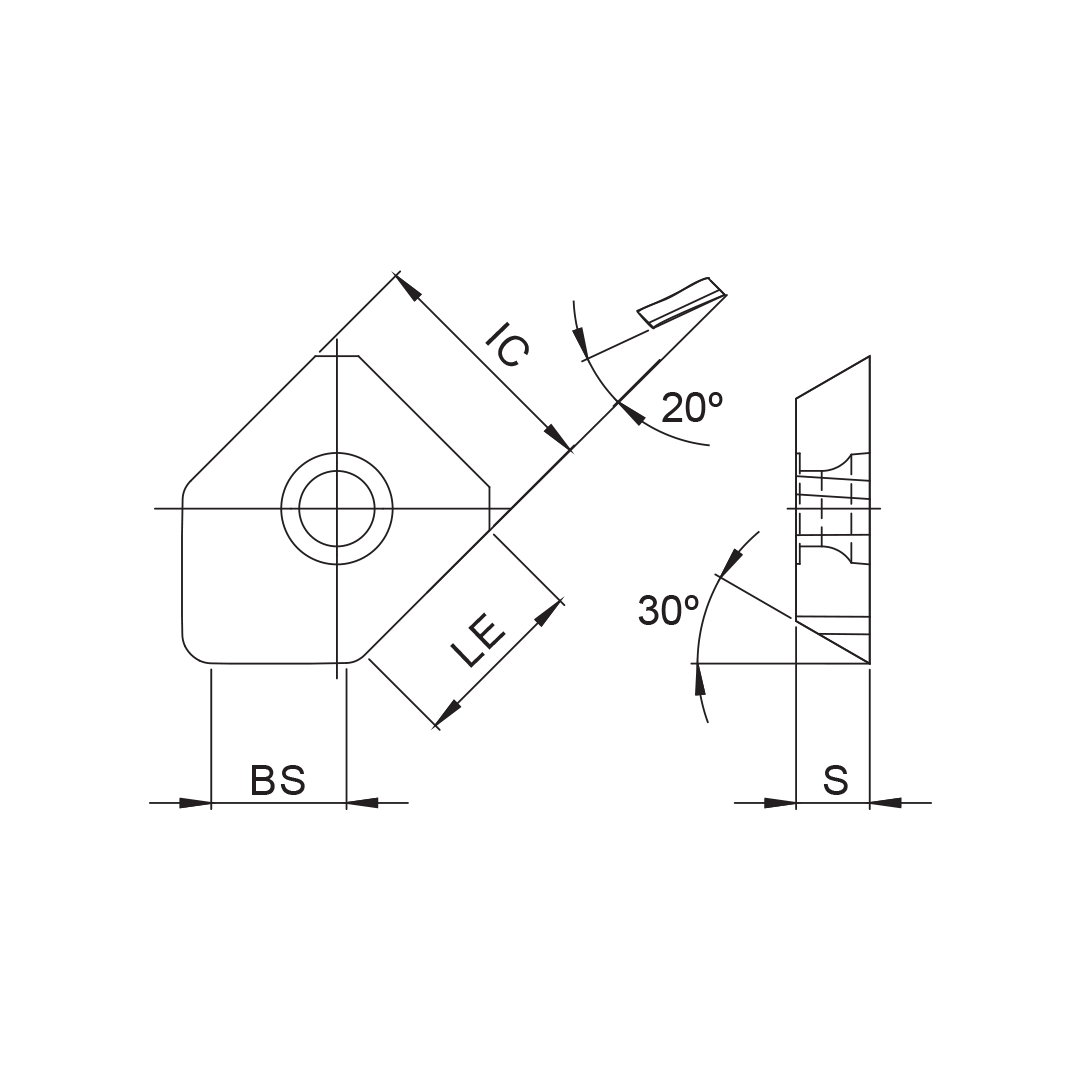

Inscribed circle diameter (IC)
13.35 mm
Insert shape code (SC)
S
Cutting edge effective length (LE)
10 mm
Corner radius (RE)
1.6 mm
Hand (HAND)
N
Grade (GRADE)
PHP920
Insert thickness (S)
3.97 mm
Wiper edge length (BS)
8.2 mm
Chip breaker manufacturer's designation (CBMD)
W
Fixing hole diameter (D1)
0.1614 mm
Tolerance class insert (TCINS)
H
