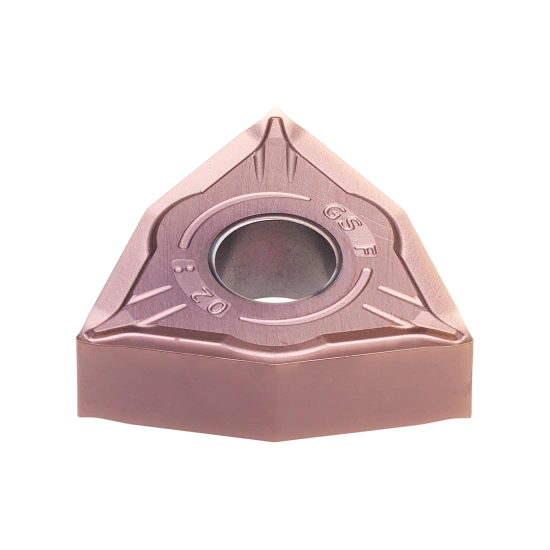

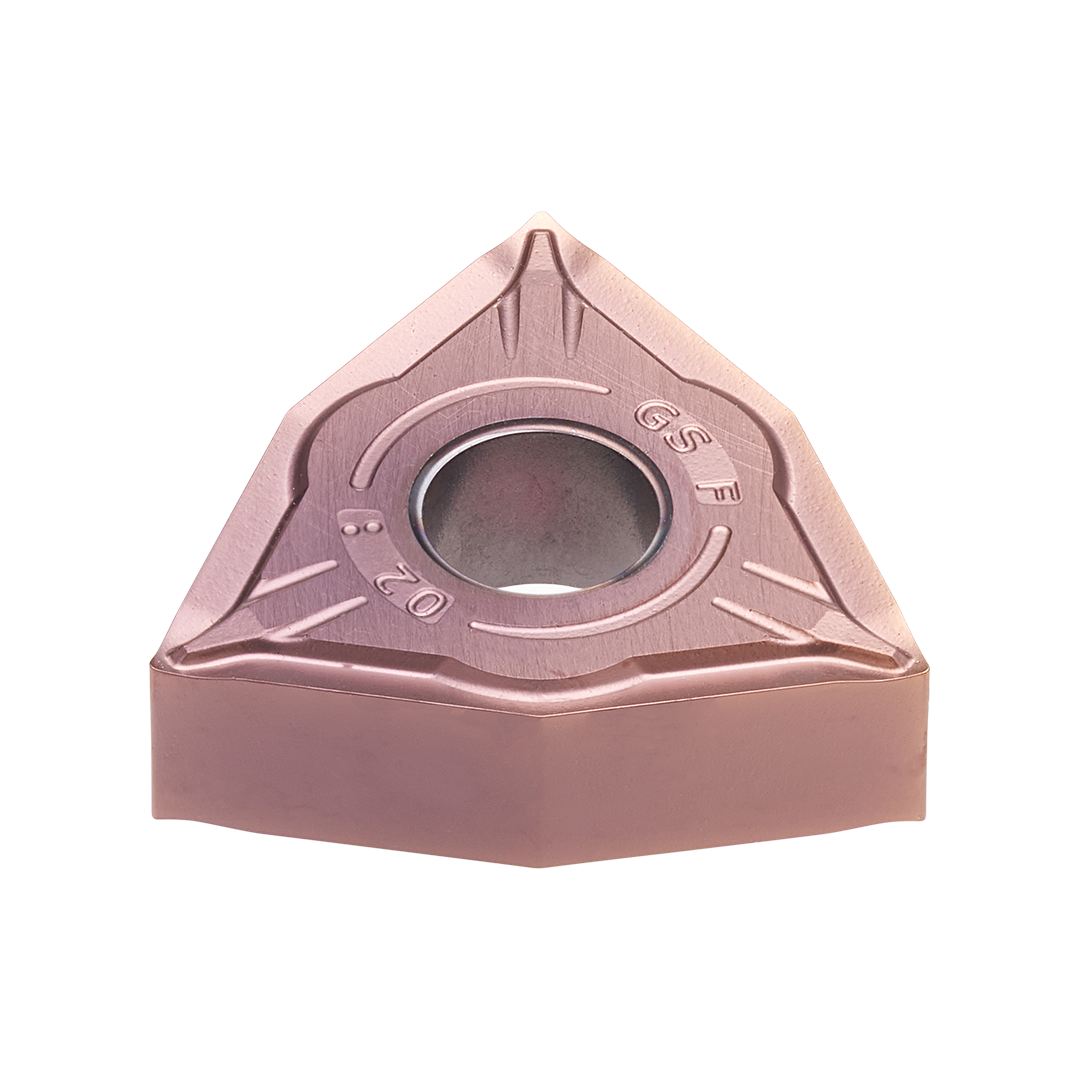

INSERT WNMG 080402-GSF PHH910
1124859X6 | PAST. WNMG 080402-GSF PHH910
Product data
Material classification level 1 (TMC1ISO)
- P
- H
Operation type (CTPT)
External Turning, Internal Turning
Cutting edge count (CEDC)
2403
Inscribed circle diameter (IC)
12.7 mm
Insert shape code (SC)
W
Corner radius (RE)
0.2 mm
Hand (HAND)
R
Grade (GRADE)
PHH910
Insert thickness (S)
4.76 mm
Chip breaker manufacturer's designation (CBMD)
SF
Fixing hole diameter (D1)
5.16 mm
Tolerance class insert (TCINS)
M
Start values
- M
VC (m/min) (100 - 230)
FN (mm/r) (0.08 - 0.25)
AP (mm) (0.1 - 2.5)
FN (mm/r) (0.08 - 0.25)
AP (mm) (0.1 - 2.5)
- S
VC (m/min) (40 - 150)
FN (mm/r) (0.08 - 0.25)
AP (mm) (0.1 - 2.5)
FN (mm/r) (0.08 - 0.25)
AP (mm) (0.1 - 2.5)
