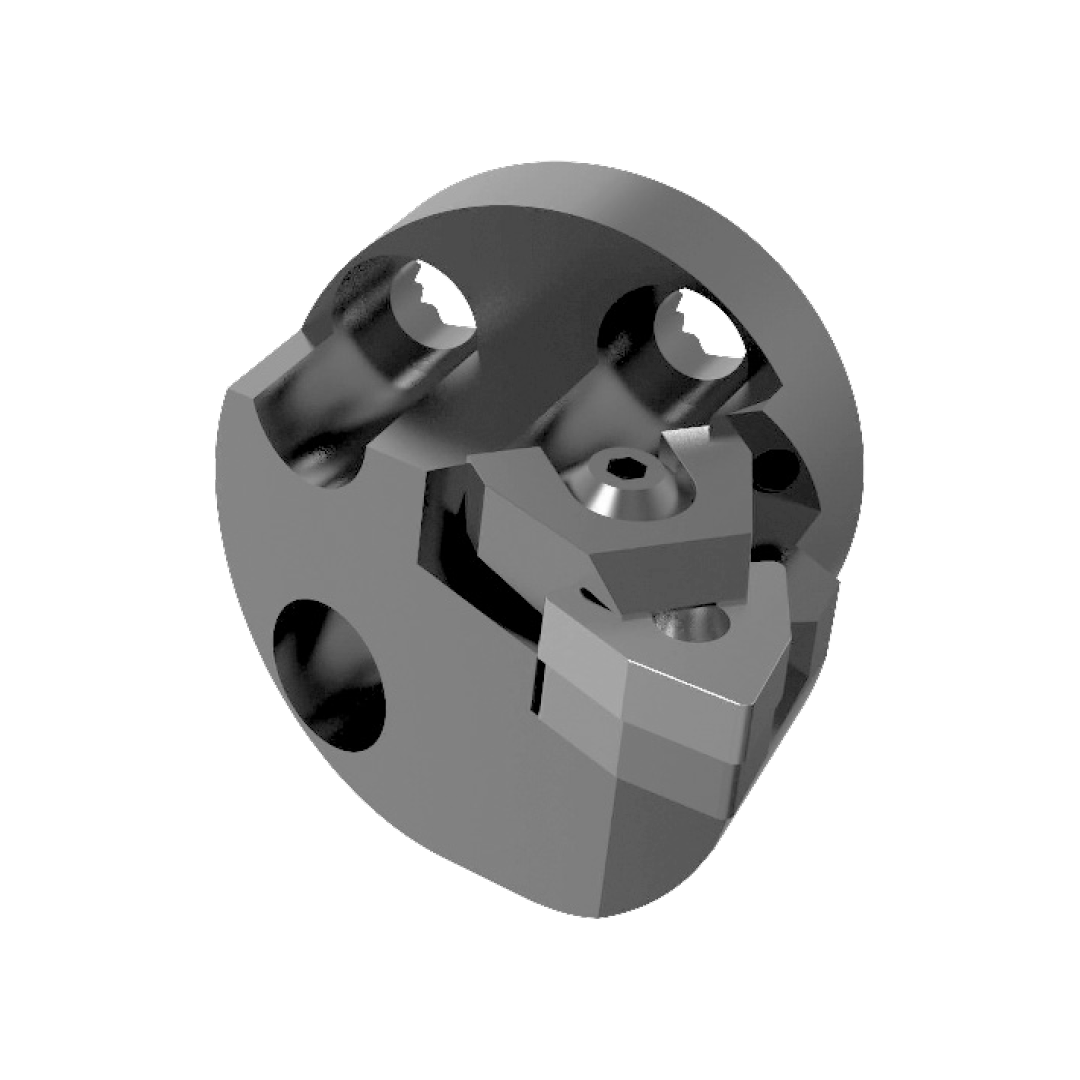

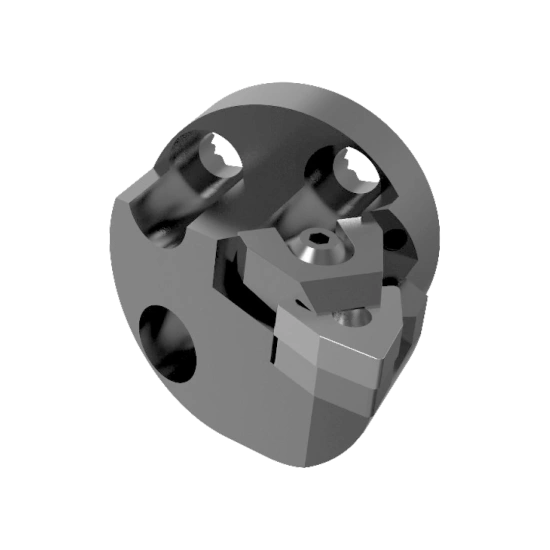

TOOLHOLDER AVH40 MWLN R-08
212506000 | SUPORTE AVH40 MWLN R-08
Product data
Hand (HAND)
R
Functional length (LF)
40 mm
Functional Width (WF)
27 mm
Connection Diameter Workpiece side (DCONWS)
40 mm
Minimum Bore Diameter (DMIN)
50 mm
* cutting tool parameters according to ISO 13399. Read more here
Related products
Spare parts
ALLEN KEY SS25
Article code
290019800
Reference
SS25
CLAMP GA07002
Article code
290082100
Reference
GA07002
LOCK PIN BC06000
Article code
290053500
Reference
BC06000
SHIM CW080500
Article code
290053400
Reference
CW080500
