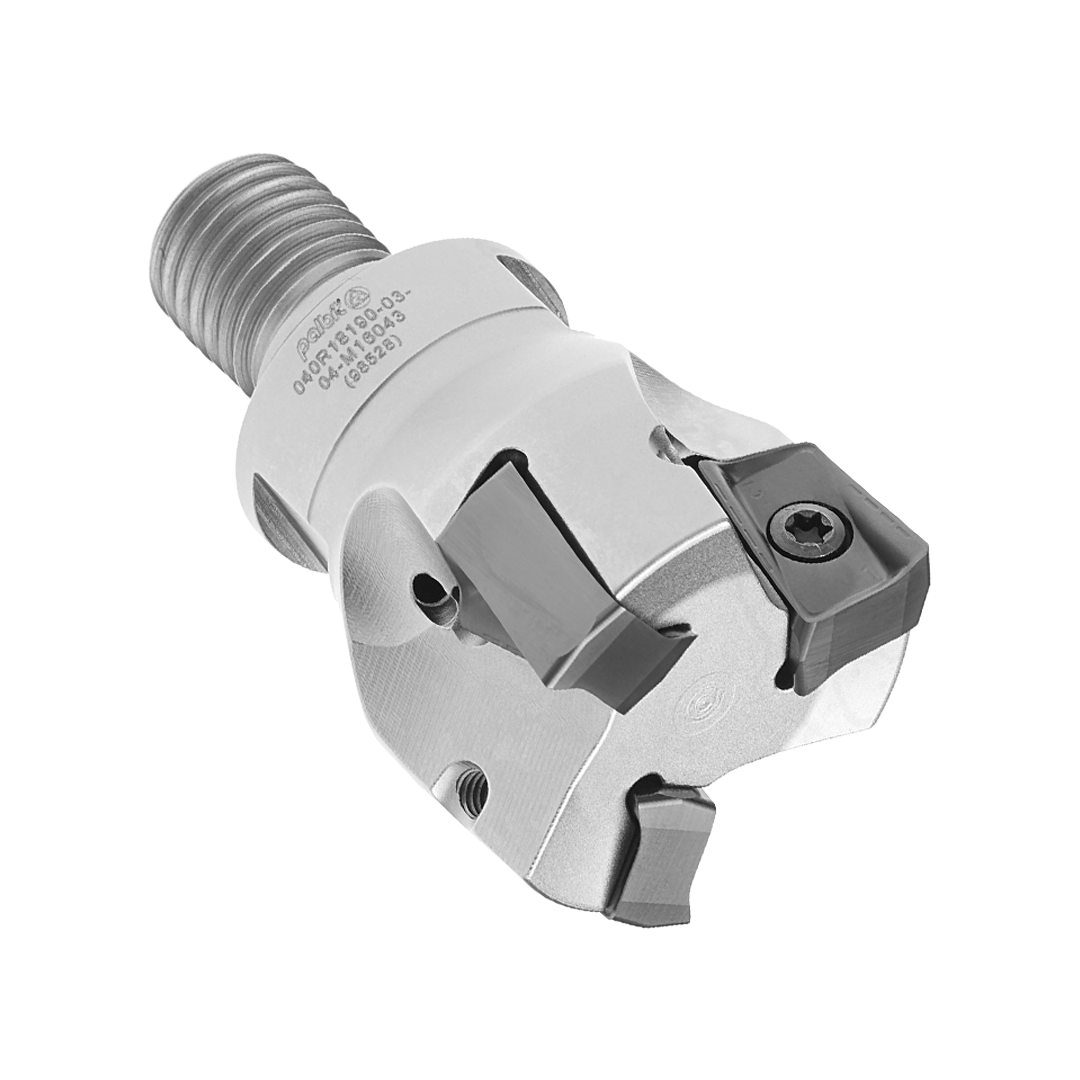

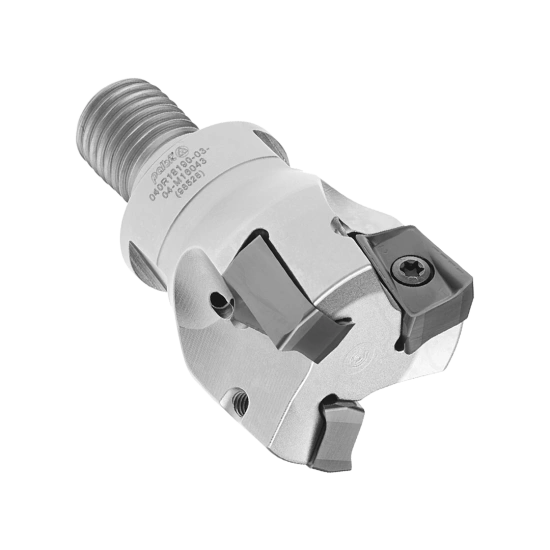

MILLING TOOL 040R18190-03-04-M16043
181082900 | FRESA 040R18190-03-04-M16043
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
15 mm
Axial rake angle (GAMP)
-4
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
40 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
43 mm
Radial rake angle (GAMF)
-23
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
29 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
3
Connection Thread Nominal Size Machine Side (THSZMS)
M16
Related products
Spare parts
SCREW P0401200
Article code
290047500
Reference
P0401200
Overall length (OAL)
11 mm
Thread pitch(TP)
0.7
Head Diameter (HDD)
5.5 mm
Thread Diameter Size (TDZ)
M4
Length1 (L1)
6.2
Torx
15
TORX KEY DT1530
Article code
290047800
Reference
DT1530
TORX KEY XT15-S35
Article code
290012400
Reference
XT15-S35
