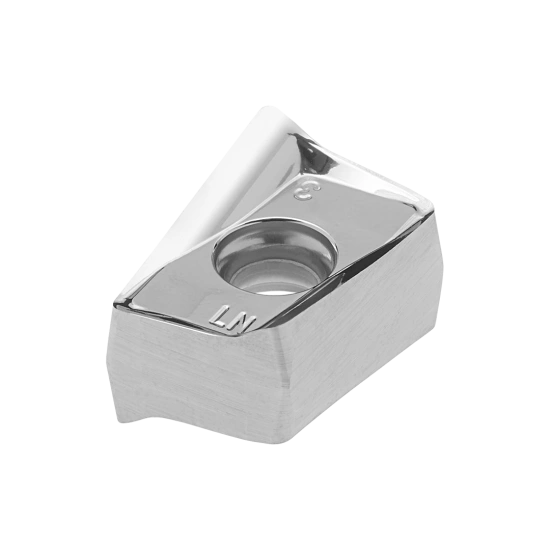

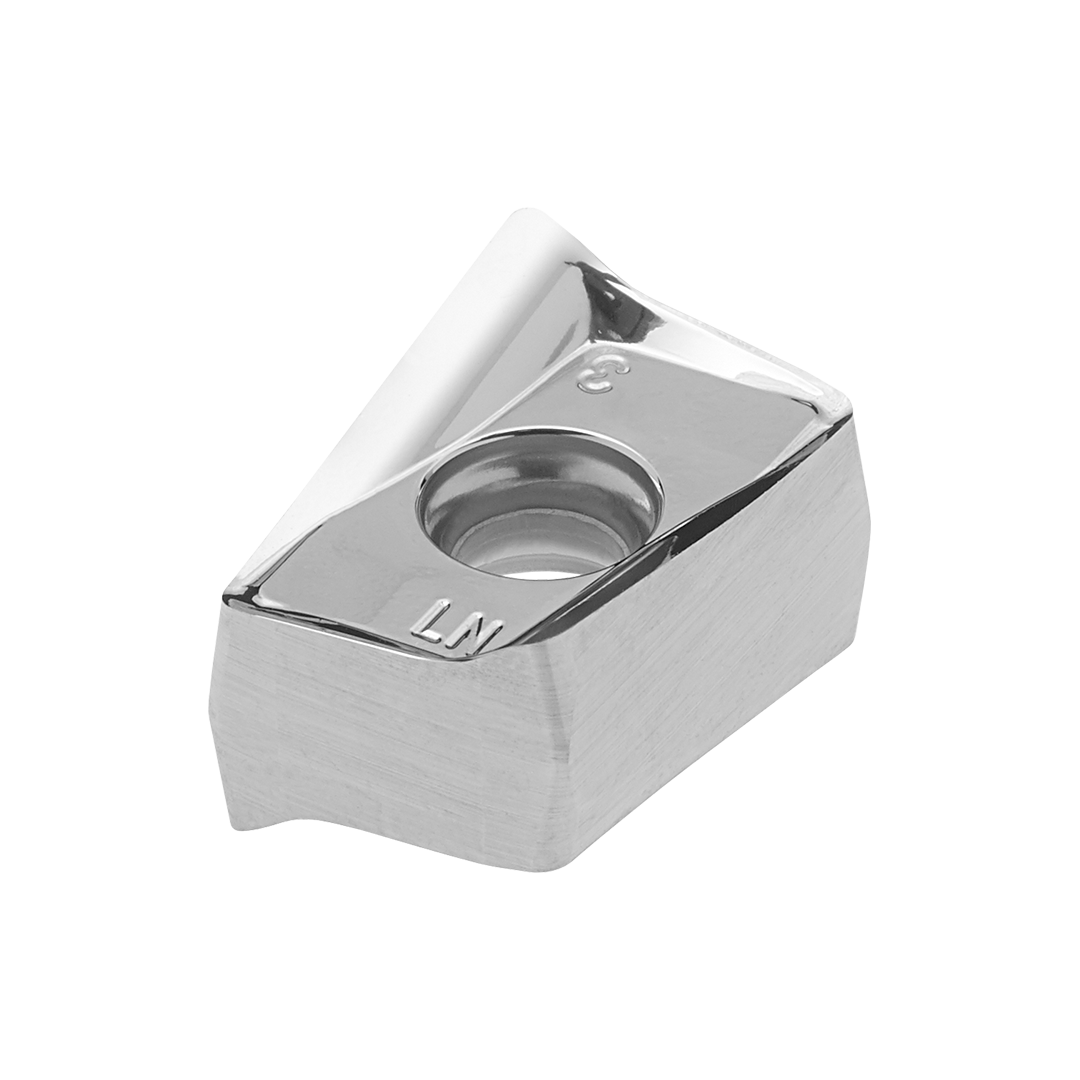

INSERT ANHX 160712 PNFR-LN PH0910
111159710 | PAST. ANHX 160712 PNFR-LN PH0910

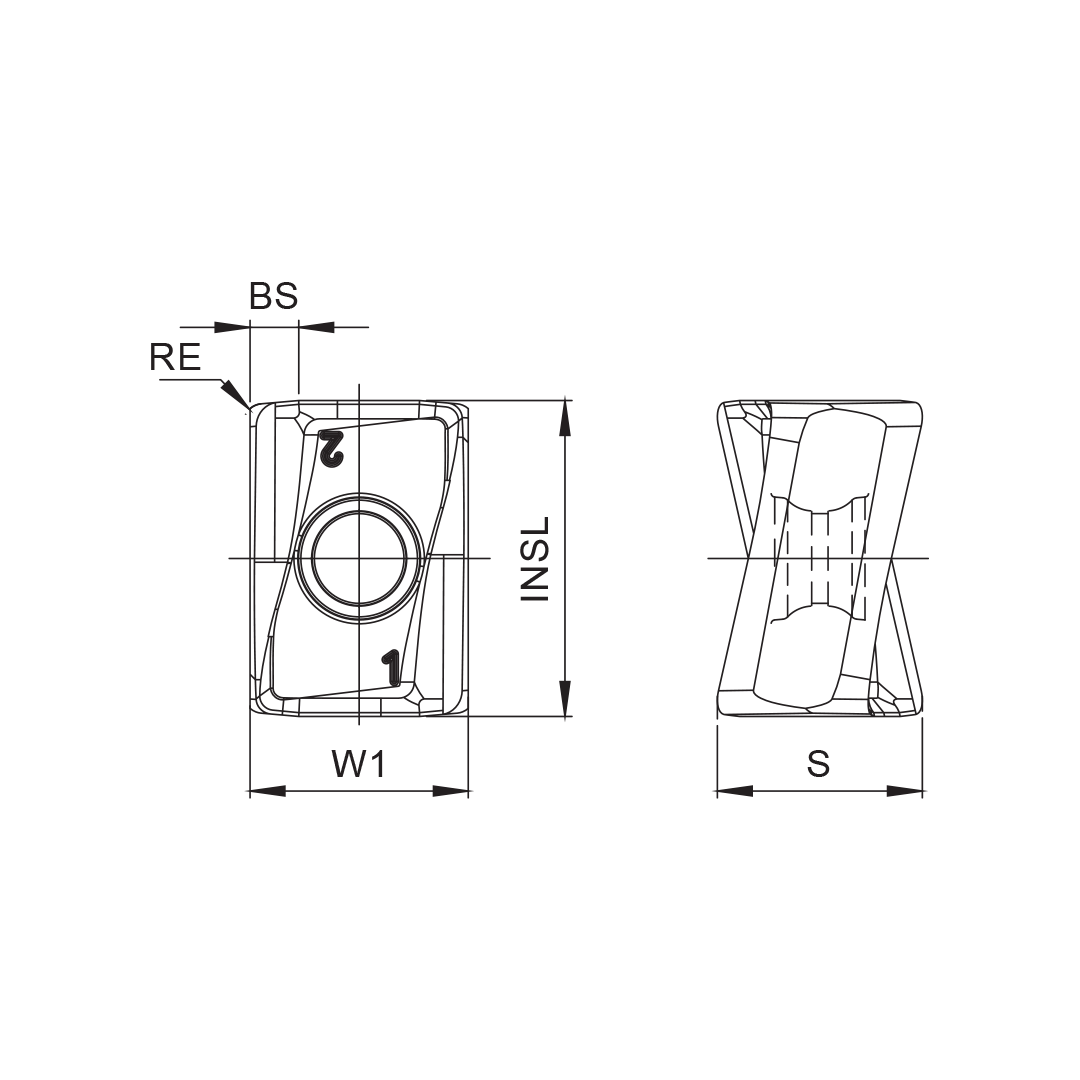

Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
A
Corner radius (RE)
1.2 mm
Hand (HAND)
R
Grade (GRADE)
PH0910
Insert thickness (S)
10.5 mm
Wiper edge length (BS)
1.2 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.1811 mm
Insert length (INSL)
16 mm
Tolerance class insert (TCINS)
H
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (1.2 - 15)
FZ (mm/t) (0.1 - 0.4)
AP (mm) (1.2 - 15)
