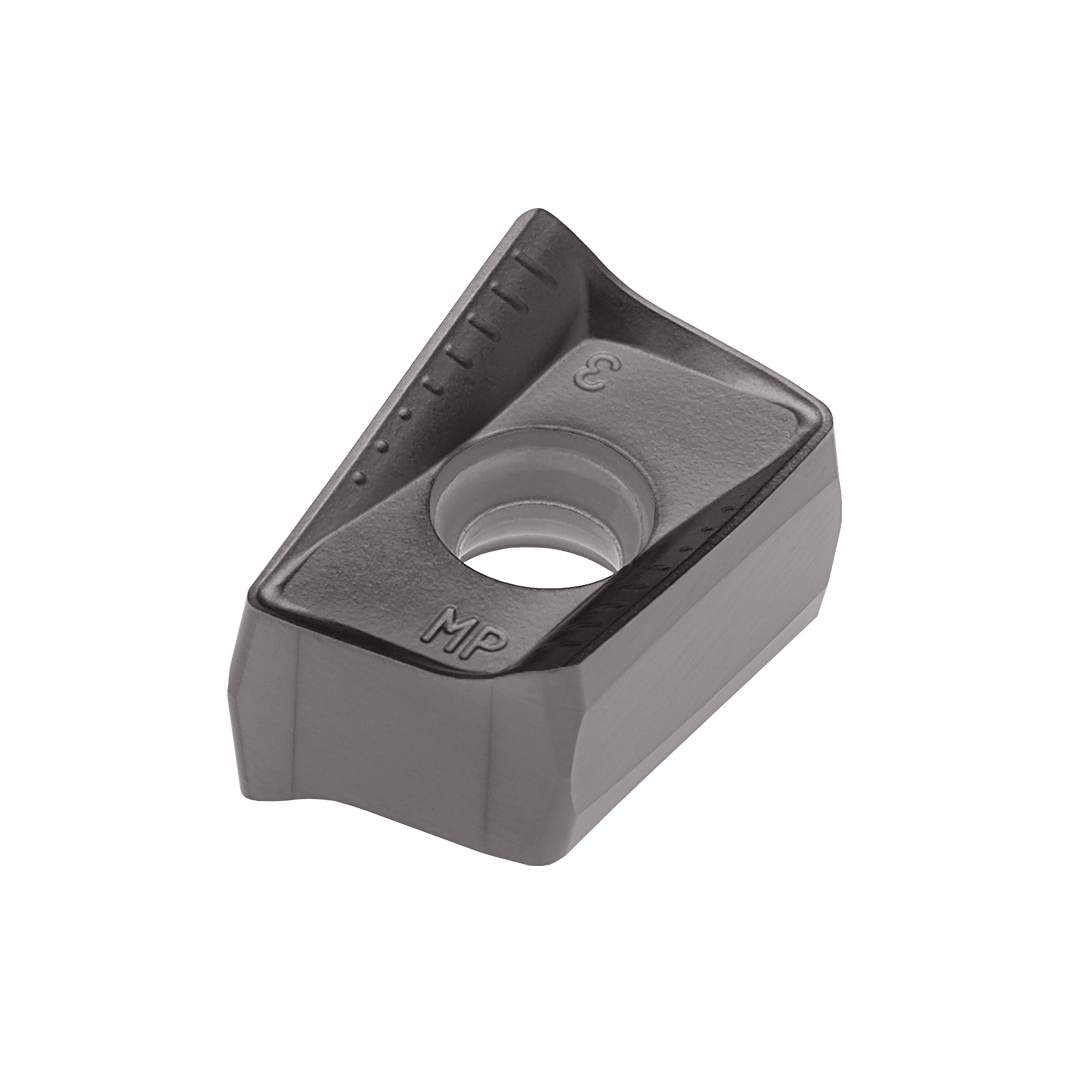

INSERT ANHX 160712 PNER-MP PHP920
1111598T1 | PAST. ANHX 160712 PNER-MP PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
A

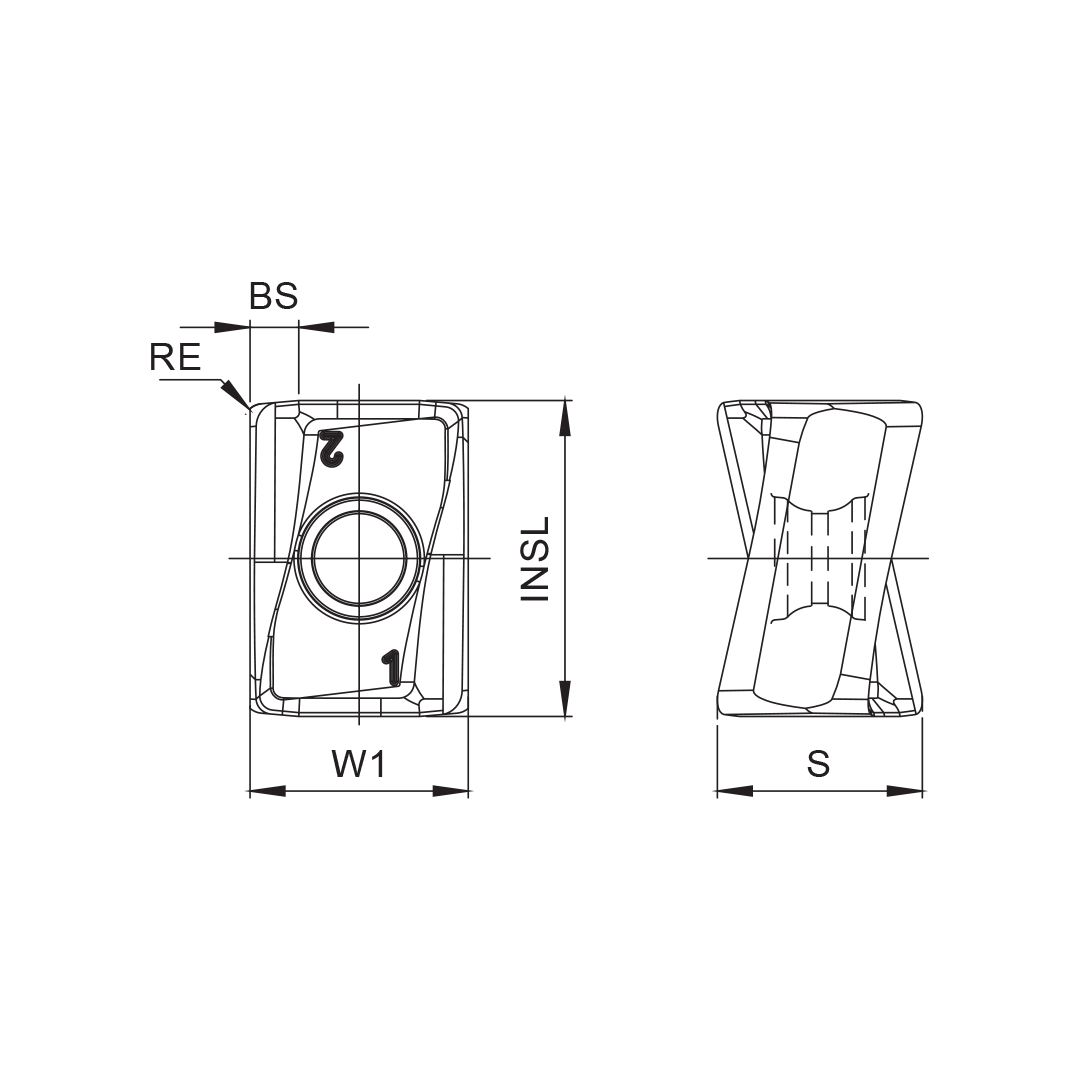

Corner radius (RE)
1.2 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Insert thickness (S)
10.5 mm
Wiper edge length (BS)
1.2 mm
Chip breaker manufacturer's designation (CBMD)
MP
Fixing hole diameter (D1)
0.1811 mm
Insert length (INSL)
16 mm
Tolerance class insert (TCINS)
H
Start values
- K
VC (m/min) (120 - 270)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (1.2 - 15)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (1.2 - 15)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (1.2 - 15)
FZ (mm/t) (0.08 - 0.25)
AP (mm) (1.2 - 15)
