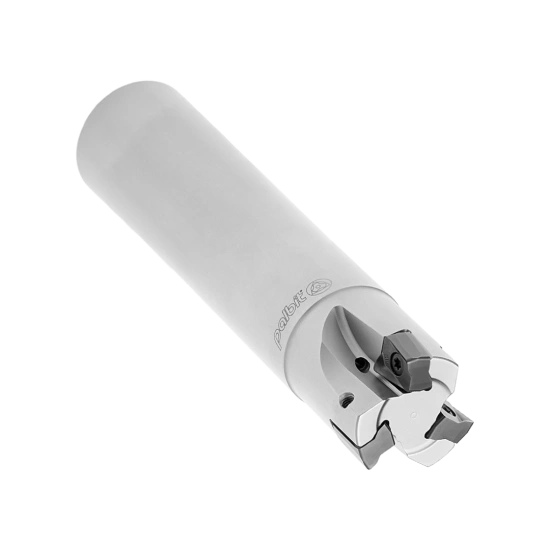

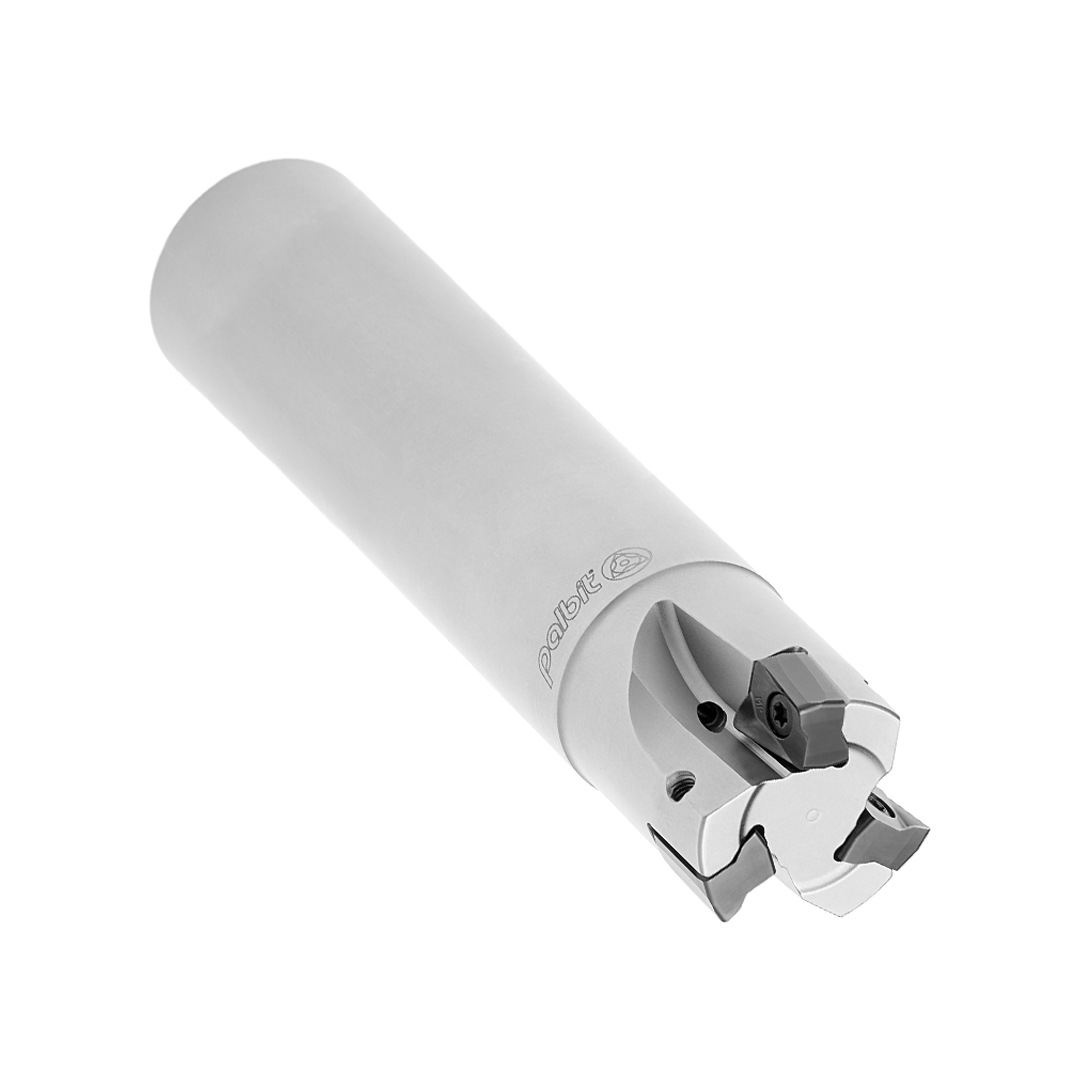

MILLING TOOL 026E17590-02-06-025200

181116300 | FRESA 026E17590-02-06-025200

MILLING TOOL 026E17590-02-06-025200 - DRW

Product data

Hand (HAND)

Depth of cut maximum (APMX)

11 mm

Axial rake angle (GAMP)

-6

Connection diameter (DCONMS)

25 mm

Adaptive interface machine direction (ADINTMS)

Cylindrical Shank

Cutting diameter (DC)

26 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

200 mm

Radial rake angle (GAMF)

-21

Cutting item count (CICT)

Cutting pitch differential (CPDF)

Torque (TQ)

Spare parts

Article code

290075200

Reference

P0350904

Article code

290060000

Reference

DT1020

Article code

290013100

Reference

XT10

MILLING TOOL 026E17590-02-06-025200

Product data

Related products

INSERT ANHX 120604 PNSR-MP PH5320

INSERT ANHX 120604 PNER-LS PHP930

INSERT ANHX 120604 PNER-LS PH7930

INSERT ANHX 120608 PNER-LS PH7930

INSERT ANHX 120616 PNER-LS PH7920

INSERT ANHX 120616 PNER-LS PHH930

INSERT ANHX 120616 PNER-LS PH7740

INSERT ANHX 120616 PNER-LS PH7930

INSERT ANHX 120604 PNER-LS PH7920

INSERT ANHX 120608 PNSR-MP PH7740

INSERT ANHX 120608 PNSR-MP PH7930

INSERT ANHX 120616 PNSR-MP PH7740

INSERT ANHX 120608 PNSR-MP PH5320

INSERT ANHX 120616 PNSR-MP PH7930

INSERT ANHX 120616 PNSR-MP PH5320

INSERT ANHX 120608 PNSR-MP PHP920

INSERT ANHX 120604 PNSR-MP PH7740

INSERT ANHX 120604 PNER-LS PH7740

INSERT ANHX 120616 PNER-LS PHP930

INSERT ANHX 120604 PNSR-MP PHP920

INSERT ANHX 120608 PNER-LS PHP920

INSERT ANHX 120604 PNER-LS PHH930

INSERT ANHX 120620 PNSR-MP PHP920

INSERT ANHX 120608 PNSR-MP PHS740

INSERT ANHX 120608 PNER-LS PHH930

INSERT ANHX 120608 PNER-LS PH7920

INSERT ANHX 120616 PNSR-MP PHP920

INSERT ANHX 120608 PNER-LS PH7740

INSERT ANHX 120608 PNER-LS PHP930

Spare parts

SCREW P0350904

TORX KEY DT1020

TORX KEY XT10
