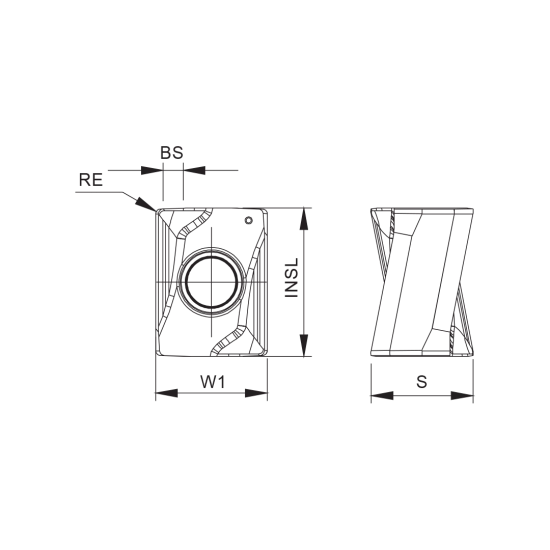

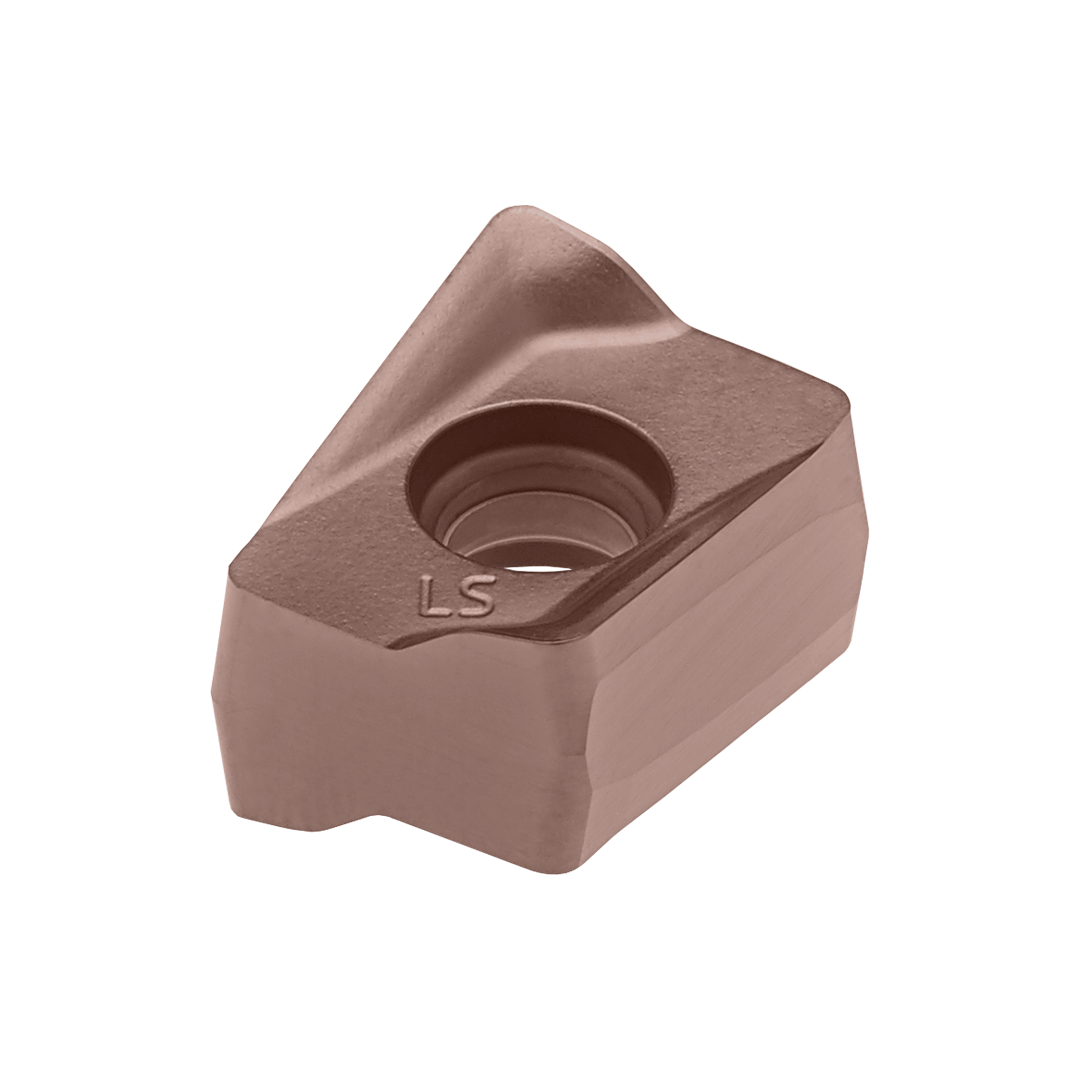

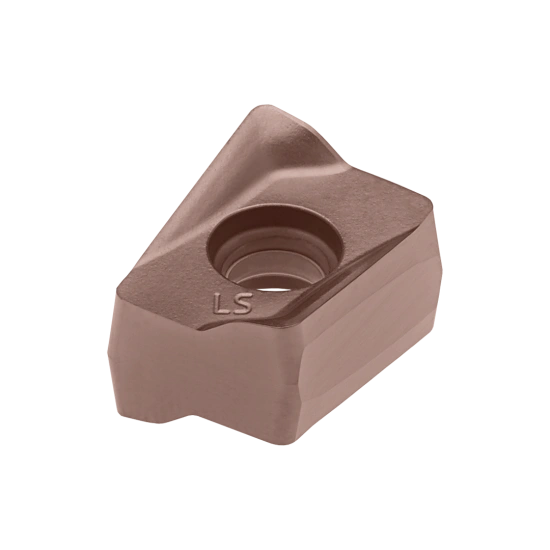

INSERT ANHX 120608 PNER-LS PHH930
1112237X9 | PAST. ANHX 120608 PNER-LS PHH930
Product data
Material classification level 1 (TMC1ISO)
- M
- S
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
A

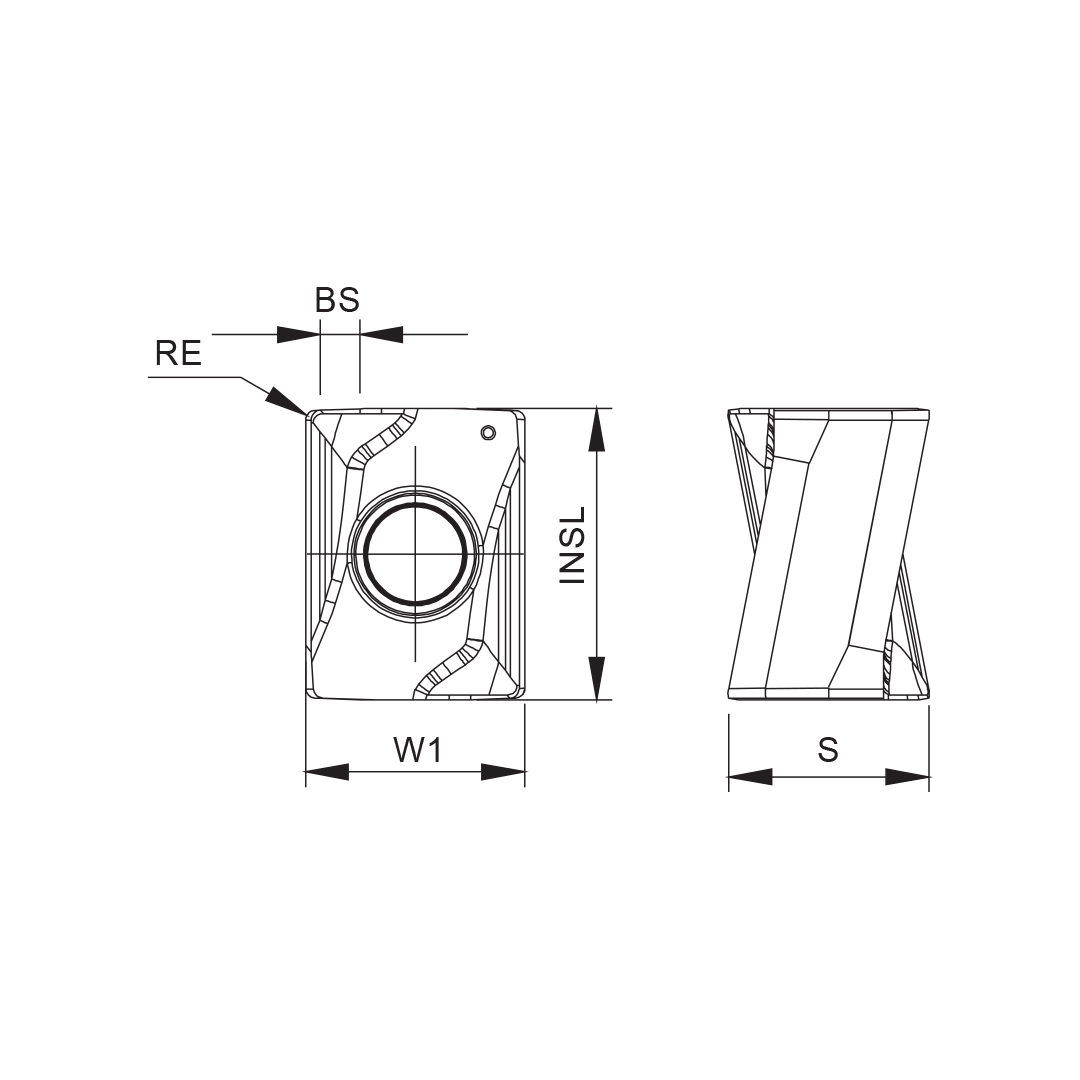

Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PHH930
Insert thickness (S)
8.3 mm
Wiper edge length (BS)
9 mm
Chip breaker manufacturer's designation (CBMD)
LS
Fixing hole diameter (D1)
0.1535 mm
Insert length (INSL)
12 mm
Tolerance class insert (TCINS)
H
Start values
- M
VC (m/min) (100 - 210)
FZ (mm/t) (0.07 - 0.3)
AP (mm) (0.8 - 11)
FZ (mm/t) (0.07 - 0.3)
AP (mm) (0.8 - 11)
- S
VC (m/min) (30 - 110)
FZ (mm/t) (0.07 - 0.3)
AP (mm) (0.8 - 11)
FZ (mm/t) (0.07 - 0.3)
AP (mm) (0.8 - 11)
