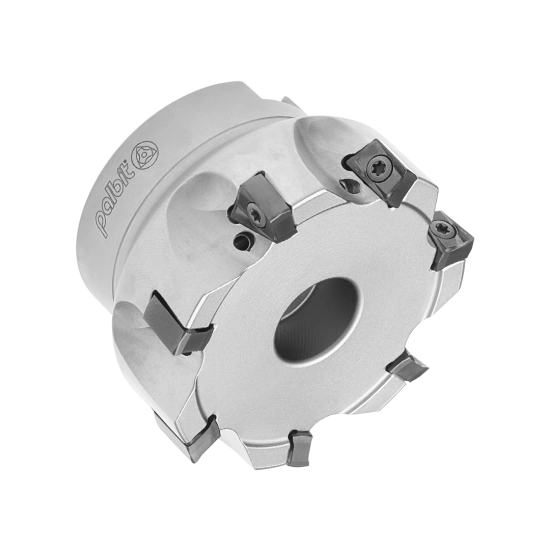

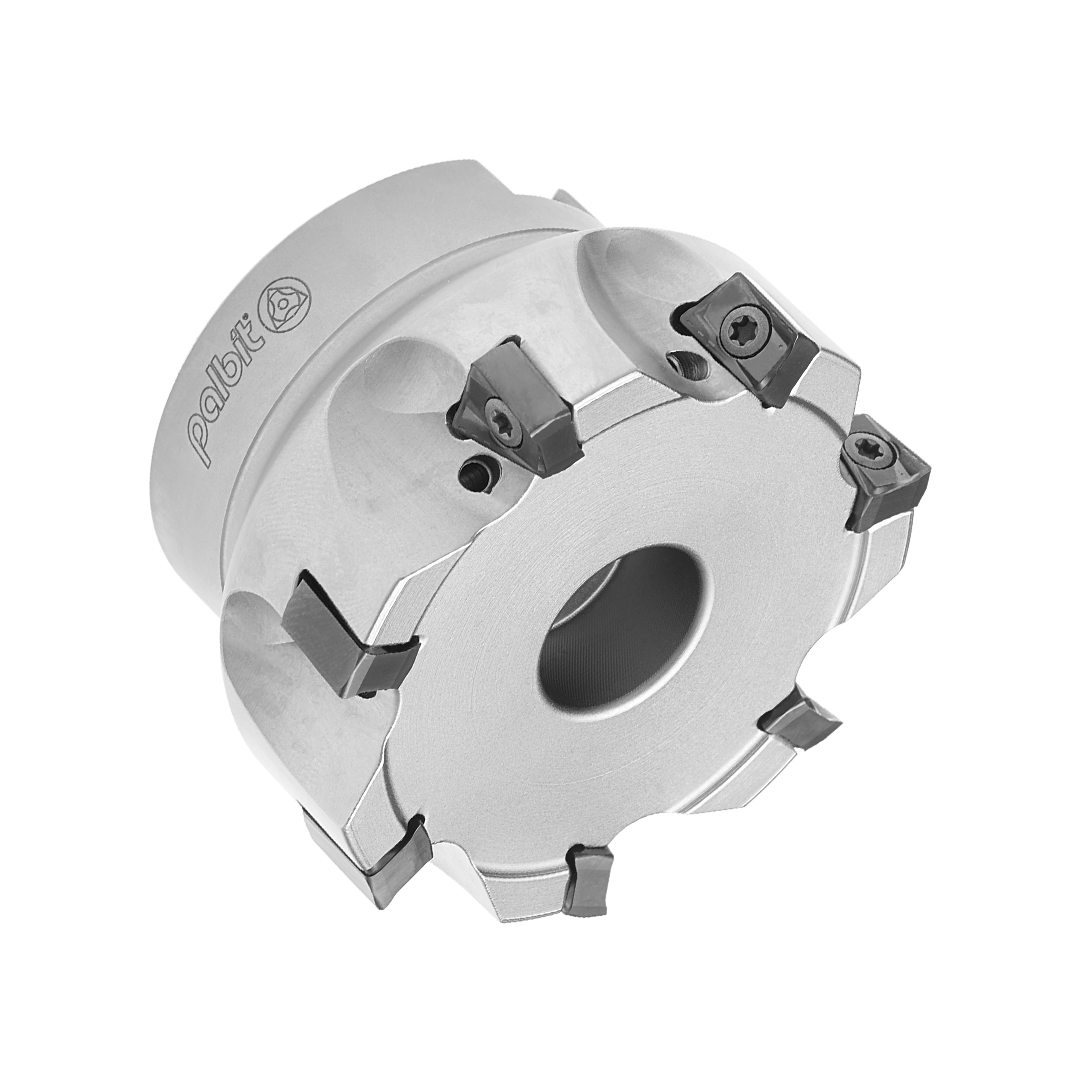

MILLING TOOL 080A17190-08-07-027050
181075900 | FRESA 080A17190-08-07-027050

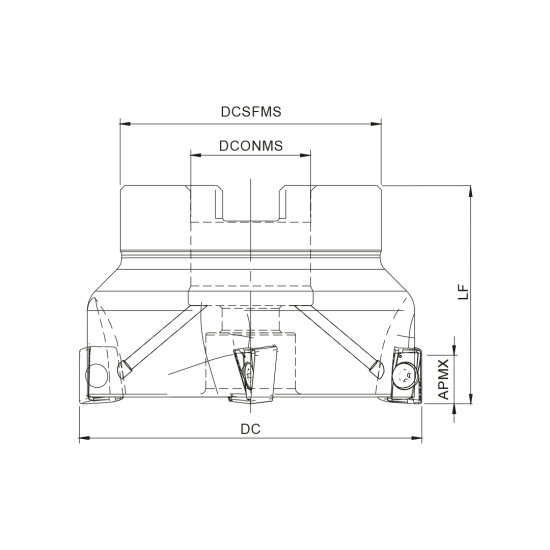

Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
9 mm
Axial rake angle (GAMP)
-7
Connection diameter (DCONMS)
27 mm
Adaptive interface machine direction (ADINTMS)
Arbor Mounting
Cutting diameter (DC)
80 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
50 mm
Radial rake angle (GAMF)
-21
Cutting item count (CICT)
8
Contact surface diameter machine side (DCSFMS)
60 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
1.4
Related products
Spare parts
KEY SD6368-12
Article code
290058000
Reference
SD6368-12
SCREW J0123510
Article code
119163000
Reference
J0123510
SCREW P0300800
Article code
290009100
Reference
P0300800
TORX KEY DT0914
Article code
290059900
Reference
DT0914
