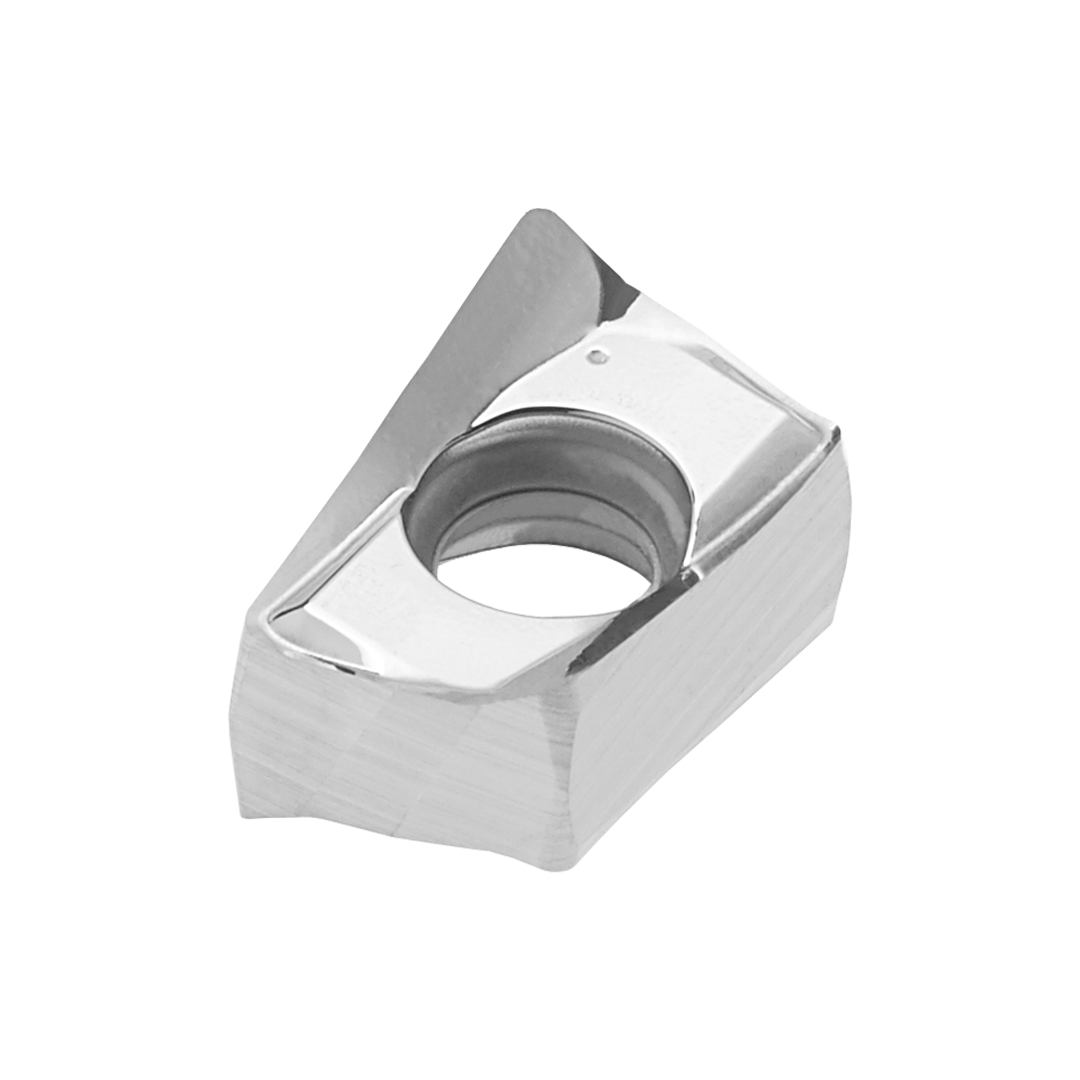

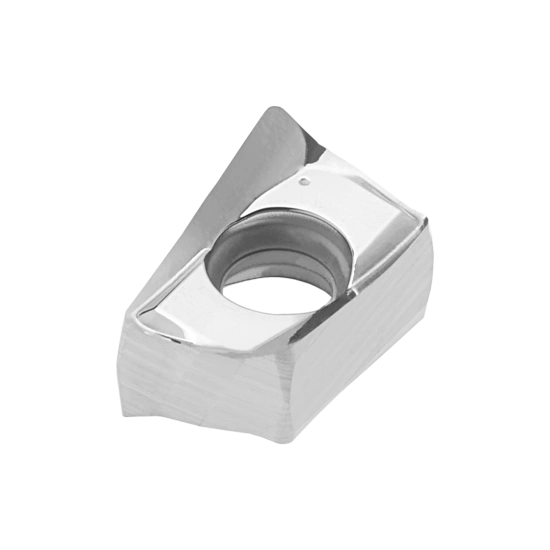

INSERT ANHX 100412 PNR-LN PH0910
111210210 | PAST. ANHX 100412 PNR-LN PH0910
Product data
Material classification level 1 (TMC1ISO)
- N
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
4
Insert shape code (SC)
A

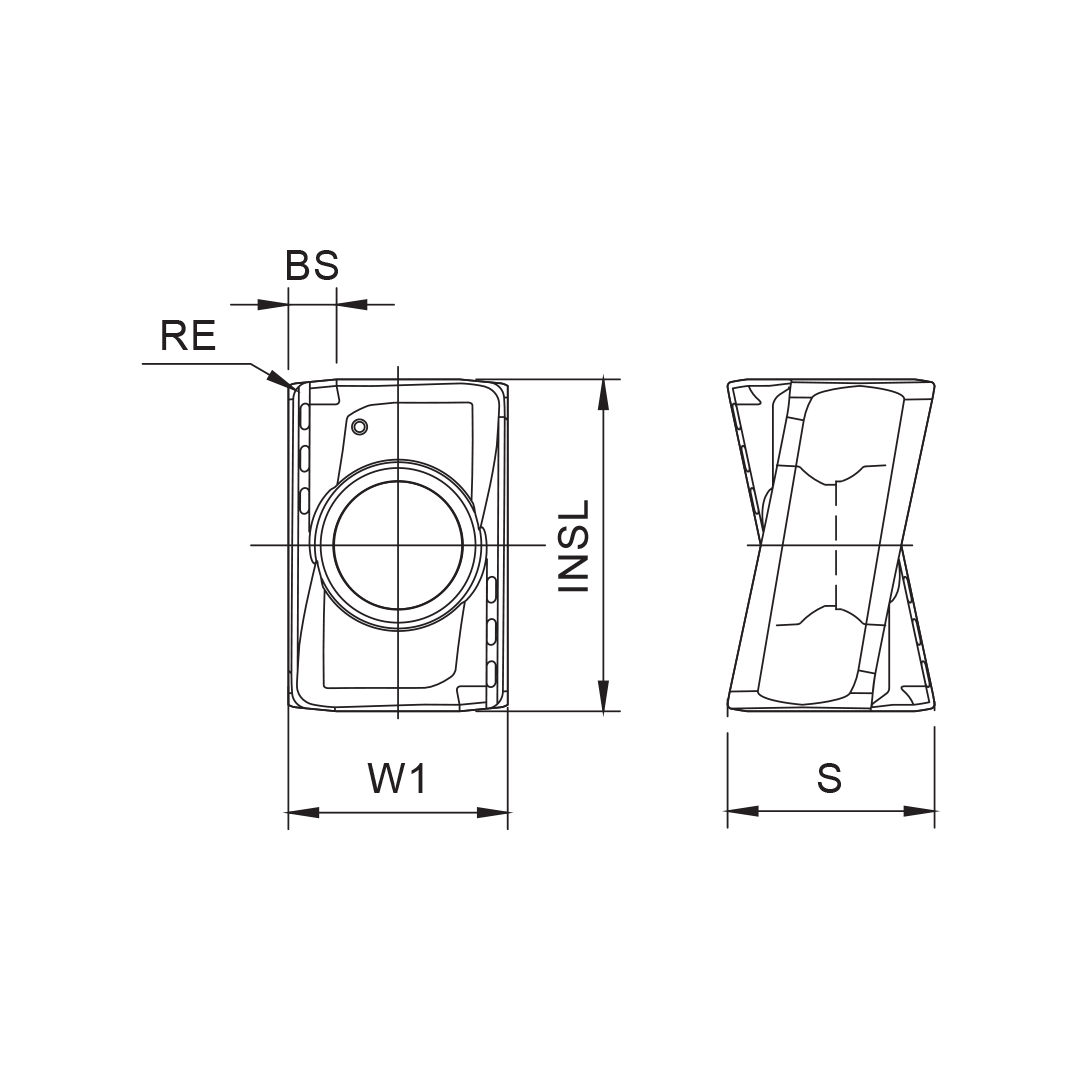

Corner radius (RE)
1.2 mm
Hand (HAND)
R
Grade (GRADE)
PH0910
Insert thickness (S)
6.2 mm
Wiper edge length (BS)
0.3 mm
Chip breaker manufacturer's designation (CBMD)
LN
Fixing hole diameter (D1)
0.1437 mm
Insert length (INSL)
10 mm
Tolerance class insert (TCINS)
H
Start values
- N
VC (m/min) (100 - 2000)
FZ (mm/t) (0.08 - 0.2)
AP (mm) (1.2 - 9)
FZ (mm/t) (0.08 - 0.2)
AP (mm) (1.2 - 9)
