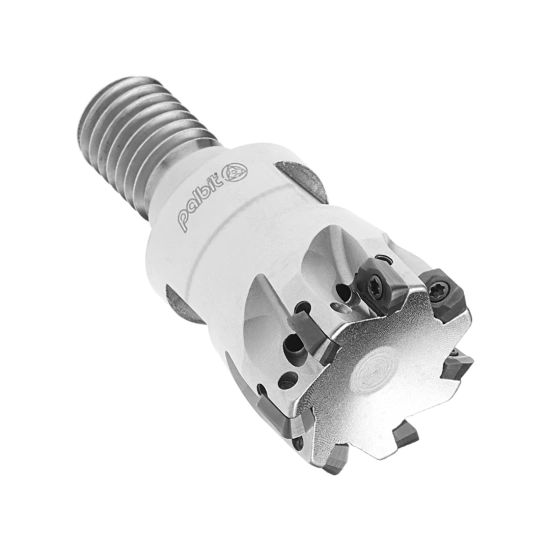

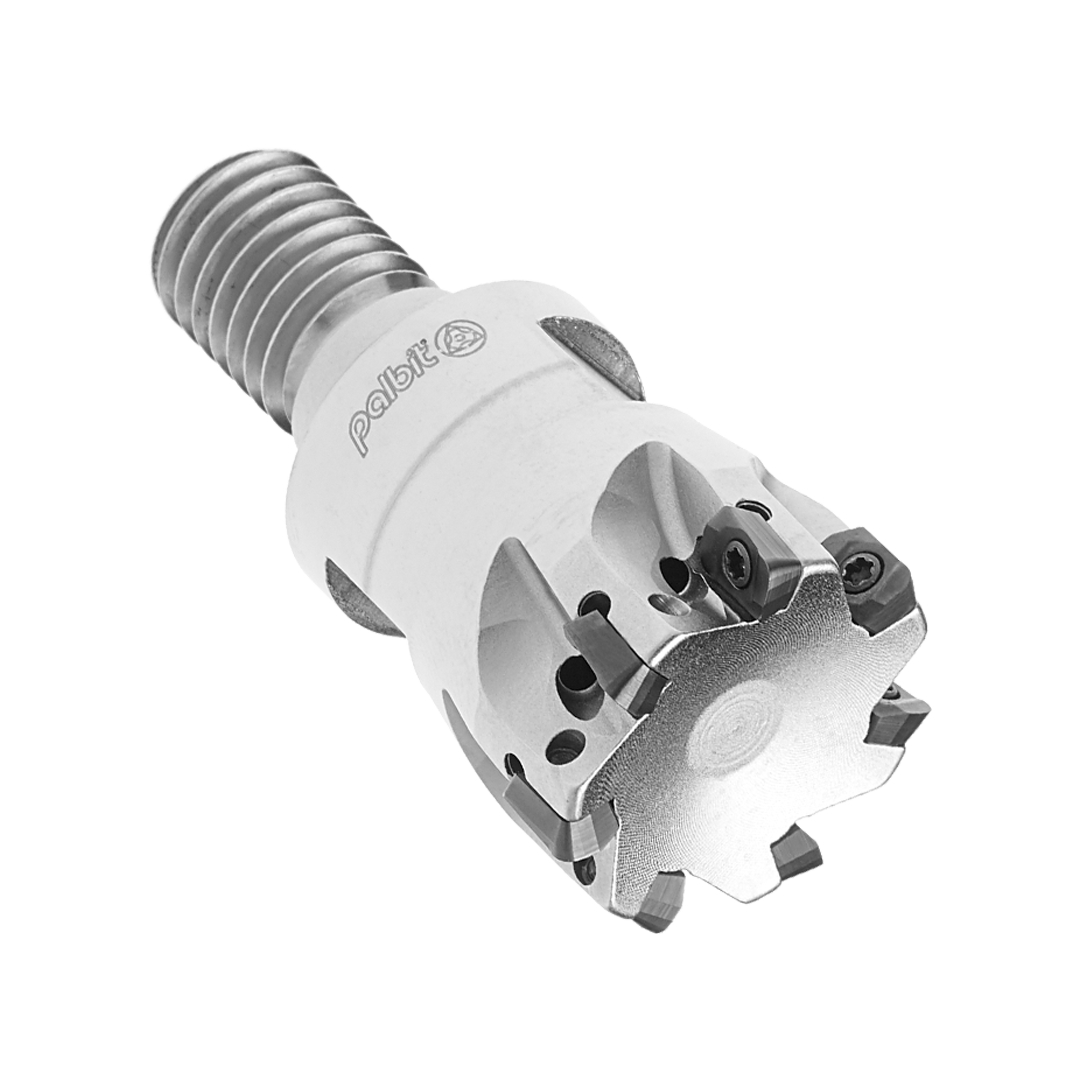

MILLING TOOL 013R20090-03-04-M06020
181112900 | FRESA 013R20090-03-04-M06020
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
4 mm
Axial rake angle (GAMP)
4
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
13 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
20 mm
Radial rake angle (GAMF)
-12
Cutting item count (CICT)
3
Contact surface diameter machine side (DCSFMS)
0 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
0.6
Connection Thread Nominal Size Machine Side (THSZMS)
M06
Related products
Spare parts
SCREW P0180400
Article code
290058400
Reference
P0180400
TORX KEY DT0606IP
Article code
290078300
Reference
DT0606IP
TORX KEY XT06IP
Article code
290058600
Reference
XT06IP
