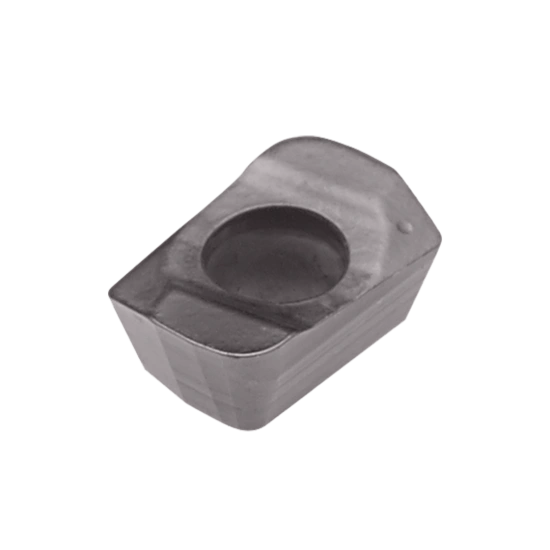

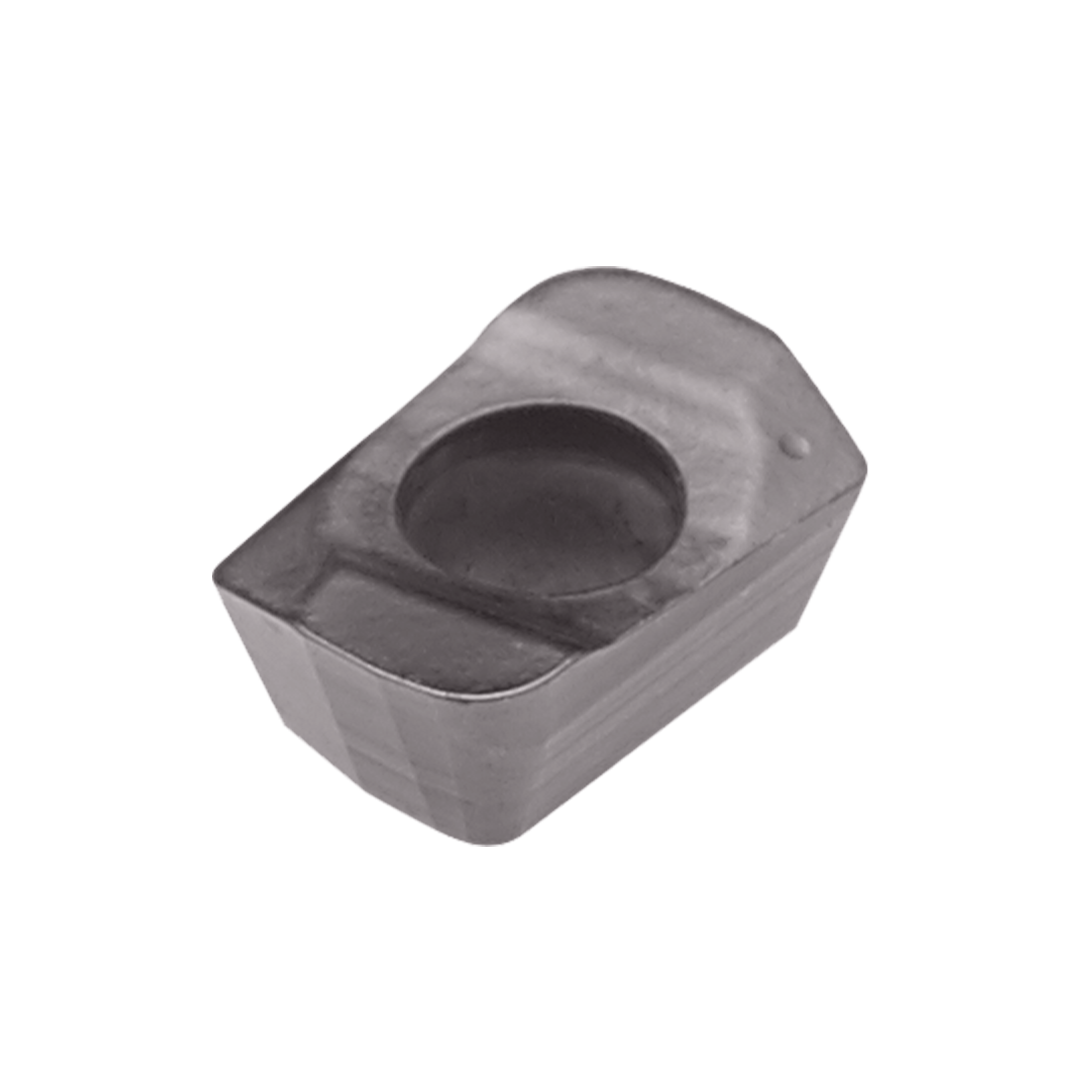

INSERT XPET 060210 ZER-HF PHP920
1112049T1 | PAST. XPET 060210 ZER-HF PHP920
Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
2
Insert shape code (SC)
X
Cutting edge effective length (LE)
0 mm
Corner radius (RE)
1 mm
Hand (HAND)
R
Grade (GRADE)
PHP920
Insert thickness (S)
2.4 mm
Wiper edge length (BS)
0.8 mm
Chip breaker manufacturer's designation (CBMD)
HF
Fixing hole diameter (D1)
0.0756 mm
Insert length (INSL)
0 mm
Tolerance class insert (TCINS)
E
Start values
- K
VC (m/min) (120 - 270)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
- M
VC (m/min) (120 - 220)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
- P
VC (m/min) (140 - 250)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
- S
VC (m/min) (30 - 110)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
FZ (mm/t) (0.4 - 0.8)
AP (mm) (0.1 - 0.3)
