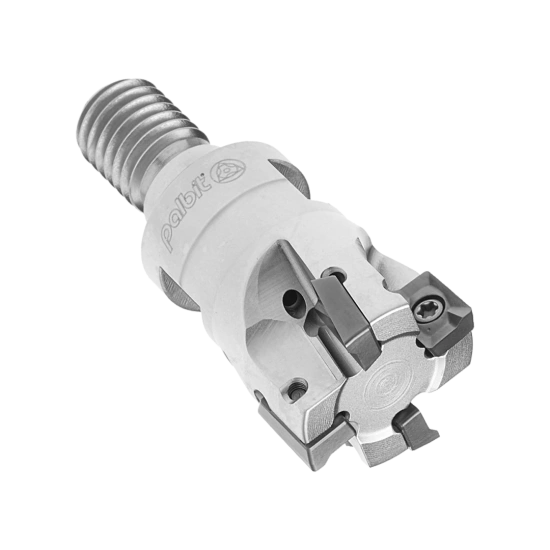

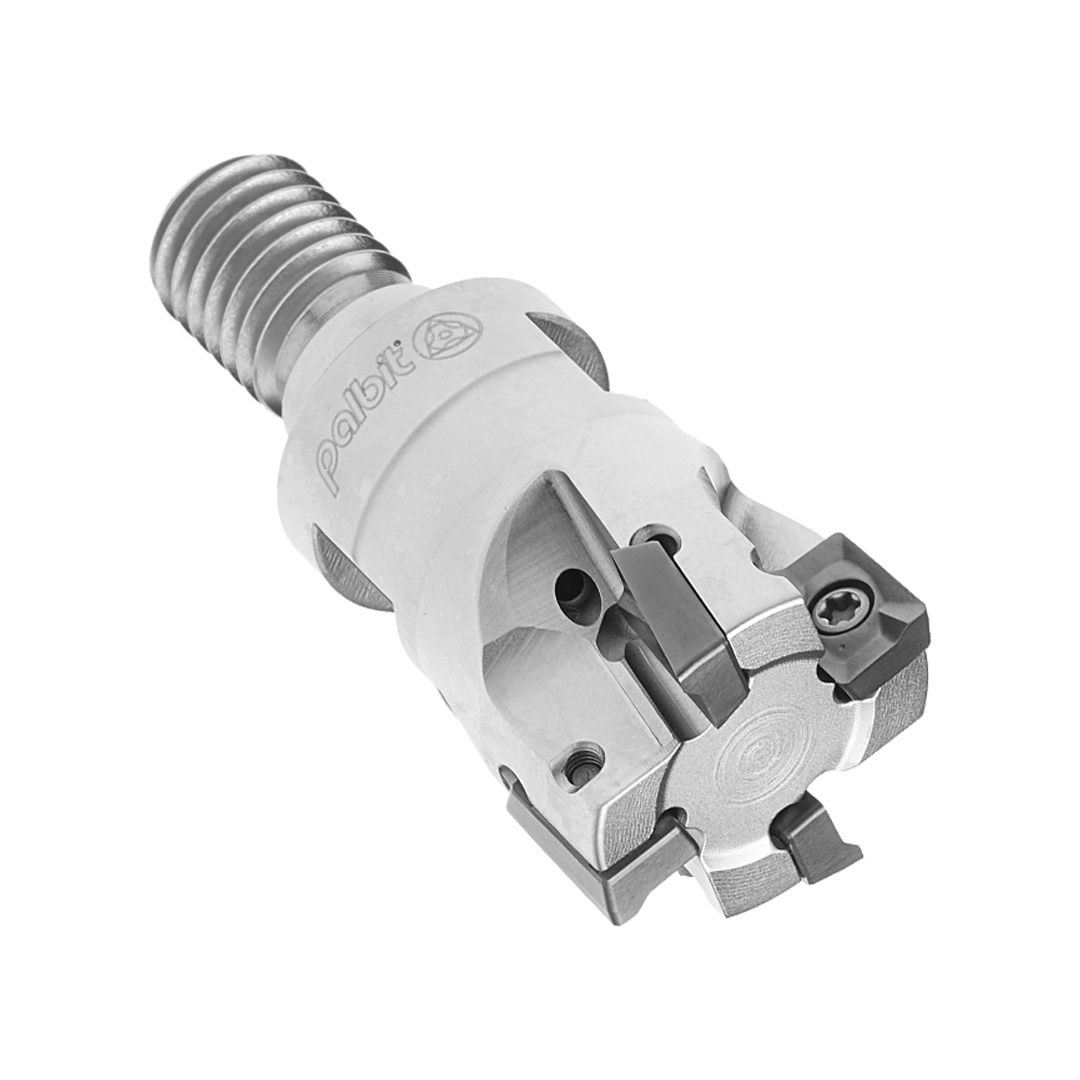

MILLING TOOL 025R17090-04-09-M12035
181015300 | FRESA 025R17090-04-09-M12035
Product data
Hand (HAND)
R
Depth of cut maximum (APMX)
9 mm
Axial rake angle (GAMP)
9
Adaptive interface machine direction (ADINTMS)
Threaded Coupling
Cutting diameter (DC)
25 mm
Tool cutting edge angle (KAPR)
90
Functional length (LF)
35 mm
Radial rake angle (GAMF)
-14
Cutting item count (CICT)
4
Contact surface diameter machine side (DCSFMS)
21 mm
Cutting pitch differential (CPDF)
NO
Torque (TQ)
1.2
Connection Thread Nominal Size Machine Side (THSZMS)
M12
Prog. Stocks
Yes
* cutting tool parameters according to ISO 13399. Read more here
Related products
Spare parts
SCREW P0250503
Article code
290033100
Reference
P0250503
TORX KEY XT08
Article code
290011700
Reference
XT08
