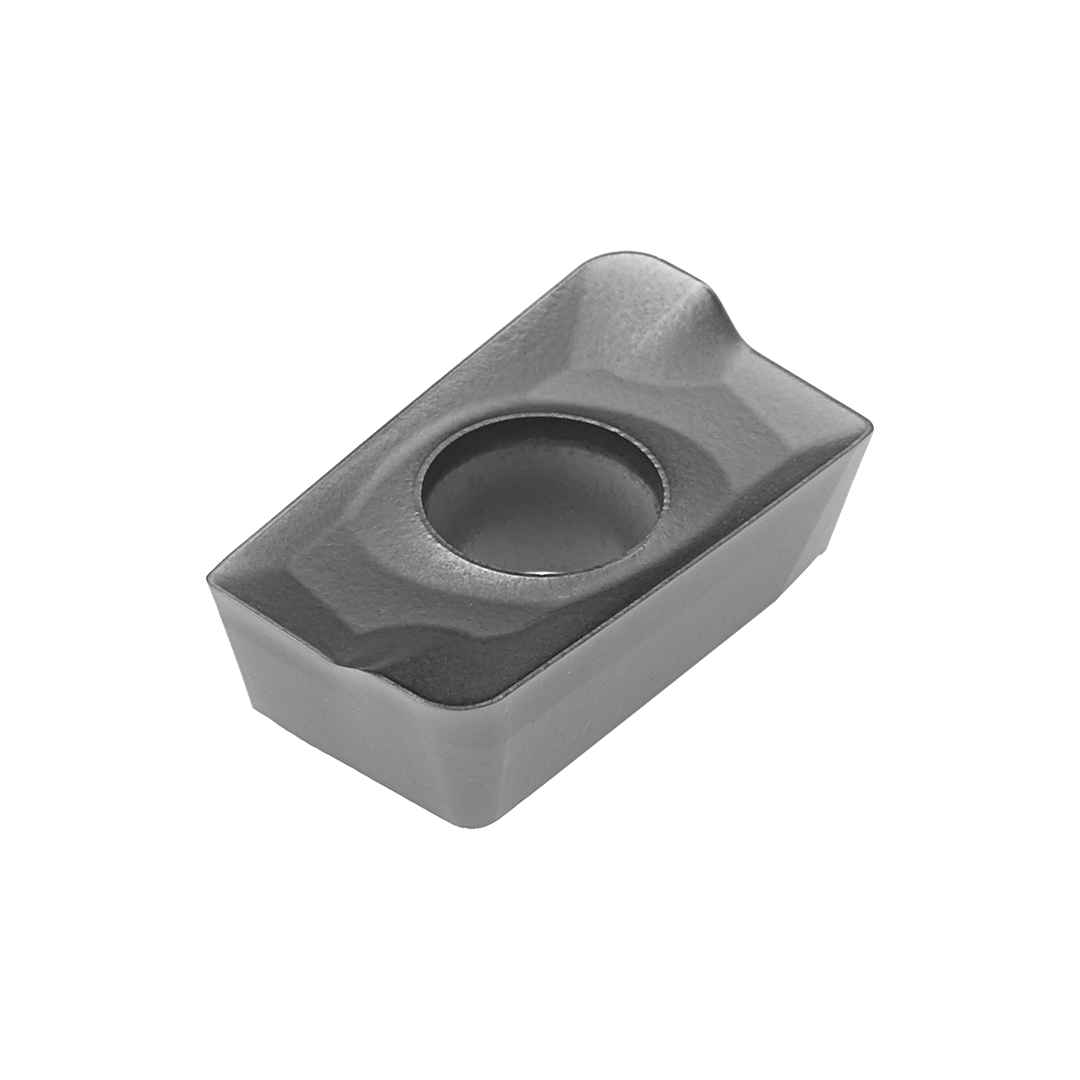

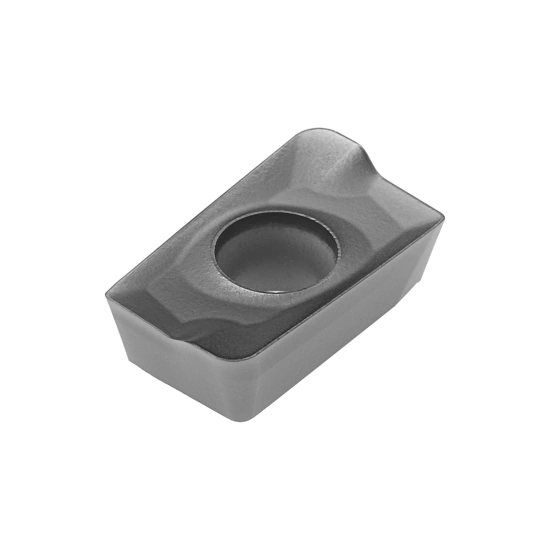

INSERT APKT 100308 PDER-X PH6920
111107168 | PAST. APKT 100308 PDER-X PH6920

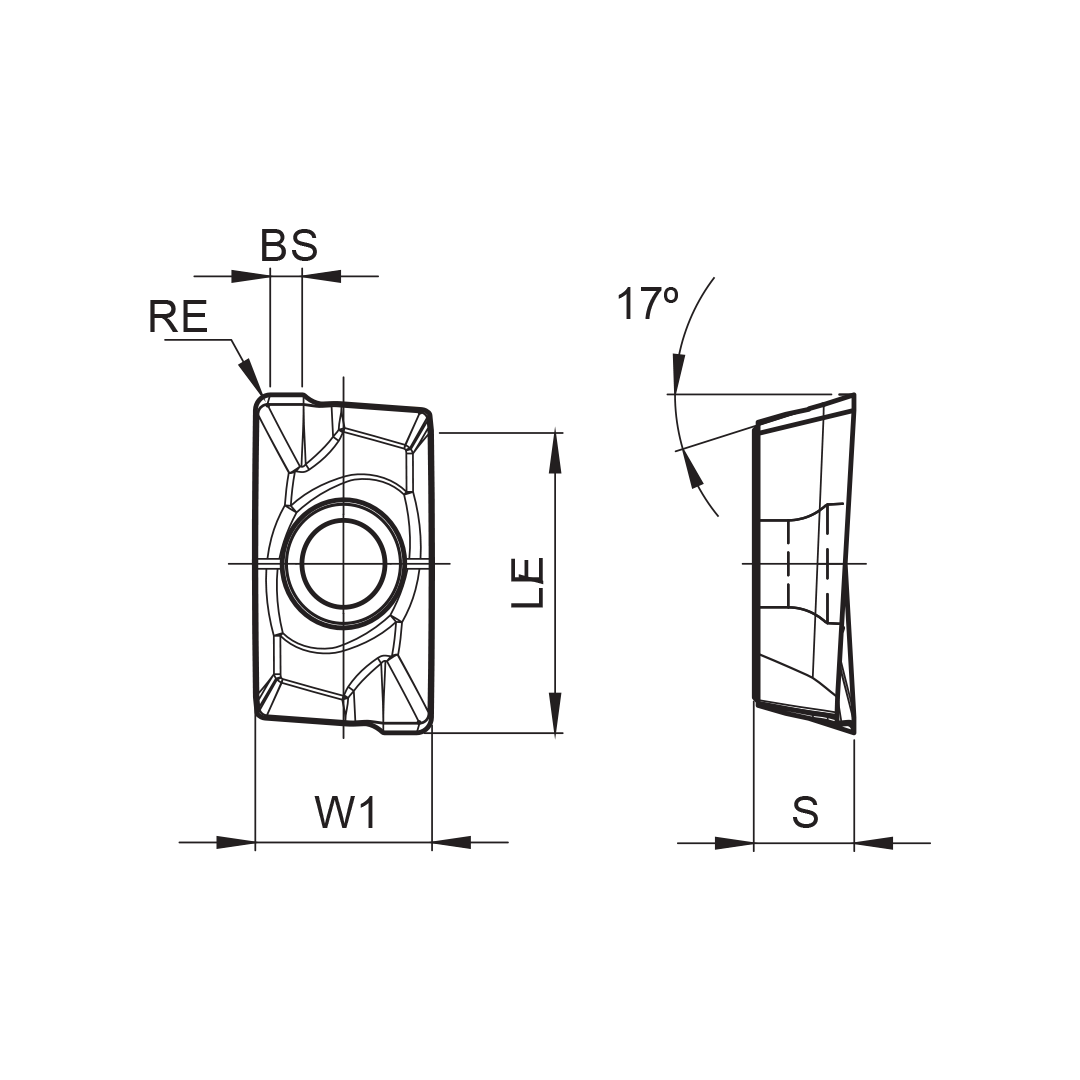

Product data
Material classification level 1 (TMC1ISO)
- P
- K
Operation type (CTPT)
Shoulder Milling
Cutting edge count (CEDC)
2
Insert shape code (SC)
A
Corner radius (RE)
0.8 mm
Hand (HAND)
R
Grade (GRADE)
PH6920
Insert thickness (S)
3.5 mm
Chip breaker manufacturer's designation (CBMD)
X
Fixing hole diameter (D1)
0.1102 mm
Tolerance class insert (TCINS)
K
Start values
- K
VC (m/min) (80 - 250)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
- M
VC (m/min) (100 - 190)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
- P
VC (m/min) (140 - 210)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
FZ (mm/t) (0.07 - 0.15)
AP (mm) (0.8 - 9)
