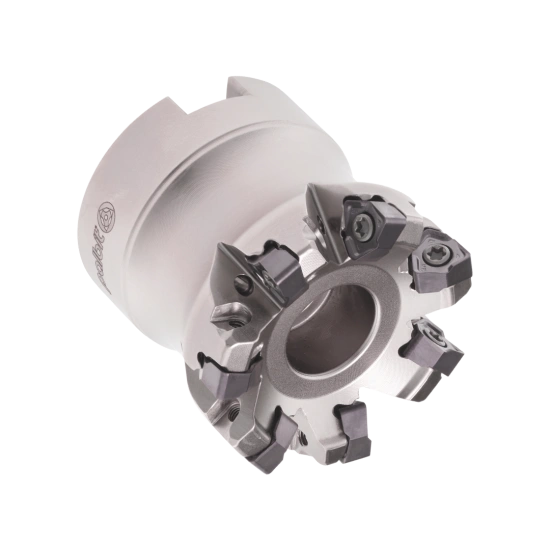

MILLING TOOL 050A49490-09-05-022040

181192500 | FRESA 050A49490-09-05-022040

Product data

Hand (HAND)

Depth of cut maximum (APMX)

3.5 mm

Axial rake angle (GAMP)

-5

Connection diameter (DCONMS)

22 mm

Adaptive interface machine direction (ADINTMS)

Arbor Mounting

Cutting diameter (DC)

50 mm

Tool cutting edge angle (KAPR)

Functional length (LF)

40 mm

Radial rake angle (GAMF)

-13

Cutting item count (CICT)

Contact surface diameter machine side (DCSFMS)

42 mm

Cutting pitch differential (CPDF)

Yes

Torque (TQ)

1.2

Article code

290033100

Reference

P0250503

Article code

290011700

Reference

XT08
