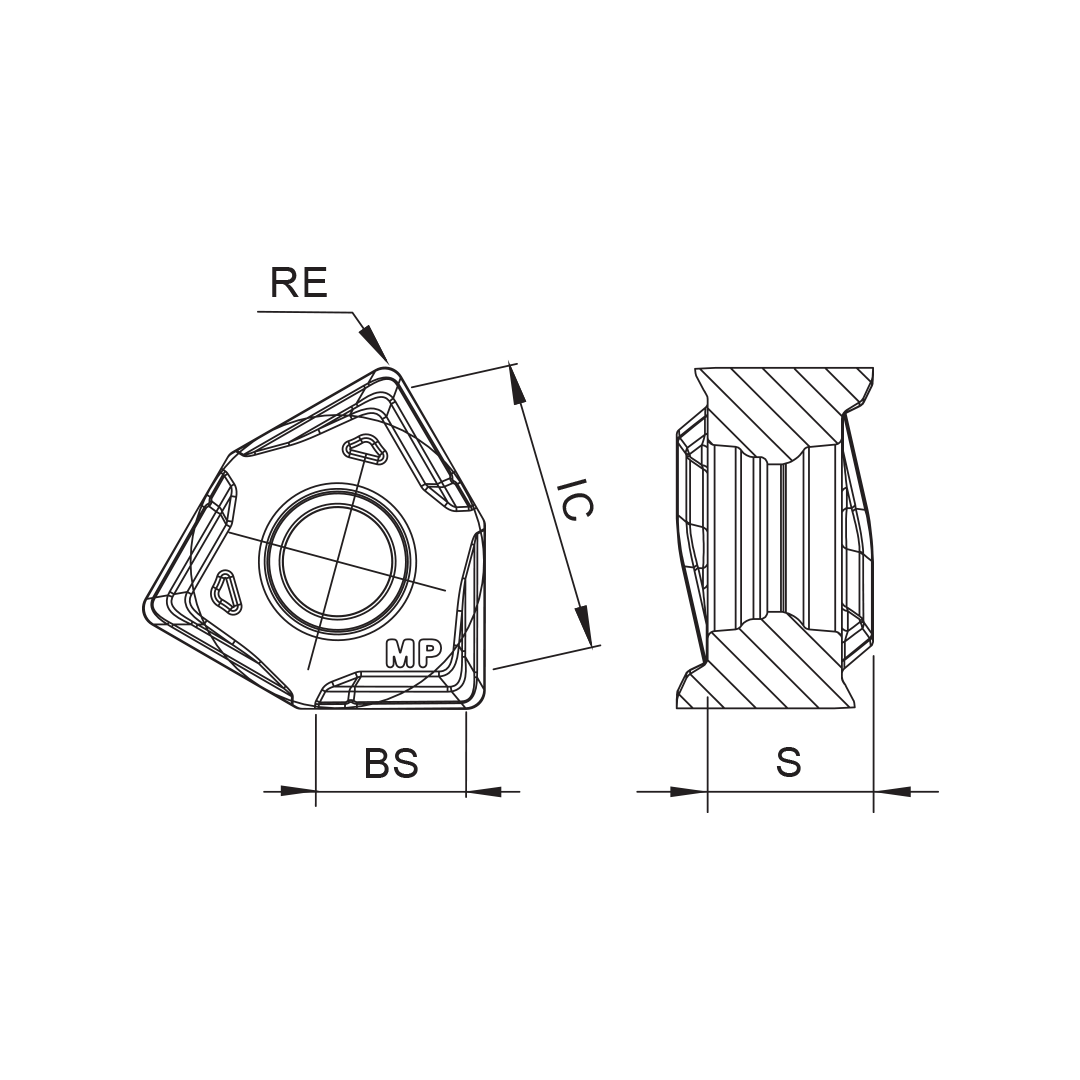

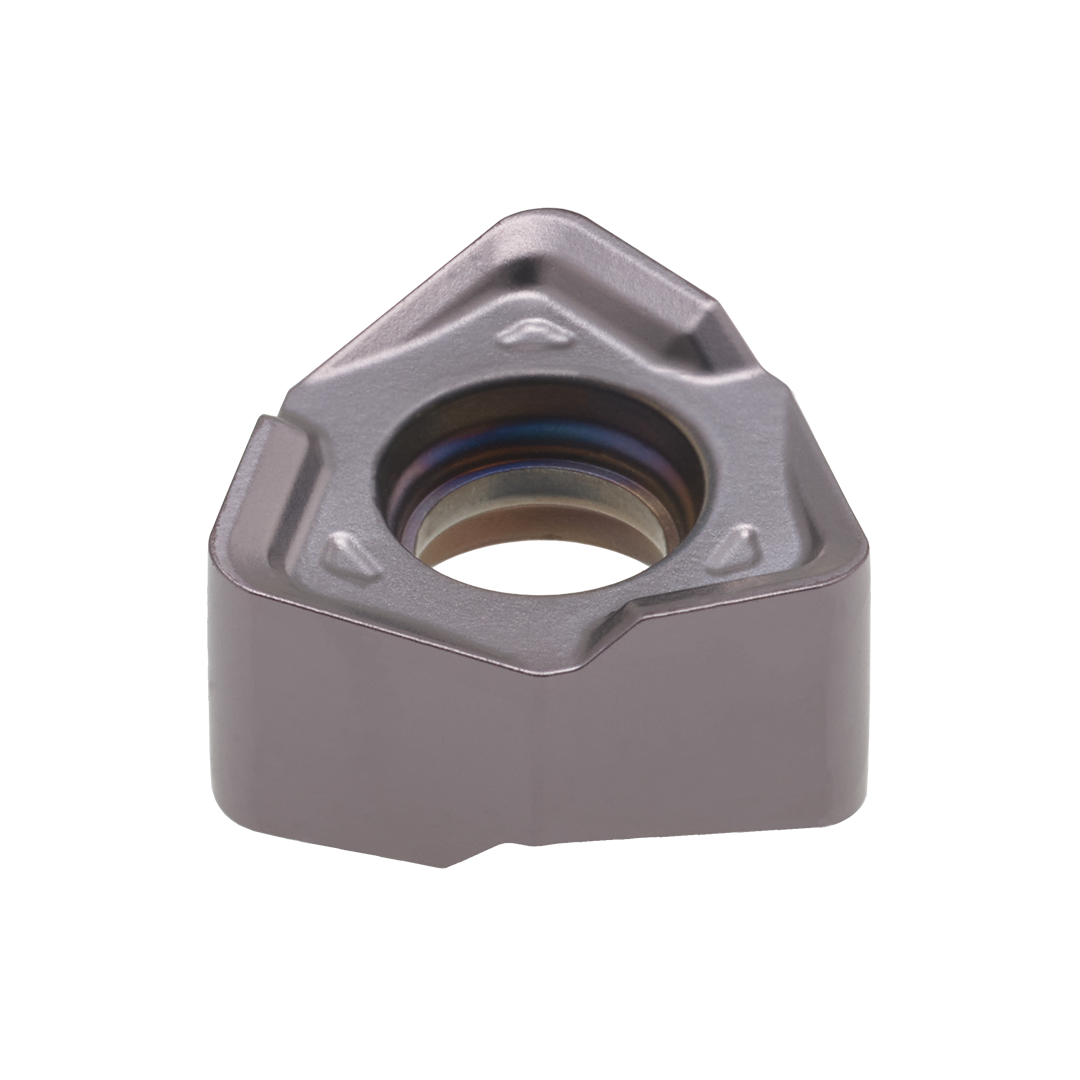

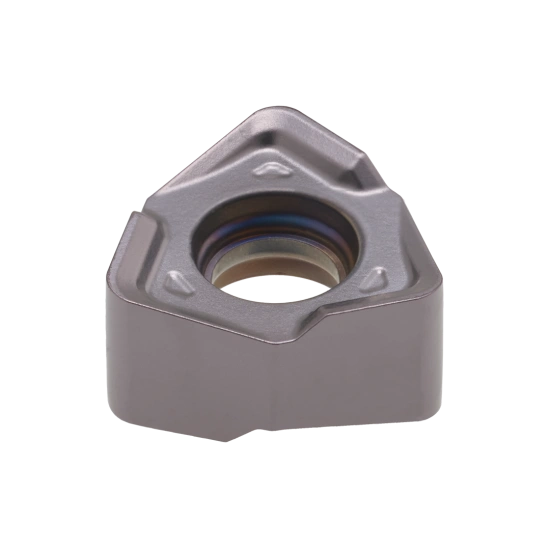

INSERT WNXT 040308 PNSR-MP PHP920

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

1113158T1 | PAST. WNXT 040308 PNSR-MP PHP920

Product data

Material classification level 1 (TMC1ISO)

Operation type (CTPT)

Shoulder Milling

Cutting edge count (CEDC)

Inscribed circle diameter (IC)

6.7 mm

Insert shape code (SC)

Corner radius (RE)

0.8 mm

Hand (HAND)

Grade (GRADE)

PHP920

Insert thickness (S)

3.36 mm

Wiper edge length (BS)

1.8 mm

Chip breaker manufacturer's designation (CBMD)

Fixing hole diameter (D1)

0.1457 mm

Tolerance class insert (TCINS)
